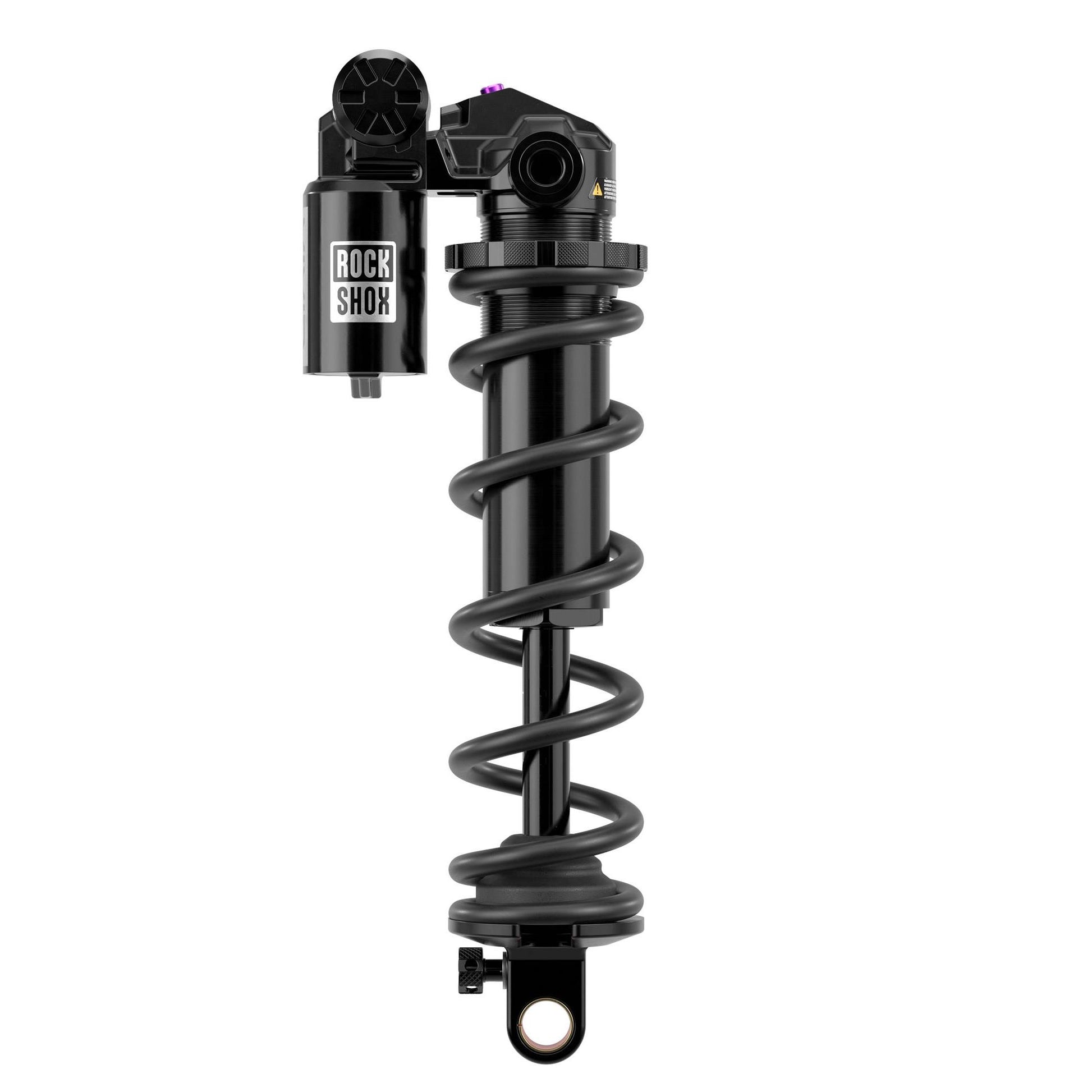

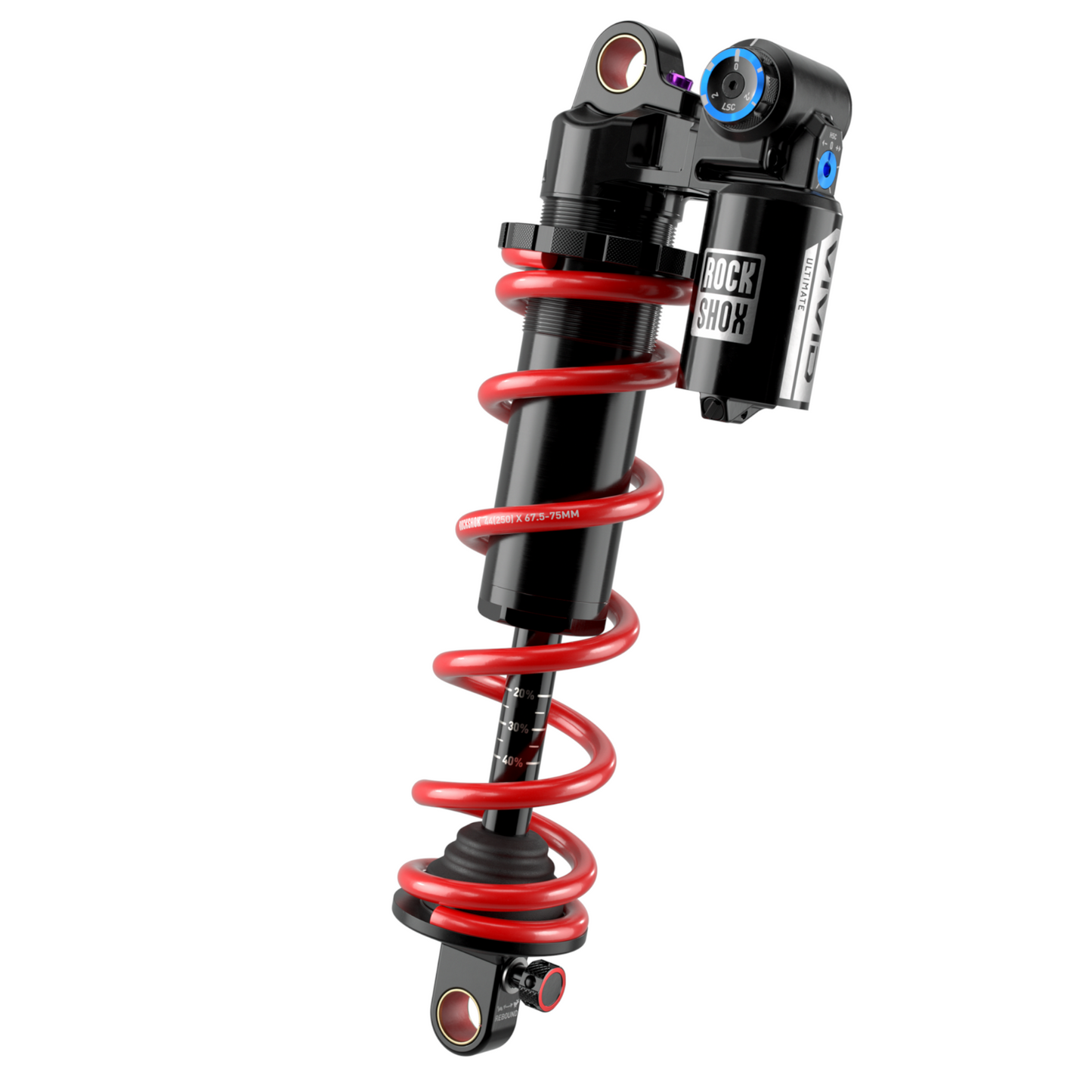

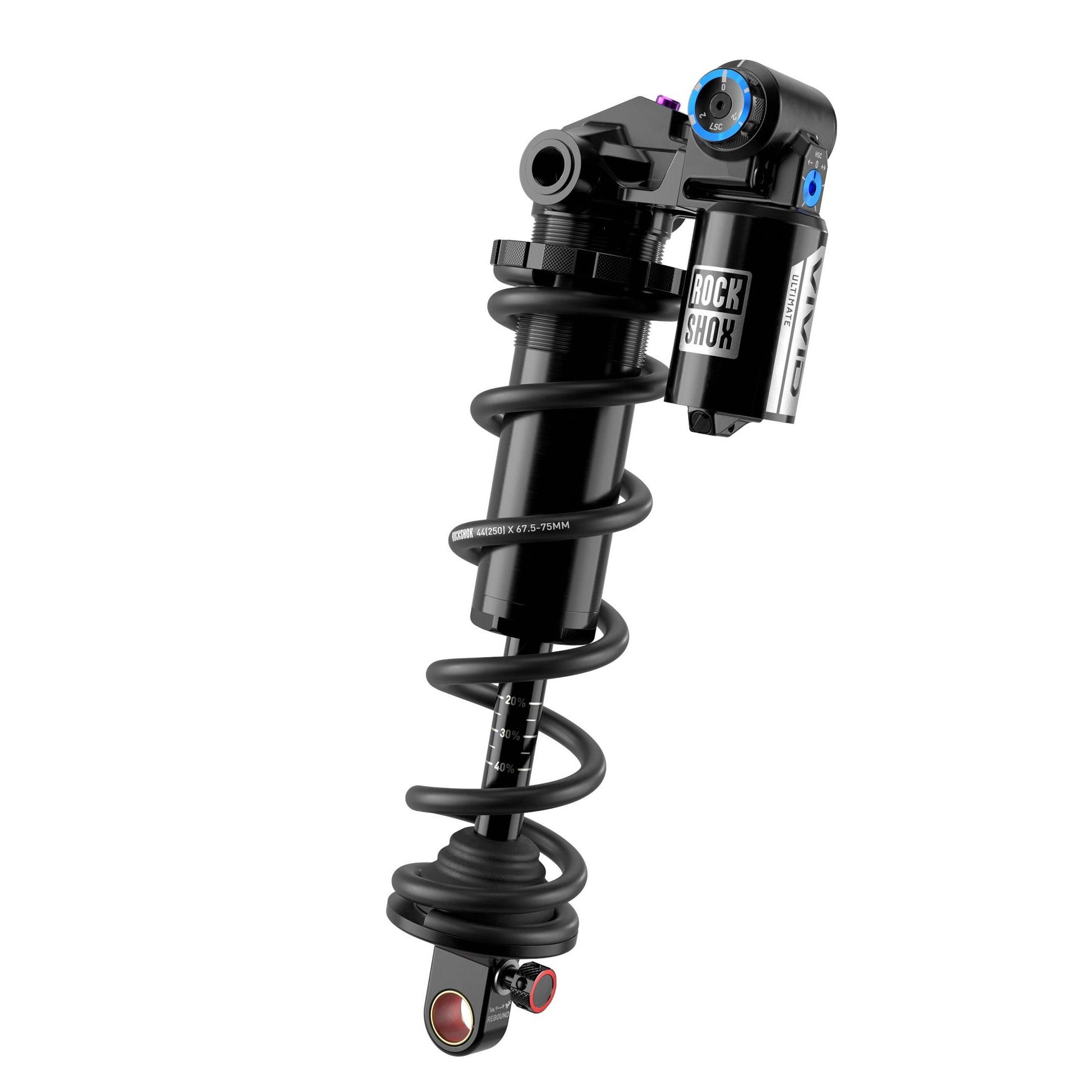

RockShox Rear Shock Vivid Coil DH Ultimate RC2 2027 without tuning

Springs are not included and will need to be purchased separately. View our range of springs here. You can access our free Spring Calculator here.

Mounting Hardware will need to be purchased separately.

Out The Box

If you would like a custom tuned shock, click here.

This shock will be supplied as standard from Rockshox. We'll test function and check for any external issues before dispatch, but we won't include any tuning or setup.

Please use the Rockshox Trailhead app for suggested setup. We can't offer our usual level of setup support with this in standard spec, due to limitations in the design.

Description

There’s a reason riders continue to trust coil—the feel is unmistakable. Supple off the top, supportive through the mid-stroke and confidently controlled at the end thanks to Adjustable Bottom-Out, coil delivers unwavering consistency and predictability. Engineered to work as a system with your fork and Charger 3.2 damper, the RC2 damper introduces new main-piston compression tunes for strong mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear and easy to communicate. Distilling decades of coil dominance into a shock built for modern enduro, E-MTB and downhill bikes, Vivid Coil Ultimate brings the unmistakable heritage of coil into a new era of performance.

Features

• RC2 damper with wide, usable LSC and HSC adjustment ranges without cross-talk
• Numbered Compression adjuster for intuitive damping setup starting at “0”
• Base valve with 40% reduction in IFP forces for maximum suppleness and traction
• Main-piston compression tunes matched to Charger 3.2 for confident mid-stroke support

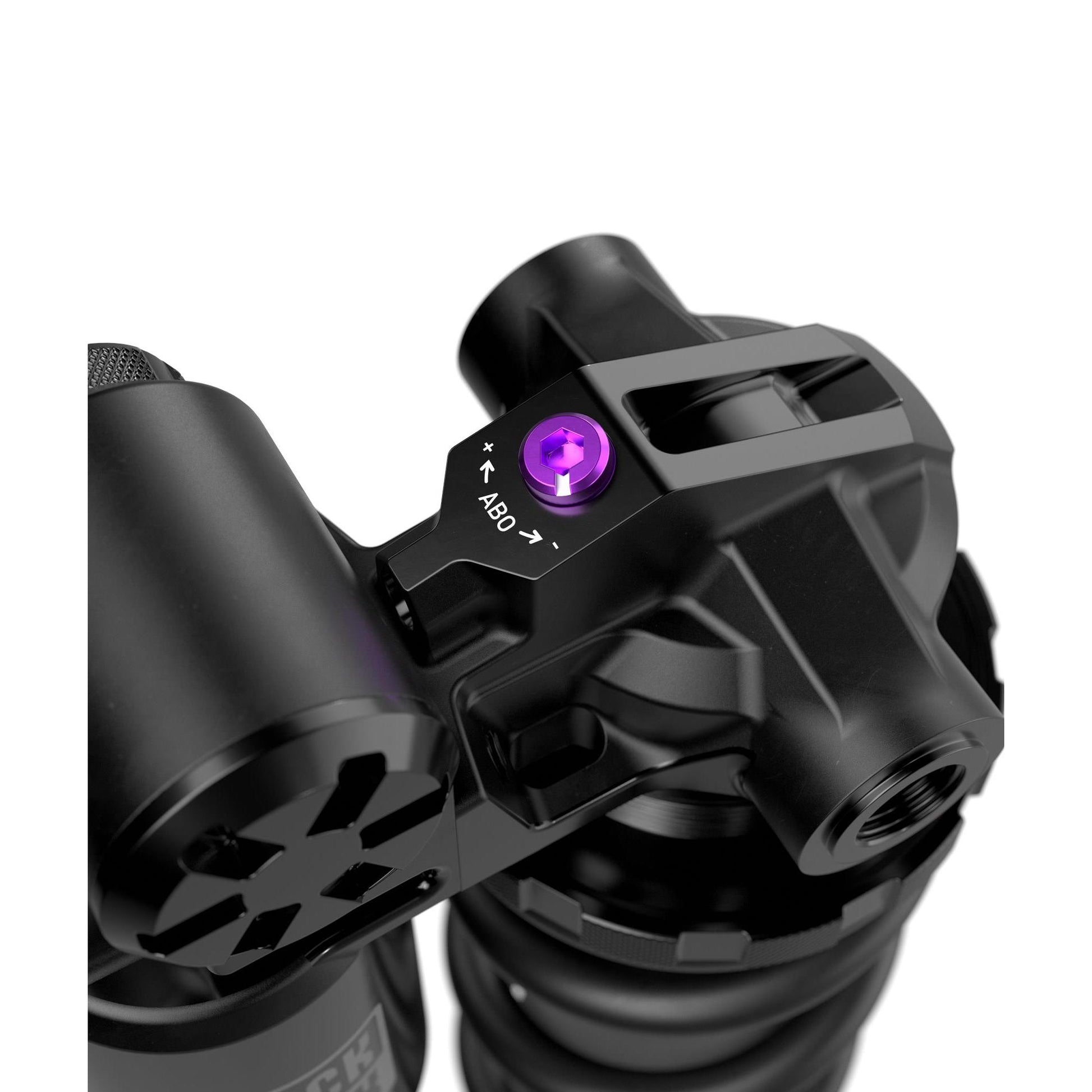

• Adjustable Bottom-Out (ABO) with five end-stroke compression settings
• Removable Rebound knob doubles as HSC and ABO adjuster
• 20 clicks of Rebound adjustment with uniform curves and broad rider-weight range
• 8×30 bearing adapter available for all standard eyelets (upgrade kit)

Specifications

• Damper type: RC2 adjustable hydraulic bottom-out
• Rebound tune: R55
• Compression tune: C34
• Lockout force: V5
• Shaft eyelet: No Bushing, Standard
• Body eyelet: Standard, Trunnion
• E-bike approved: Yes
• Bottom-out system: Externally Adjustable Bottom-Out

Delivery

It will take approx. 5 working days to dispatch your order, as the shock needs to go through the workshop. We'll confirm a dispatch date within 1 working day of you placing your order.
