Rockshox

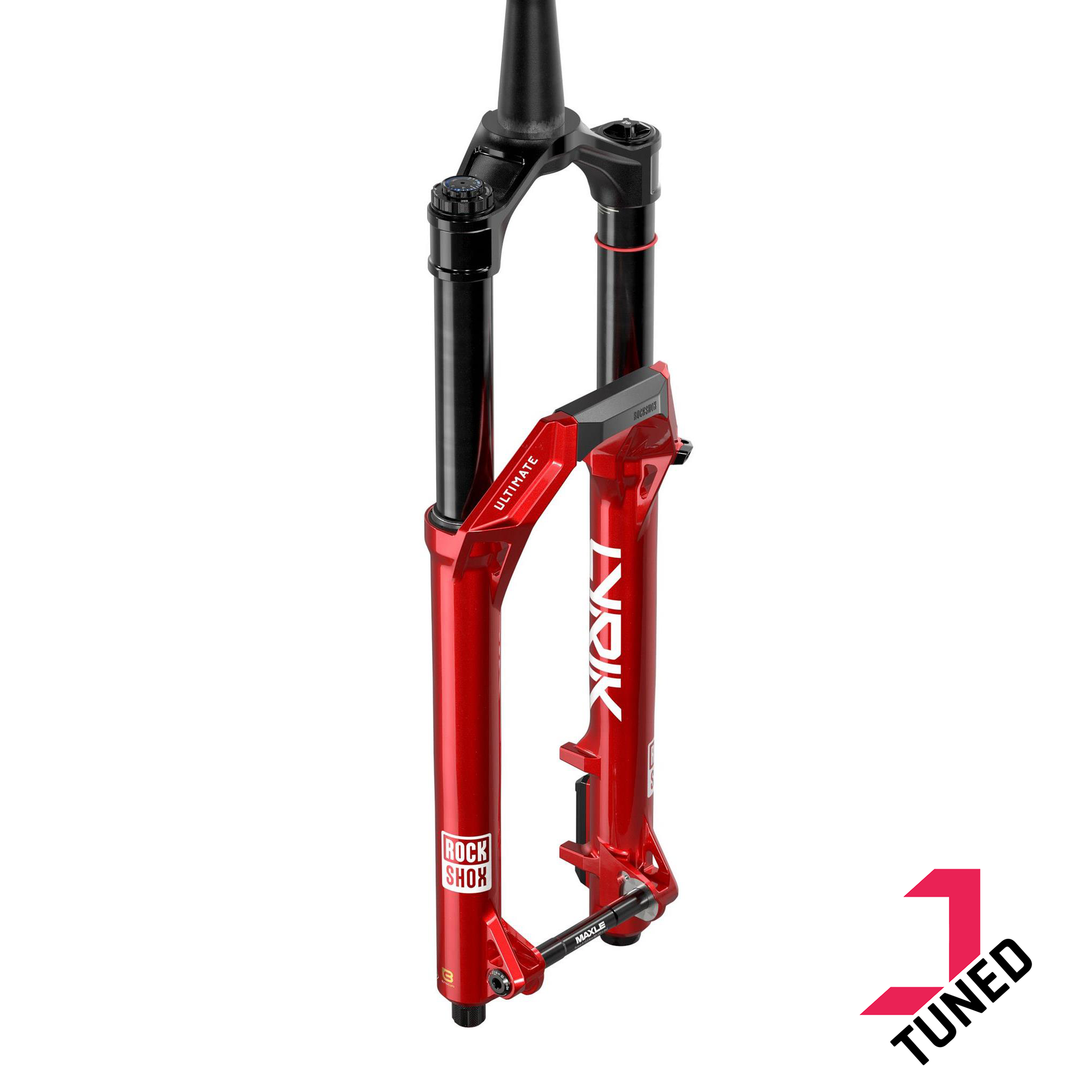

Rockshox Lyrik Ultimate Charger 3.2 RC2 E1 Tuned
Rockshox Lyrik Ultimate Charger 3.2 RC2 E1 Tuned
SKU:RSF1271000
Please get in touch for stock availability.
WPS Podium Piston Kit with Custom Tuning included.
For just the cost of the Piston Kit, with free fitting, we'll take your new fork to the next level! Here's more about the Piston Kit...
Podium Piston Kits - better flow, better performance!
High flow piston and shim tuning kit to give you more grip, more control and ultimately, faster segments!
CNC-machined aerospace-grade aluminium and hard anodised piston, along with high-grade valving shims and an uprated IFP spring.
As standard, these dampers have a base valve piston that preloads the shim stack. This makes the transition between the LSC oil flow and the piston oil flow feel harsh, due to a sharp rise in damping. This piston kit doesn't preload the shim stack, giving a much smoother transition, allowing the damper to take control of the impact, rather than transfer it through to you and the bike.
The design allows us the ability to create much more support for the rider, while the high-flow design still allows the damper to open up and take those harsh impacts.
We offer a calculated tuning service – using endless data acquired from hours of testing and data logging, we can make calculated and informed decisions on what settings, re-valving and modifications are suitable for you. Your suspension will be thoroughly tested with our dyno facilities and tailored to you and your riding style.
Find Custom Tuning information here
After a fork without tuning? Click here.
Description
"Lyrik Ultimate is built for riders who want a fork that remains efficient on the climb yet uncompromising on demanding descents. The lightweight chassis stays precise and composed through rough terrain while maintaining the efficiency needed for long days on the trail.
The LinearXL air spring delivers a coil-like ride feel with a supple initial stroke and supportive mid-stroke, while Adjustable Bottom Out (ABO) provides tunable end-stroke control for harder impacts. Exclusive to Ultimate models, ButterWagonTech ensures a constant supply of oil to the bushings, reducing friction and maintaining smooth performance throughout the service interval. The Charger 3.2 RC2 damper with ButterCups technology adds independent high- and low-speed compression adjustment and reduces high-frequency vibration, allowing riders to fine-tune suspension behaviour while improving comfort on rough trails"
Key Features
• LinearXL air spring provides a consistent ride feel with Adjustable Bottom Out control
• ButterWagonTech maintains constant lubrication of bushings for reduced friction
• Charger 3.2 damper with updated rebound and compression tuning for precise suspension control
• Numbered compression control bezel allows intuitive suspension adjustments
• ButterCups technology reduces high-frequency trail vibration to minimise rider fatigue
• SKF low-friction wiper seals improve durability and suspension smoothness
• Maxima 920 blended 15w suspension fluid reduces internal friction
• Integrated short fender mount with Lyrik Integrated Fender included
• Updated graphics package available in Electric Red or Gloss Black finishes
Specifications
Wheel size: 29" & 27.5"
Travel: 140mm, 150mm, 160mm, 170mm
Damper type: Charger 3.2 RC2 with ButterCups
Fork offset: 44mm (27.5"), 44mm (29")
Colour: Electric Red – Gloss, Gloss Black
Axle: 15x110mm BOOST TC
Upper tube: 35mm tapered wall aluminium
Volume reducer: 0/3 tokens, 0/4 tokens, 1/5 tokens
Spring: Linear XL with ButterCups
Crown OD: 59mm
Bottom out: Externally Adjustable Bottom Out
Compression tune: C5
Rebound tune: R55
Delivery
Links
Servicing
| Action | Interval |
| Clean and Lubricate | Every Ride |
| Inspect for scratches to stanchions, dents and other signs of wear | Every Ride |
| Check headset, axle and brake torque | Every Ride |
| Oil Bath Replacement | 50hrs use |
| Wiper Seal Replacement | 50hrs use |
| Full Service | Every 200hrs of use / 12 months whichever comes first. |
