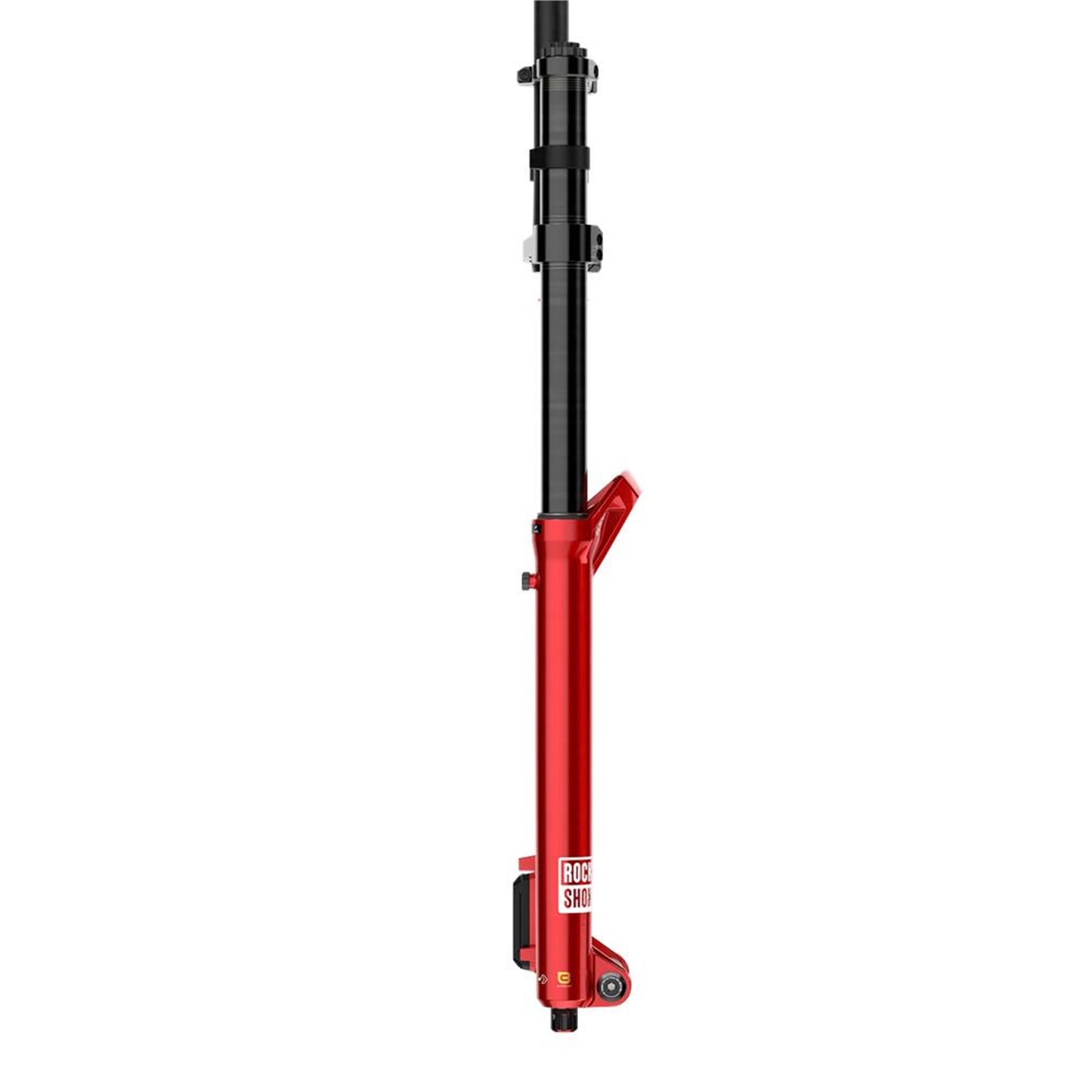

RockShox BoXXer Ultimate Charger 3.2 D2 Without tuning

No Custom Tuning

This fork will come to you with Rockshox's standard aftermarket tune. We will have a tuning option for you soon.

We will give the fork a full inspection before sending though. We'll make sure the correct volume of oil and grease has been used in the damper, air spring and lower legs, as well as addressing any assembly issues, like tight bushings. This is included in the price.

We won't provide any setup support with this product, so please refer to the Rockshox Trailhead App for setup recommendations.

Description

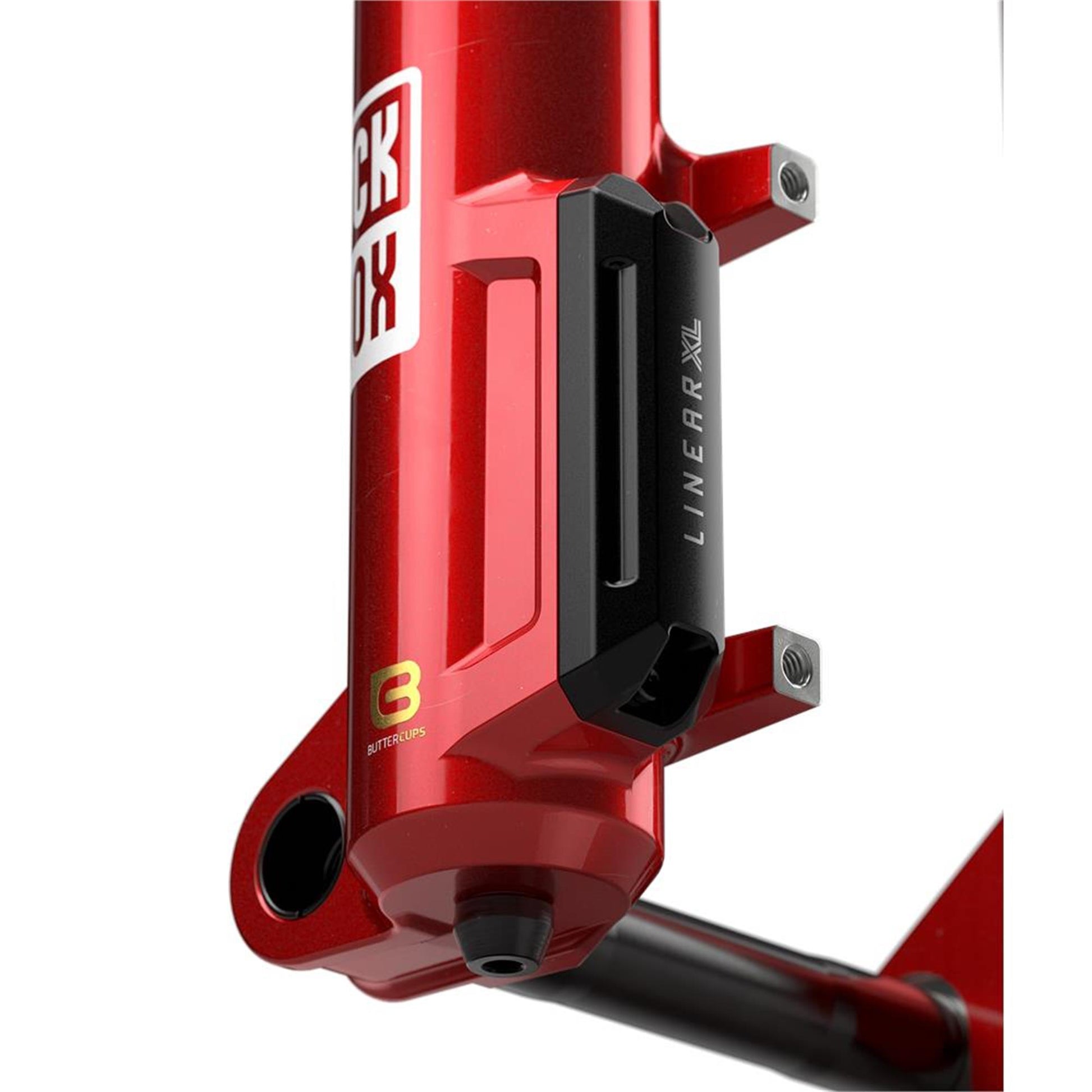

Born from racing, this BoXXer is built around one defining promise—composure. By eliminating chaos before it reaches the rider, every run delivers predictable speed, traction and control. The all-new LinearXL air spring creates a coil-like ride that stays supple off the top, supportive through the mid-stroke, and confidently controlled at the end thanks to its jounce bottom-out bumper. Exclusive to Ultimate models, ButterWagonTech keeps a constant flow of oil to the bushings to reduce friction and maintain smooth, consistent performance throughout the entire service interval. Intuitive HSC/LSC controls on the Charger 3.2 damper with ButterCups make setup easy to understand and easy to communicate. The result is so composed you hardly notice the increase in speed—until the clock confirms it.

Key Features

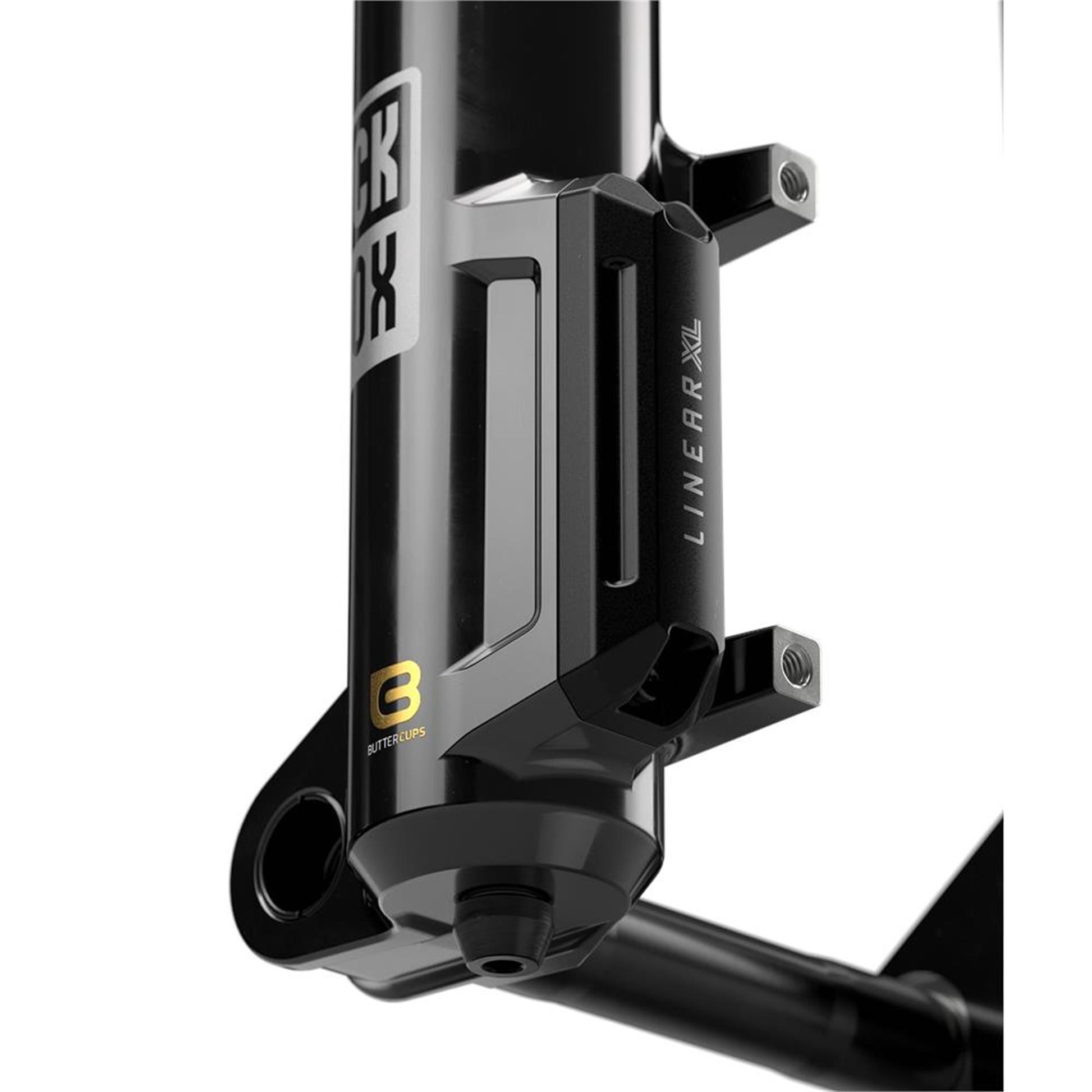

• LinearXL air spring with coil-like feel and jounce bottom-out control
• ButterWagonTech ensures continuous lubrication for reduced friction and consistent smoothness
• Charger 3.2 damper with matched Rebound and Compression tunes and near-silent performance

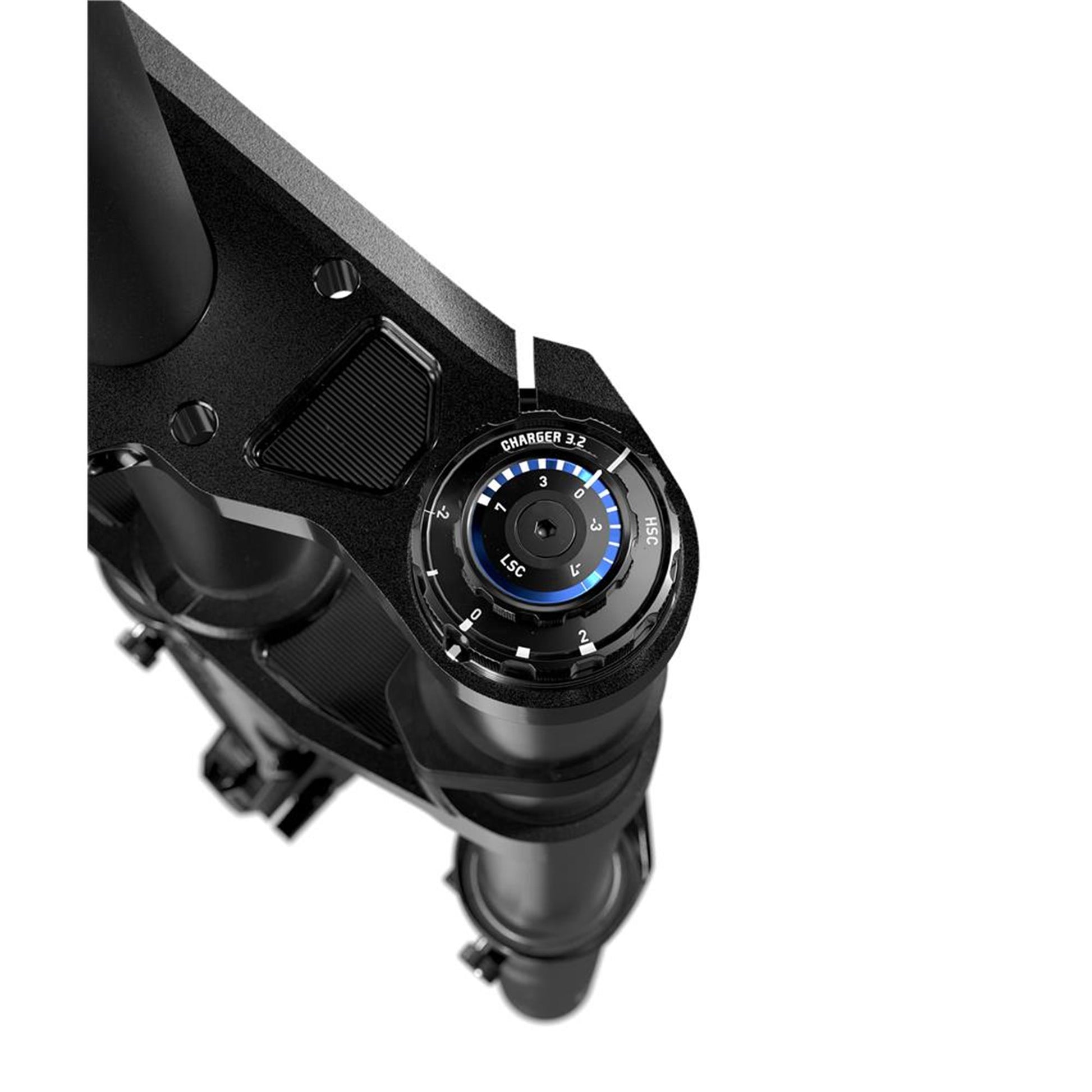

• Numbered Compression control bezel for intuitive setup
• ButterCups reduce high-frequency trail chatter by 20% to limit hand and arm fatigue
• Low-grab SKF wiper seals for smoother action and longer-lasting performance
• Maxima 920 blended 15W oil to reduce fork friction
• Bolt-on fender compatibility with full front/rear coverage; BoXXer Bolt-On Fender included
• Updated minimalist graphics package
• Available in Electric Red or Ultimate High Gloss Black

Specification

Wheel size: 29"
Travel: 200 mm
Damper type: Charger 3.2 RC2 with ButterCups
Fork offset: 44 mm (27.5"), 48 mm (27.5"), 48 mm (29"), 52 mm (29")

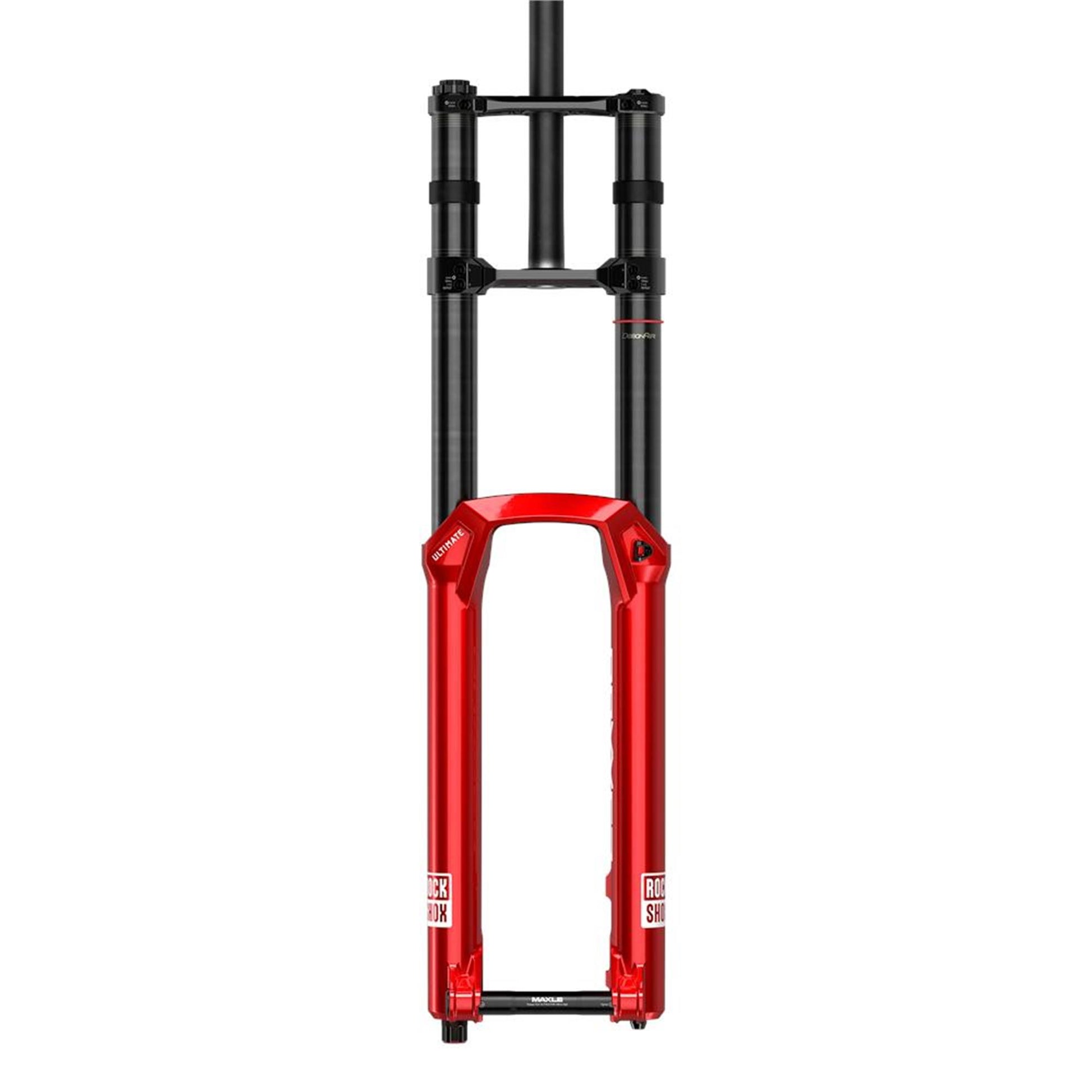

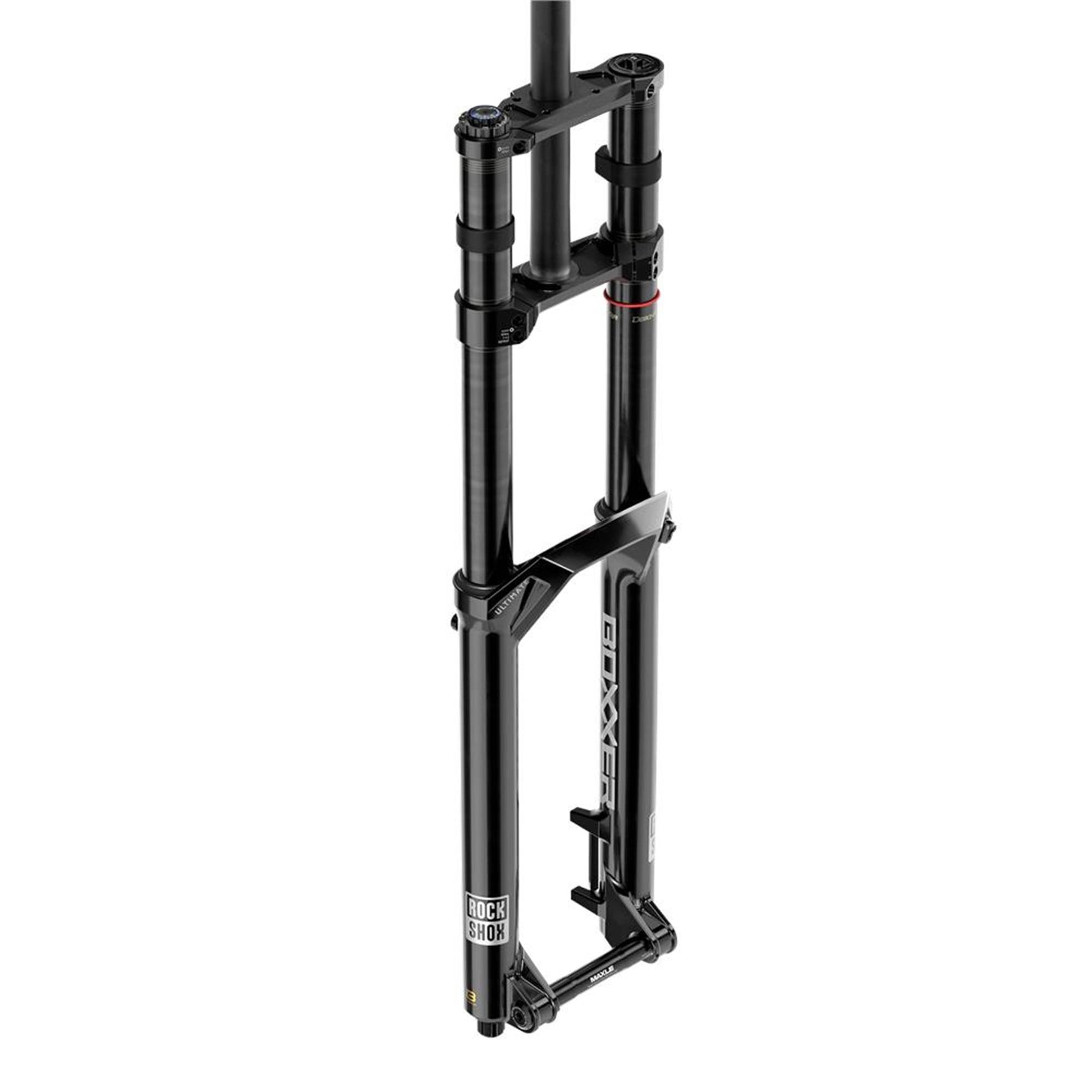

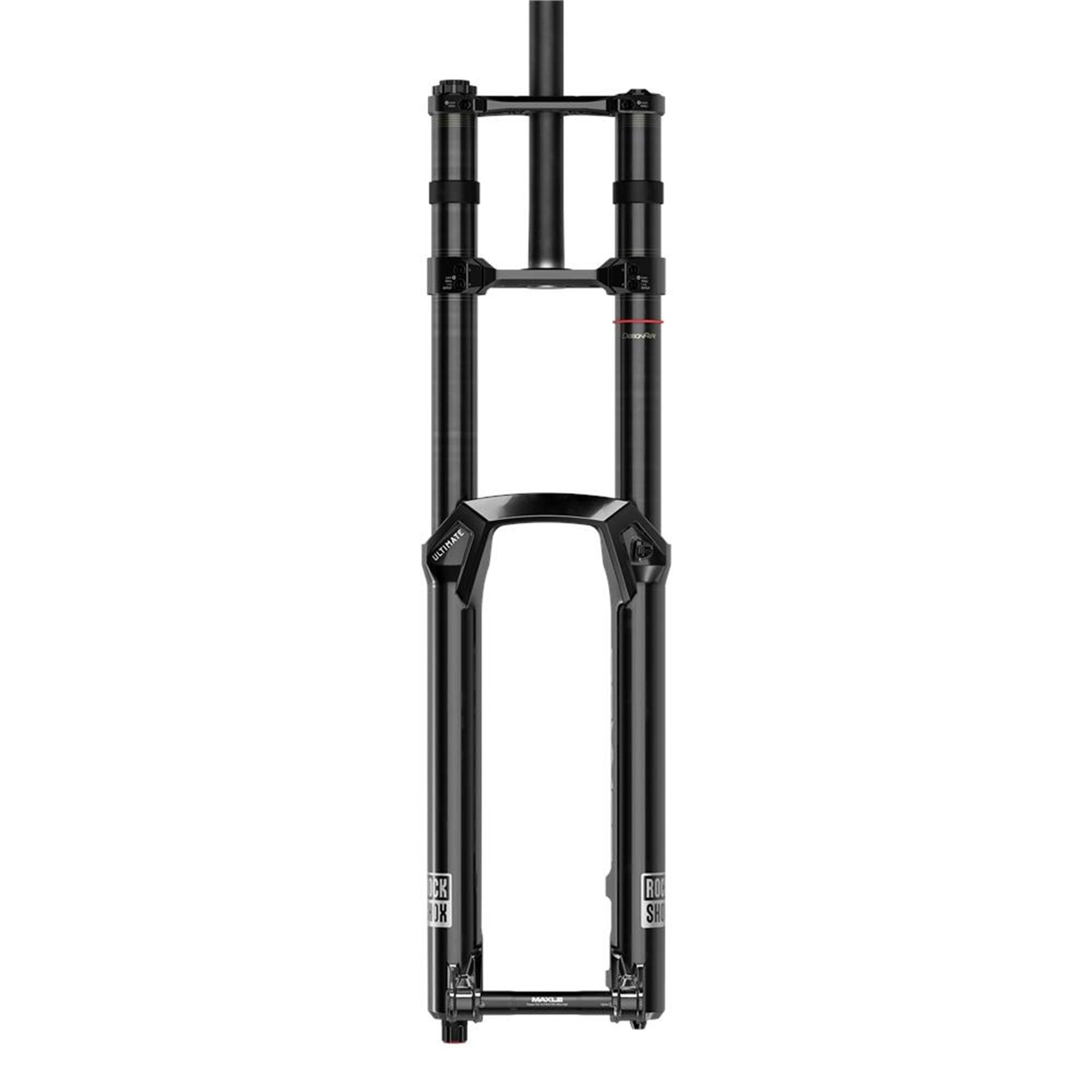

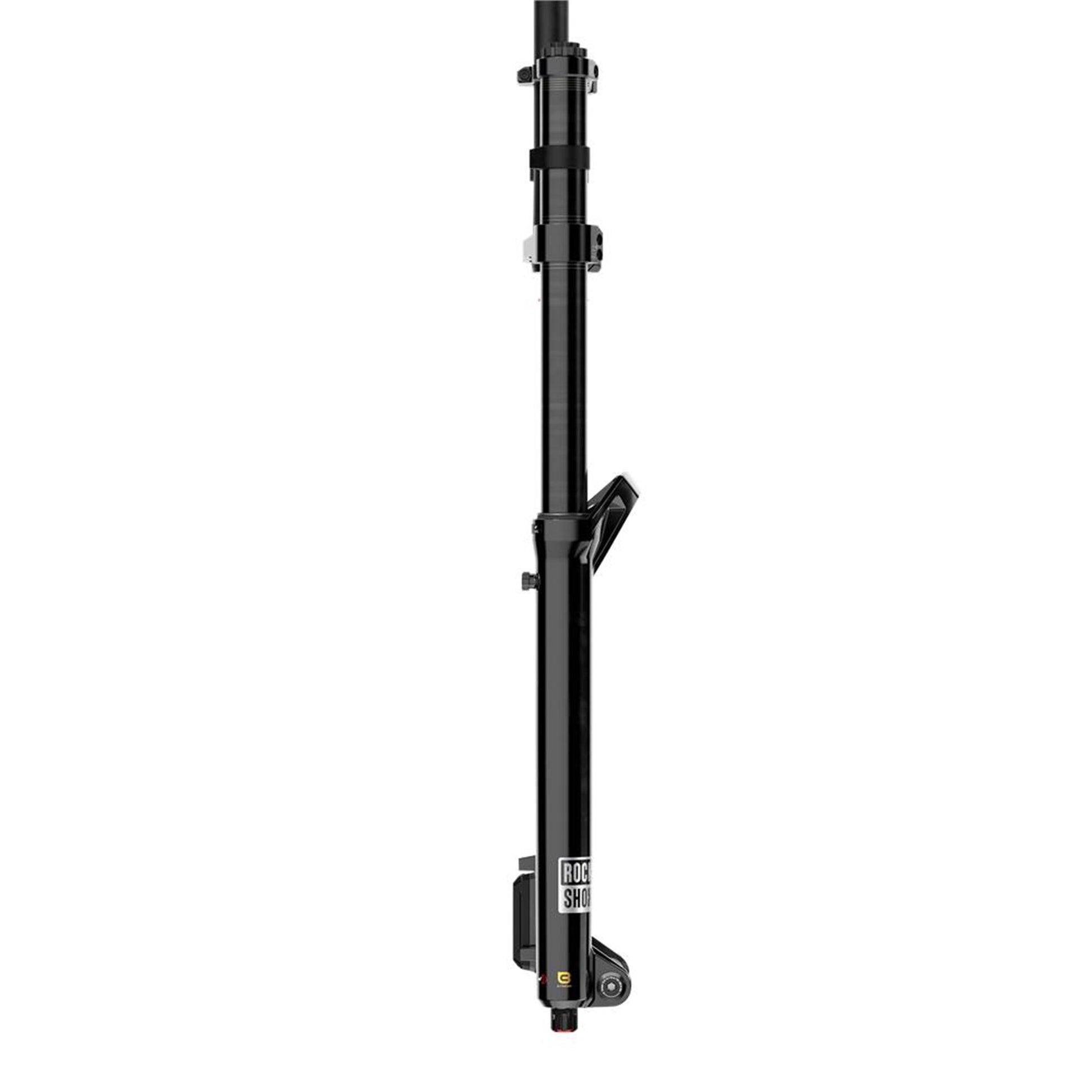

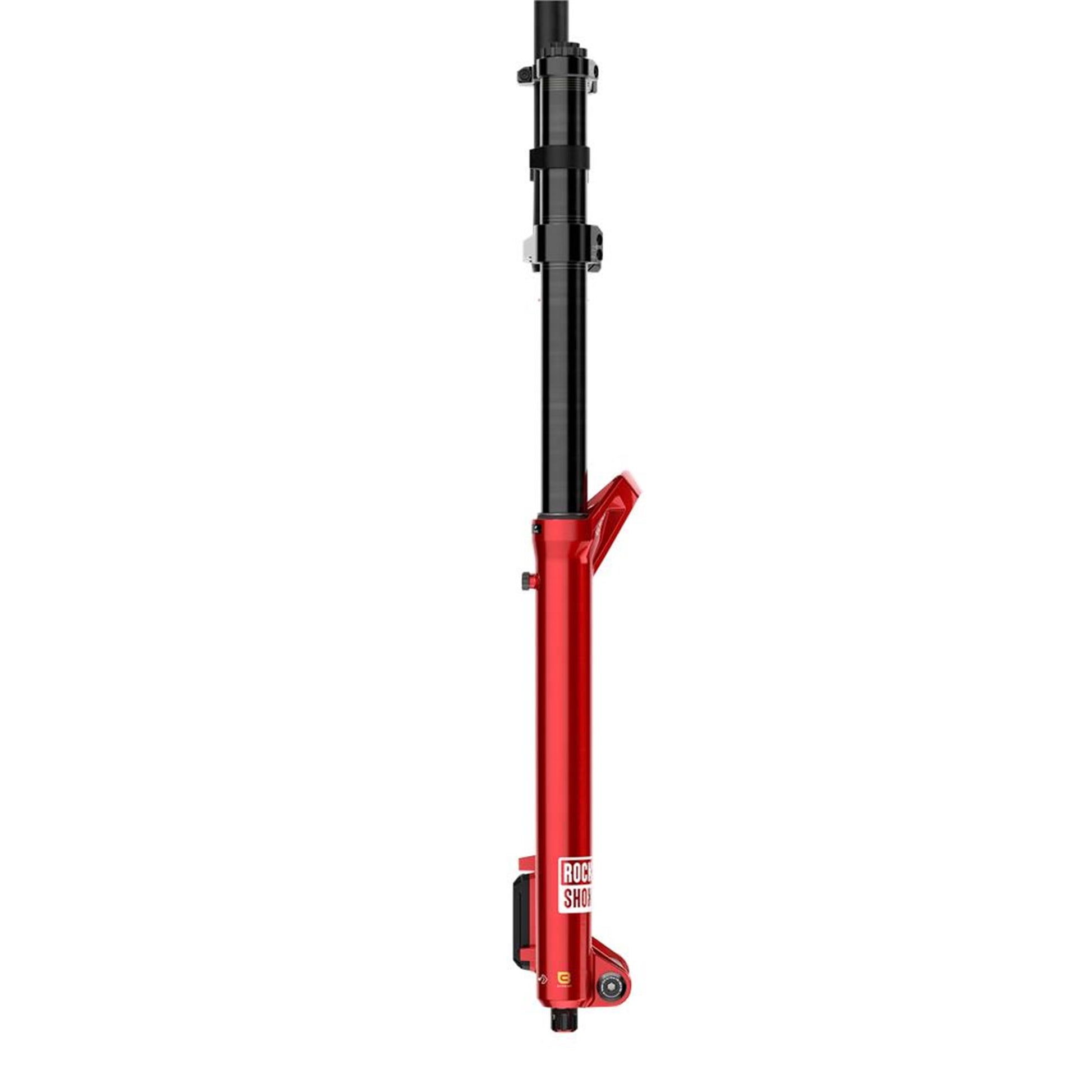

Colour: BoXXer Electric Red (Gloss), Gloss Black
Axle: 20×110 mm Boost
Upper tubes: 38 mm aluminium
Volume reducer: 0/6 Tokens
Spring: DebonAir+ with ButterCups, Linear XL with ButterCup
Crown OD: 42 mm
Compression tune: C5
Rebound tune: R55

User Manual

Service Pricing

Service kits

Service Intervals

Action	Interval
Clean and Lubricate	Every Ride
Inspect for scratches to stanchions, dents and other signs of wear	Every Ride
Check headset, axle and brake torque	Every Ride
Oil Bath Replacement	50hrs use
Wiper Seal Replacement	50hrs use
Full Service	Every 100hrs of use / 12 months whichever comes first.
