Ohlins

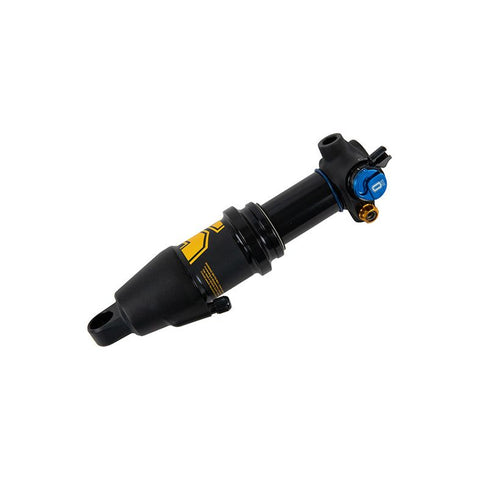

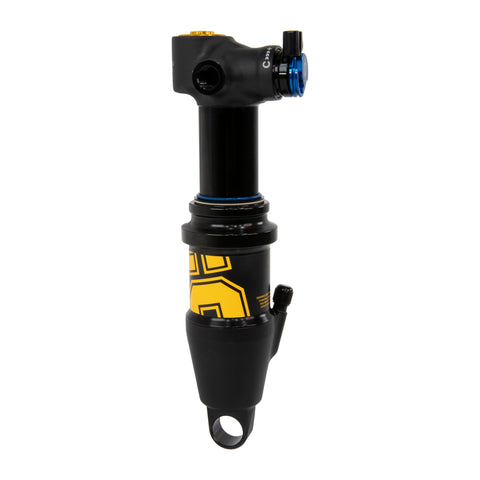

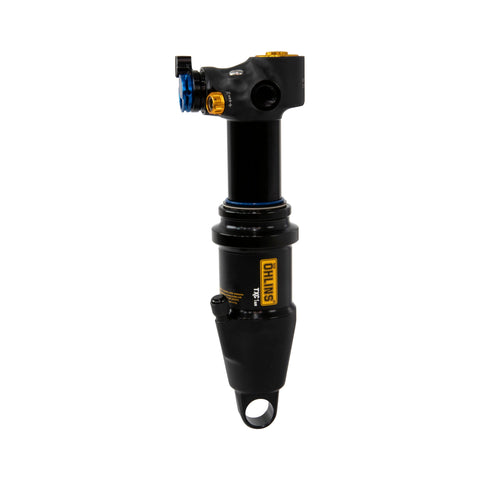

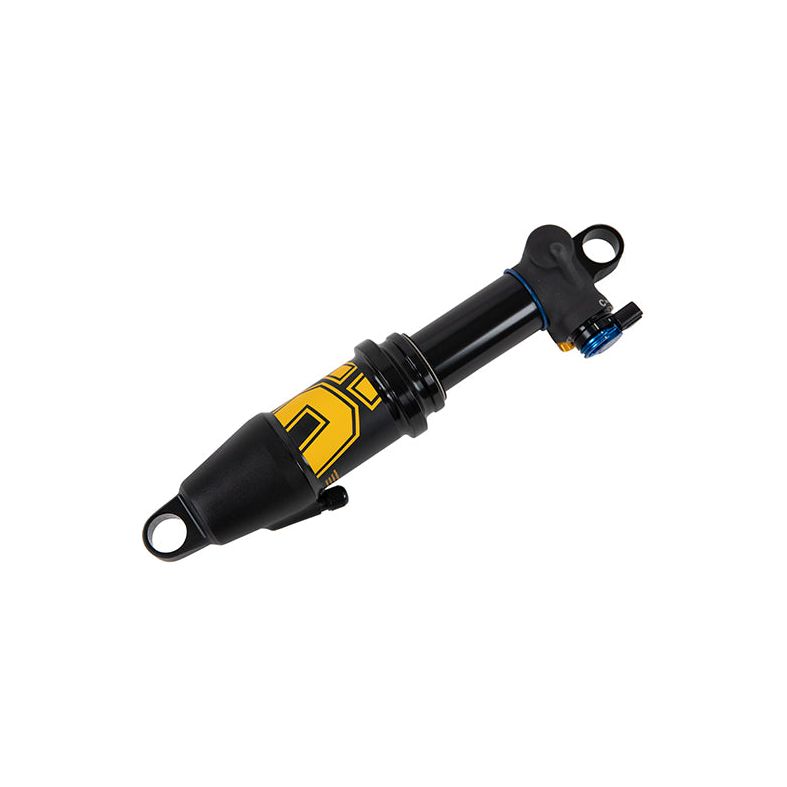

Ohlins TXC1 Air

Ohlins TXC1 Air

SKU:MTBM 2311

Regular price £616.00
Regular price Sale price £616.00
Sale Sold out
Tax included.
Free Tuning and Mount kits!

Custom Tuning included (worth £85)

We offer a calculated tuning service – using endless data acquired from hours of testing and data logging, we can make calculated and informed decisions on what settings, re-valving and modifications are suitable for you. Your suspension will be thoroughly tested with our dyno facilities and tailored to you and your riding style.

Find Custom Tuning Information Here

Free Mount Kits:

Mounting Hardware supplied when purchased, (worth up to £35).



Specs
  • Hydraulics optimized for XC racing with serial shim stacks.
  • 3 ride modes developed and tested to save seconds on the racetrack.
  • Rider-friendly volume spacer system to adjust air spring progressiveness.
  • Reducers can easily be installed to adjust stroke.
  • Lighter, slimmer, and more progressive.
  • Remote connection, compatible with systems pulling 7.5 mm of wire per click.
  • Adapter available for manual controls and systems pulling 5.5 mm of wire per click.
  • Remote lever to be purchased separately.
  • 12 clicks of rebound adjustment.
  • Available in 165/190 - 37.5/40 and 185/210 - 47.5/50.
  • Weight from 245 g.
Description
    Ohlins have developed a system aimed to conquer modern XC tracks. The system is devolved around three riding modes.
    Open, maximizing traction and control while still giving enough support for descending. The stiff chassis gives the confidence boosting precise steering found in all our MTB forks.
    Pedal, Maximizes overall efficiency. Adjusting initial movement in the damper to increase pedal efficiency, but still supple enough to allow the tyres to track the ground,  in rough terrain or technical climbs. A combination of a large negative chamber and our damper design enables the rider to carry momentum and reduce fatigue.
    Lock out, Maximizes pedal efficiency. To be used on flat terrain when little suspension is needed, like when sprinting for a victory.

    The system give the rider efficiency to be fast and traction to boost confidence on today’s technical XC tracks.

    A small and high performance shock based on TTX-technology to maximize wheel control and at the same time support pedal efficiently in more closed ride modes.
    The shock comes in two versions were TXC1Air is optimized for bikes with progressive linkage and tight fitments. It has smaller air volume, shorter stroke and comes remote enabled only (possible to rebuild to on the shock control). Shock has a rider friendly spacer and stroke reduction system with all parts supplied in the box.

    Experience the next level of precision and control with our new TXC1Air shock, purpose-built for the most extreme short-travel XC bikes. Based on Öhlins TTX damping technology, the TXC1Air provides unrivalled small bump sensitivity and wheel traction, giving you the confidence to ride faster and push the limits of your MTB.

    Thanks to its slim end-eye design, the TXC1Air is perfect for tight fitments and bikes that require a smaller air chamber. This also makes the shock lighter than its larger counterpart, the TXC2Air, which is suitable for bikes with a less progressive linkage.

    Equipped with remote-enabled controls, the TXC1Air offers three dynamic ride modes: open, pedal, and lockout. Taking advantage of both high-speed and low-speed compression, these ride modes are designed to match the ride modes of the RXC34 m.1 front fork, maximizing your performance across any terrain. Experience the ultimate efficiency while descending, pedalling, climbing, and sprinting on your bike.

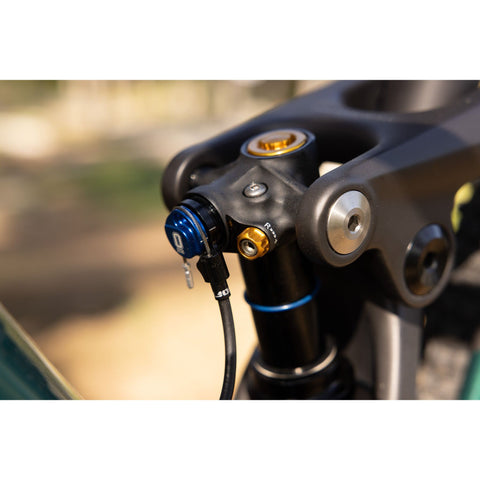

    Our remote connection is designed for 7.5 mm of wire pull per position. This means you can use the shock with remote levers from other top brands. And for those seeking even more versatility, we offer an adapter – designed for 5.5 mm of wire pull per click – enables compatibility with the DT Swiss remotes used by Team BMC Racing.

    Throughout the R&D process, we tested a number of technologies, focusing on optimal suspension performance for XCO and technical tracks. The TXC1Air incorporates Öhlins’ race proven TTX twin-tube technology for superior small bump sensitivity and enhanced traction on challenging cross-country tracks, giving you a smoother, more controlled ride every time.
    The damper design, featuring a serial shim stack, further boosts efficiency in the open mode, helping you to maintain your momentum and build speed when you’re actively pushing over natural or man-made rollers.

    As part of the Öhlins XC suspension system, the TXC1Air boasts a rider-friendly system to adjust air spring progressiveness and stroke. With our race proven setting bank, you’ll be able to fine-tune the shock to your unique riding style and bike linkage. Our new XC suspension products were developed in parallel, with the front forks and rear shocks designed to match each other for an optimal balance on the bike. Whether you’re a seasoned pro, weekend warrior, or somewhere in between, the combination of the TXC1Air and the RXC34 m.1 fork will give you a level of confidence-inspiring performance that’s equally at home on the Olympic stage and your local trails.

    Links
    Servicing
    Action Interval
    Clean and Lubricate Every Ride
    Inspect for scratches to stanchions, dents and other signs of wear Every Ride
    Check bushing and mounting bolt torque Every Ride
    Air Can Service Every 100hrs of use / 12 months whichever comes first.
    Full Service Every 100hrs of use / 12 months whichever comes first.
