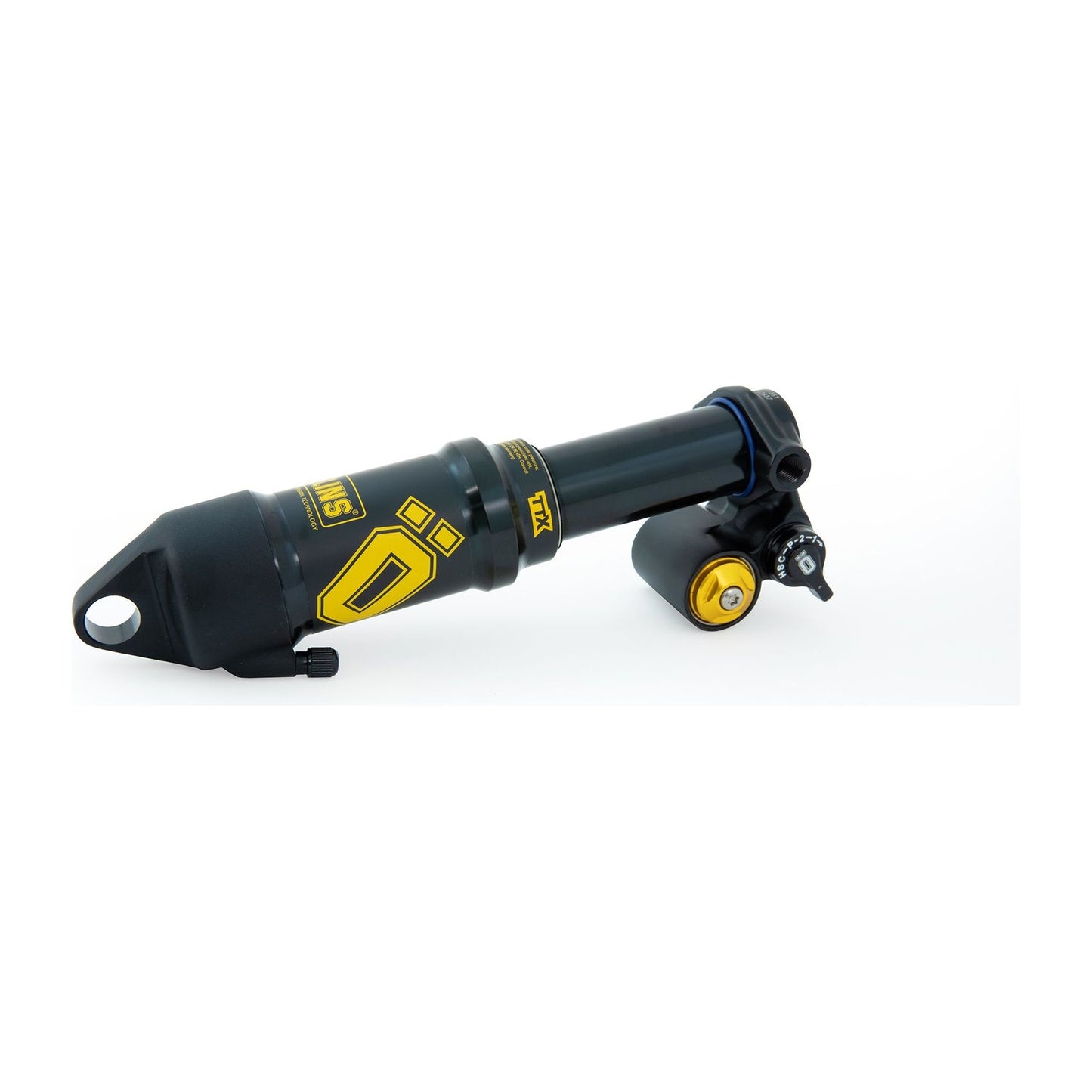

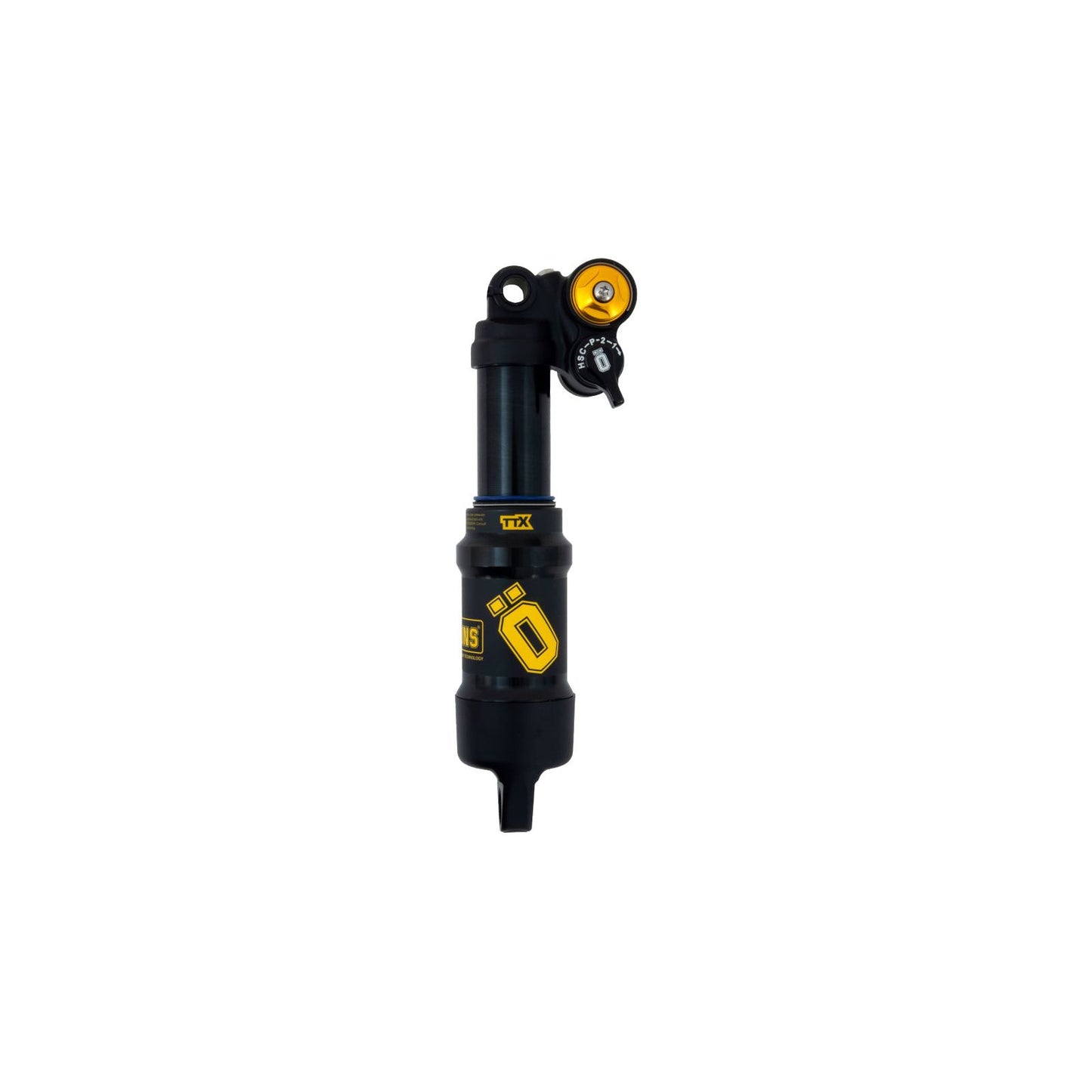

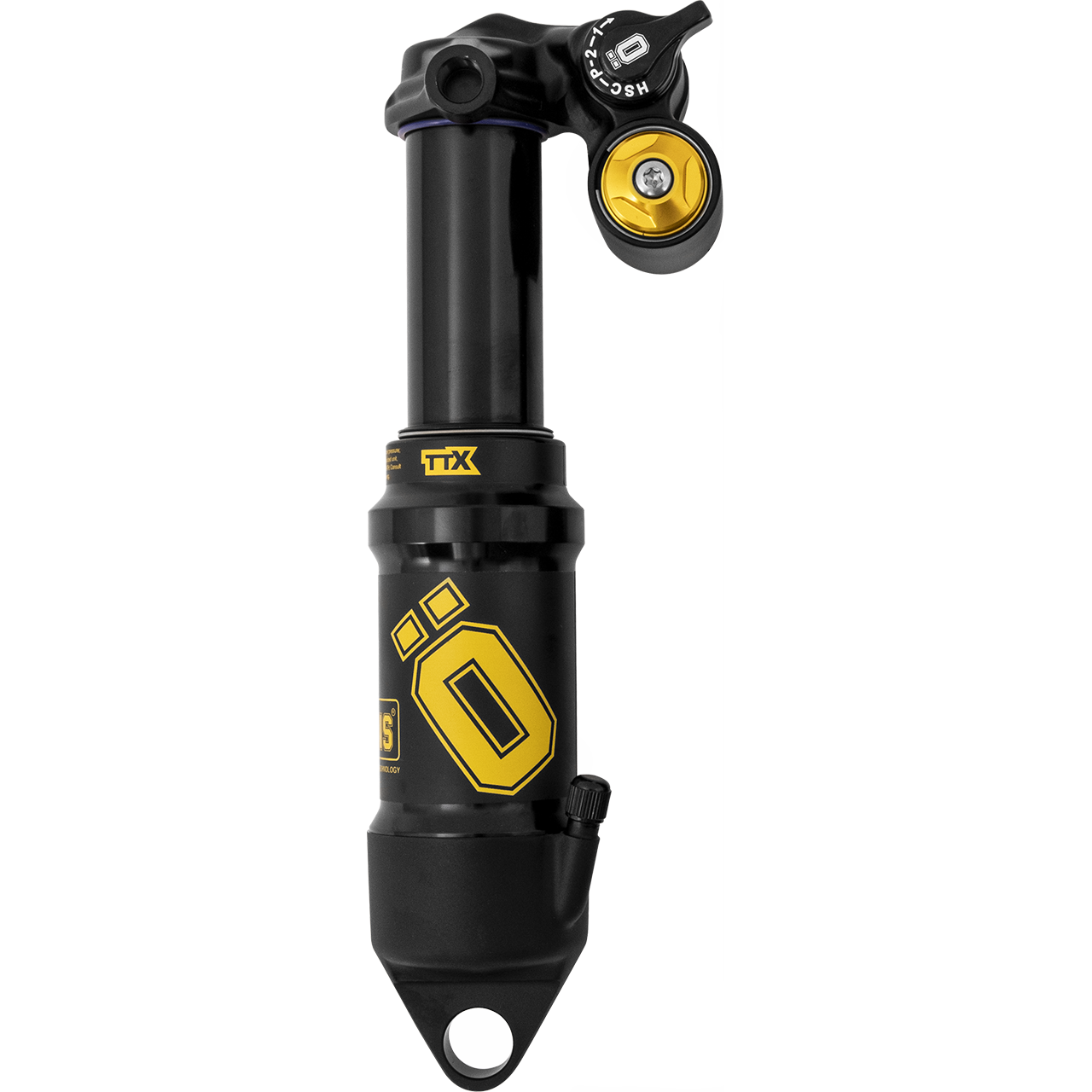

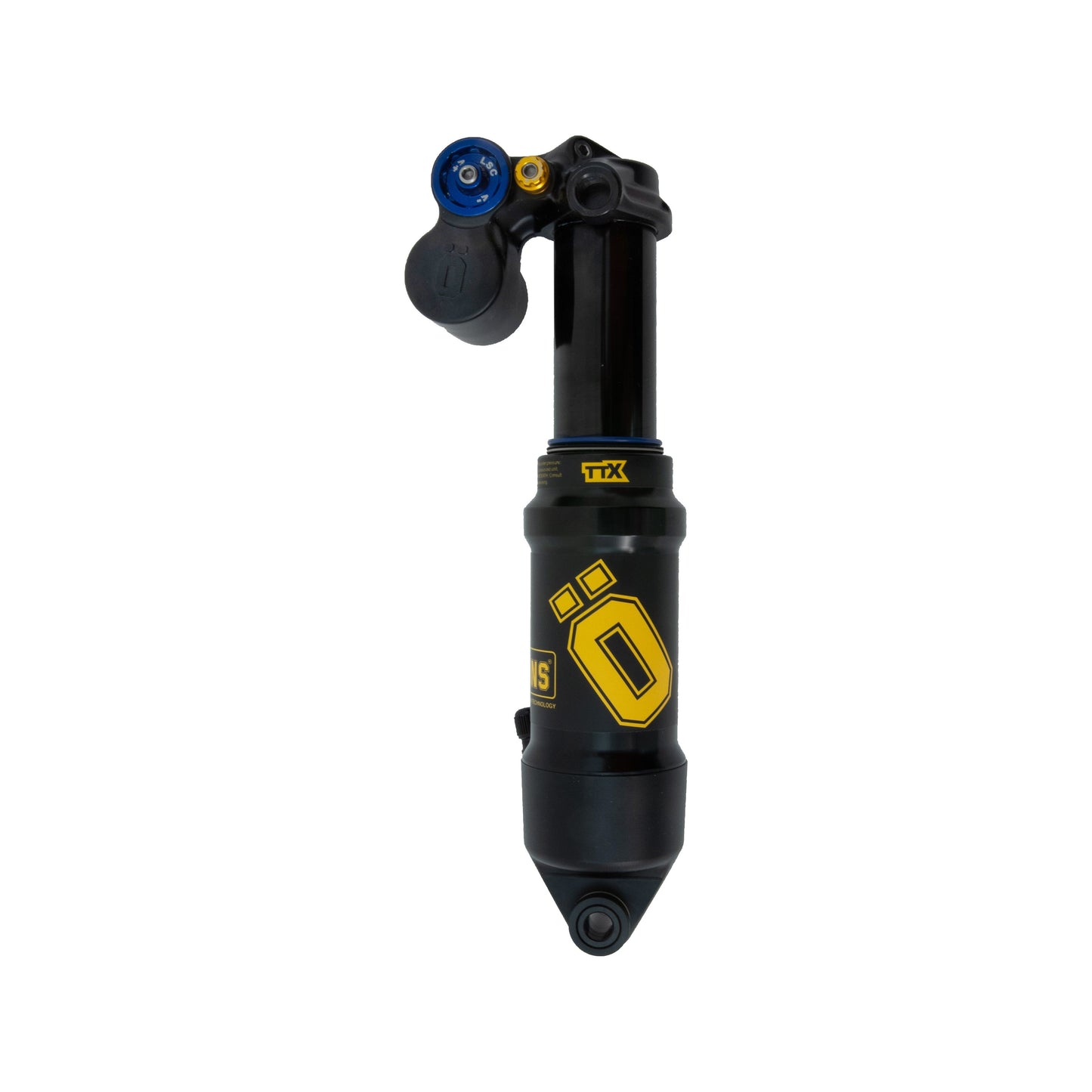

Ohlins TTX1 Air Shock

  • Sale
  • £763
MTBM_1950
To help fill out this form, please read our guide here.

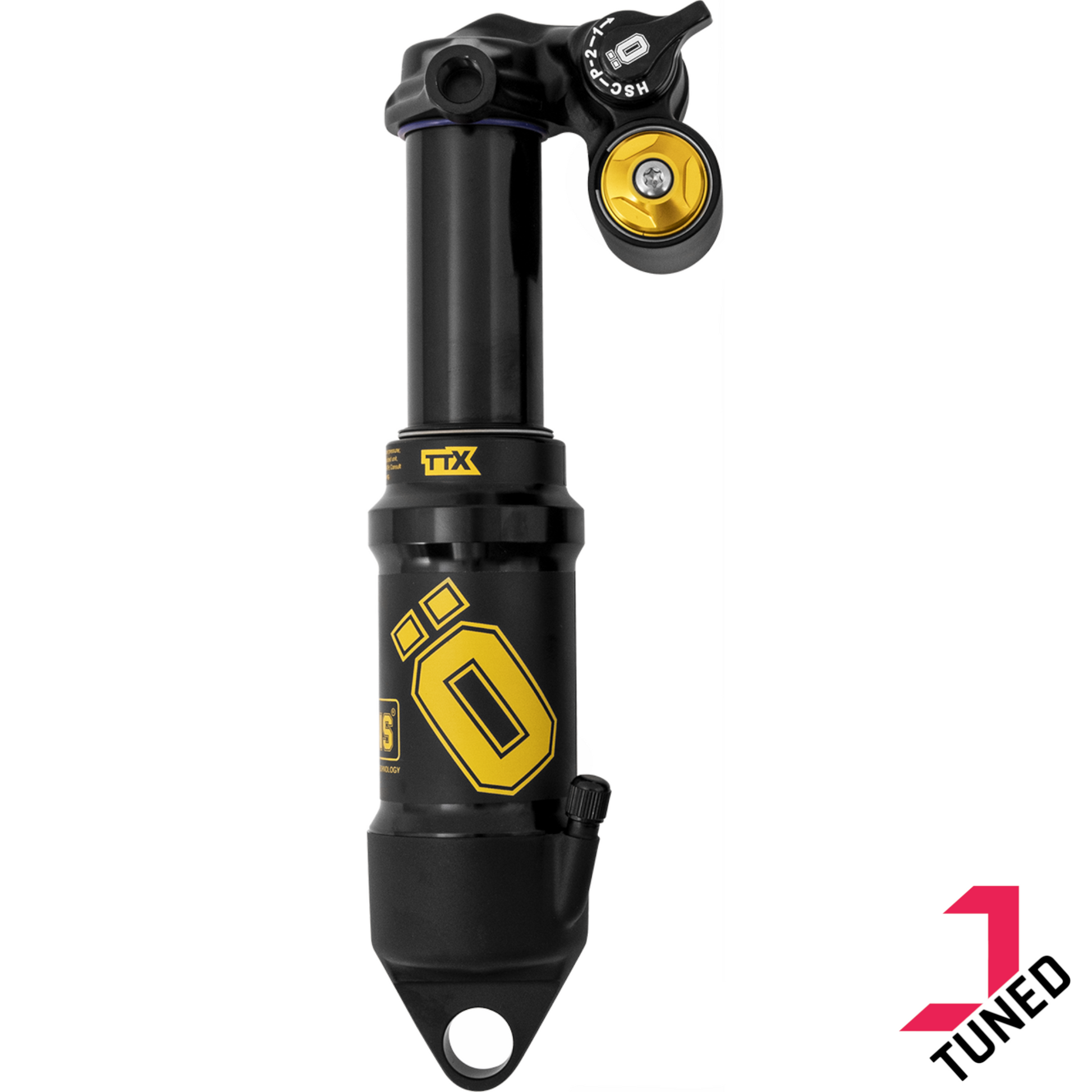

Custom Tuning included,(worth £85)

We offer a calculated tuning service – using endless data acquired from hours of testing and data logging, we can make calculated and informed decisions on what settings, re-valving and modifications are suitable for you. Your suspension will be thoroughly tested with our dyno facilities and tailored to you and your riding style.

Find Custom Tuning Information Here





Free Mount Kits:

Mounting Hardware  supplied when purchased, (worth up to £35).





Specs:

  • TTX highly adjustable compression valve technology.
  • Single can design optimized for varied kinematic designs and tighter fitment.
  • Compact end eye design allows fitment to a broader range of frame designs.
  • Single can design optimized for varied kinematic designs and tighter fitment.
  • Available in Standard Metric 190/210/230 mm lengths.

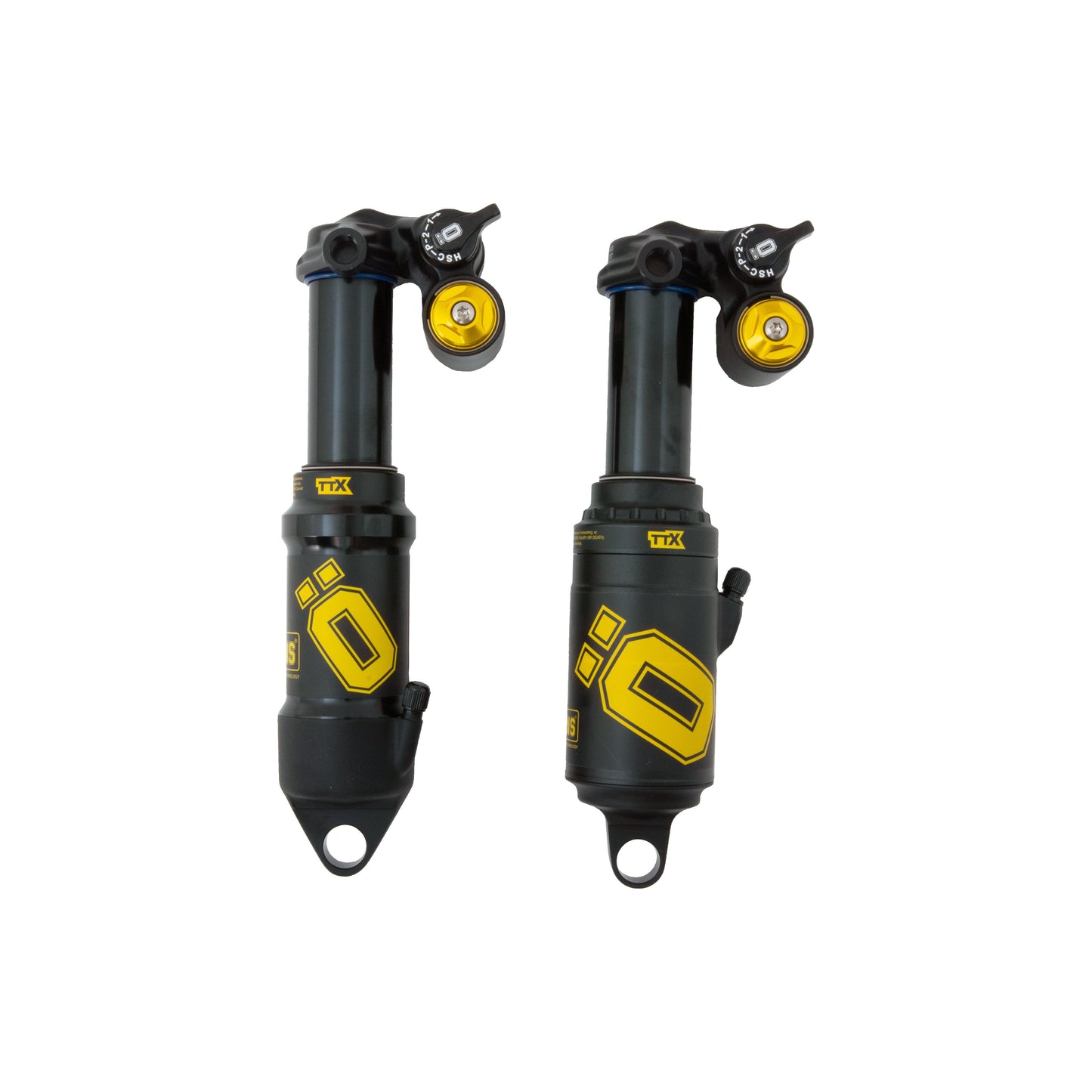

  • Also available Metric Trunnion format in 165/185/205 mm lengths.
  • Serviceable, rebuildable design.
  • Weight: ca. 390 g (Varies depending on size).
  • End-eye diameter: 15 x 12,7 mm.


    Adjustment:

    • Adjustable HSC (High-Speed Compression), LSC (Low-Speed Compression) and Rebound damping.
    • 5 click  compression damping.
    • 6 click rebound damping.
    • Climb mode.

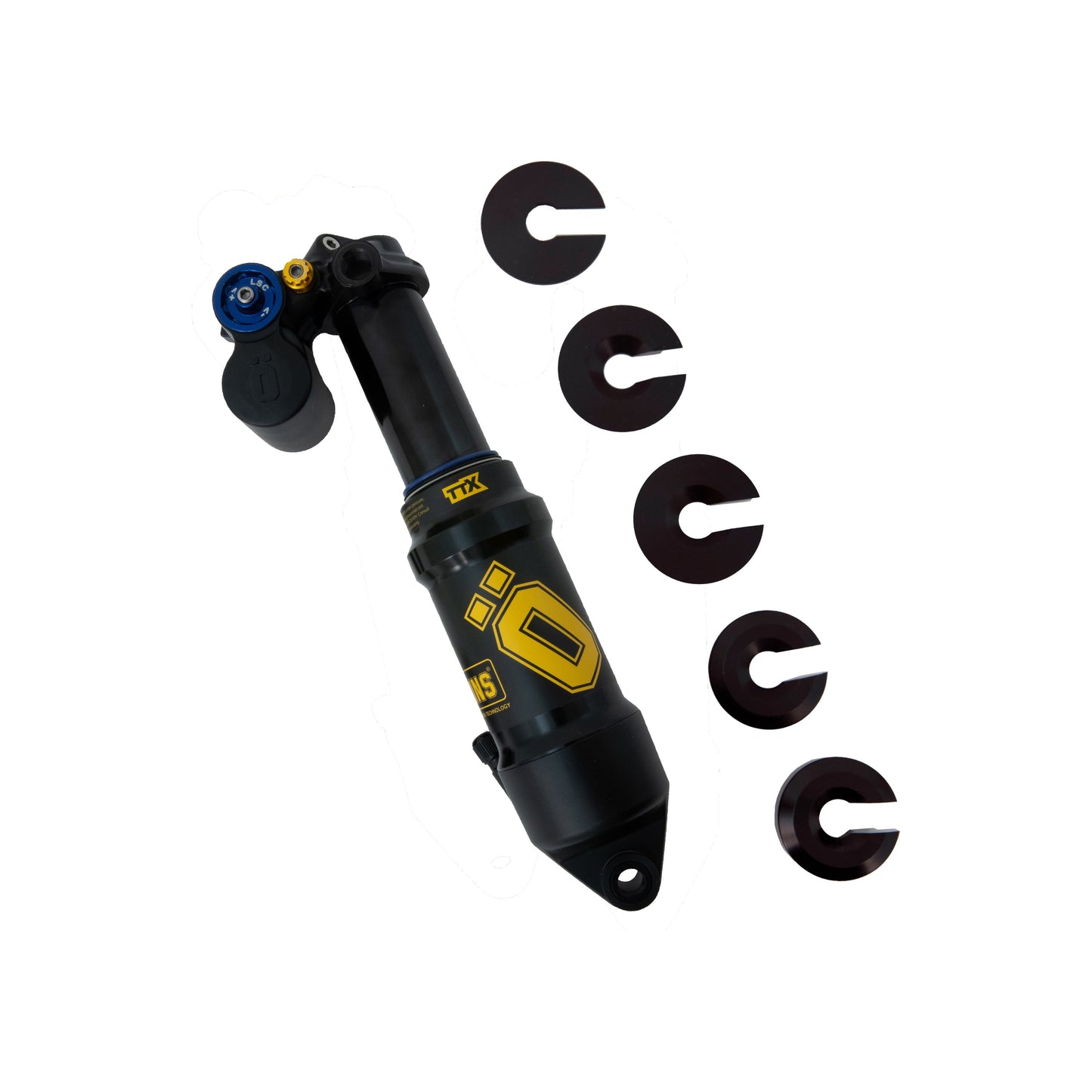

    • Air spring volume spacers included as standard in the shock kit.


        It is a high performing and robust air sprung shock that utilizes on the possibilities made by the metric system.

        By combining the superior damping function of the TTX system together with a completely new air spring design it was possible to improve both performance as well as robustness.

        Öhlins brought the TTX concept into MTB market and the technology set a new standard in damping function, a path followed by competitor companies.

        The TTX Air improves on an already proven package in terms of damping performance and making individual tuning simple.

        The air spring design take full advantage of the possibilities introduced by the metric design.

        Added support and bushing overlap made a more robust air spring with improved side load management.

        This along with a specific wiper seal and air sleeve lubrication reduces friction throughout the service interval.

        Action Interval
        Clean and Lubricate Every Ride
        Inspect for scratches to stanchions, dents and other signs of wear Every Ride
        Check bushing and mounting bolt torque Every Ride
        Air Can Service Every 100hrs of use / 12 months whichever comes first.
        Full Service Every 100hrs of use / 12 months whichever comes first.
