Öhlins RXFDJ m.1 Air

Öhlins RXFDJ m.1 Air

FGMTB-3609-2361

£1,099.00
£1,099.00
Sale Sold out
Tax included.

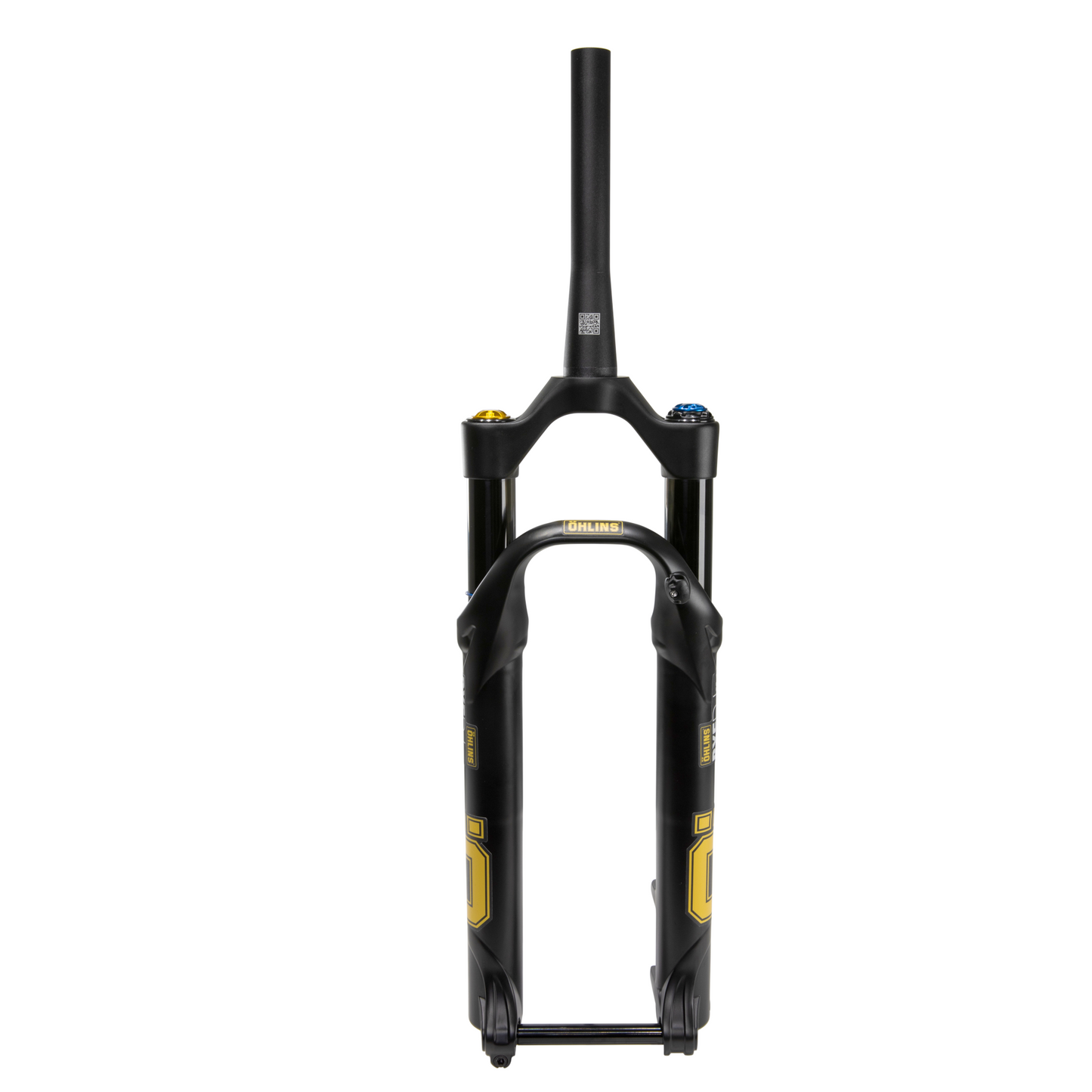

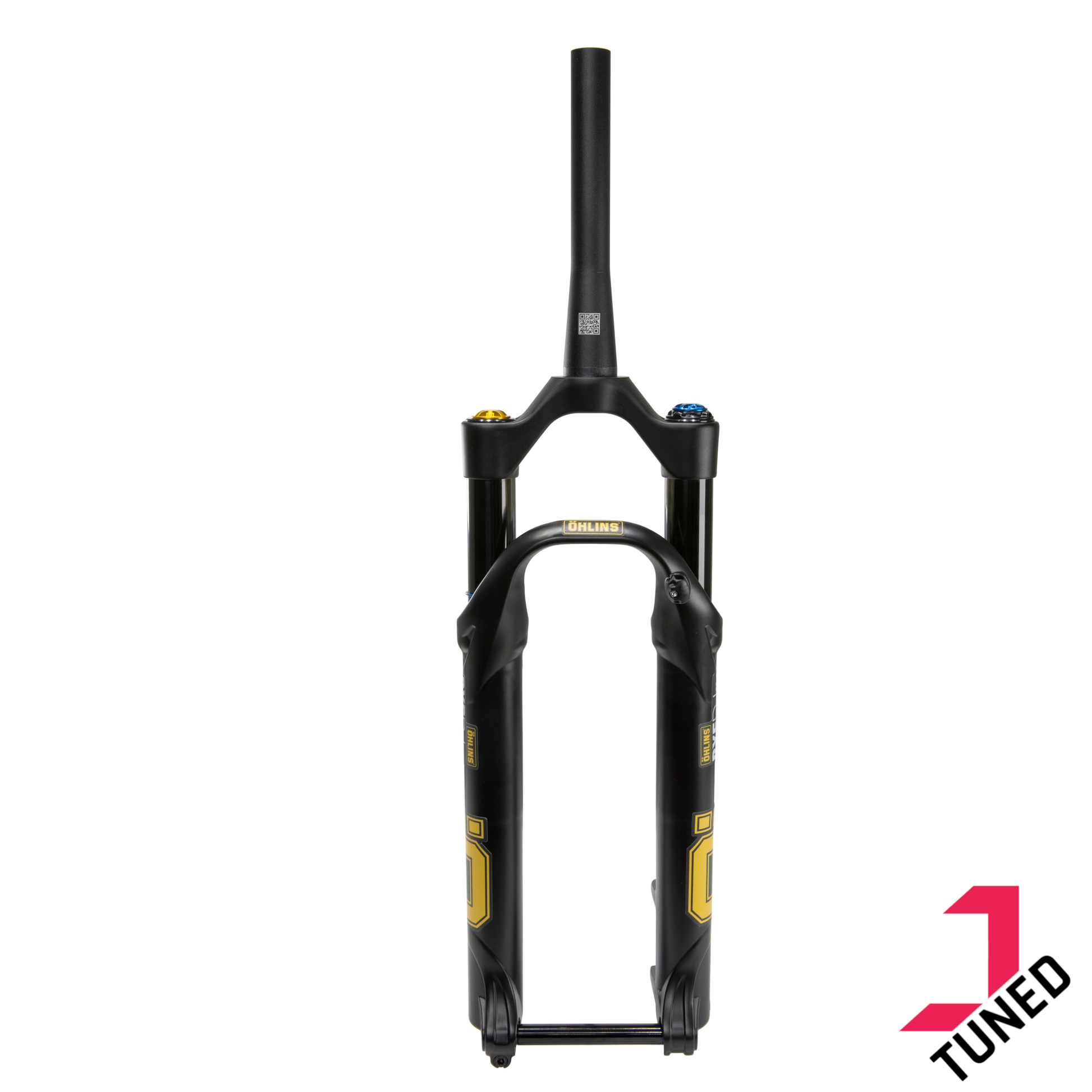

The NEW Öhlins RXFDJ m.1 Air TTX18 DJ Suspension Fork 26"

Custom Tuning

Custom tuning, revalving, shim tuning, whatever you like to call it: it's included!
We'll install our tried and tested shims stacks, to suit your application, and rebuild the Fork with the highest quality oils. We'll even give you a recommended setup for all the adjusters, as well as spring recommendations, and ongoing setup support, if you're not quite getting the most from our initial setup. You'll get a nice printed sheet, for your reference, enclosed with the fork.

Description

The RXFDJ m.1 is a high-performance dirt jump fork built around our race proven TTX18 cartridge and 3-chamber air spring. It offers superior strength and stiffness, excelling in the slopestyle, pump track, and dirt jump arenas. This fork has been piloted by Matt Jones and Nico Vink to push what’s possible on a bike.

The TTX18 damper is derived from DH World Cup race-proven technology, offering massive support and control in the most demanding situations. The TTX18 cartridge features an 18 mm piston, a twin-tube oil pathway, and external rebound and compression (both high and low) adjustments to achieve optimal fork performance.

The three-chamber air spring delivers best in class adjustability so you can find the perfect setup for the type of riding you do. Bottom-out progression can be externally adjusted by adding air pressure in the ramp-up chamber —no tokens needed. With a wide adjustment range in both damper and air spring, it is easy to achieve the perfect setup.

The RXFDJ m.1 delivers exceptional control, strength, and confidence to push your boundaries on dirt jumps, pump tracks, and the biggest slopestyle lines alike.

Specifications & Details
  • TTX technology.
  • Independent spring system.
  • Independent damper system.
  • Air travel 90 mm.
  • 36 mm stanchions.
  • 38 mm offset.
  • Floating 15x110 axle for minimal friction.
  • Wheel size 26”.
  • Weight 2150 g (with bolts + axle).
Details
Axle Crown: 489 mm
Wheel Size: 26"
Brake Dim: 180-205 mm
Damp Tech: TTX18
Hsc Cli: 3 mm
Lsc Cli: 15 mm
Lsr Cli: 15 mm
Offset: 38 mm
Tyre: 2.8"
Travel: 90 mm
Axle Dim: 110 x 15 mm


Servicing
Action Interval
Clean and Lubricate Every Ride
Inspect for scratches to stanchions, dents and other signs of wear Every Ride
Check headset, axle and brake torque Every Ride
Oil Bath Replacement 50hrs use
Wiper Seal Replacement 100hrs use
Full Service Every 100hrs of use / 12 months whichever comes first.
