Öhlins

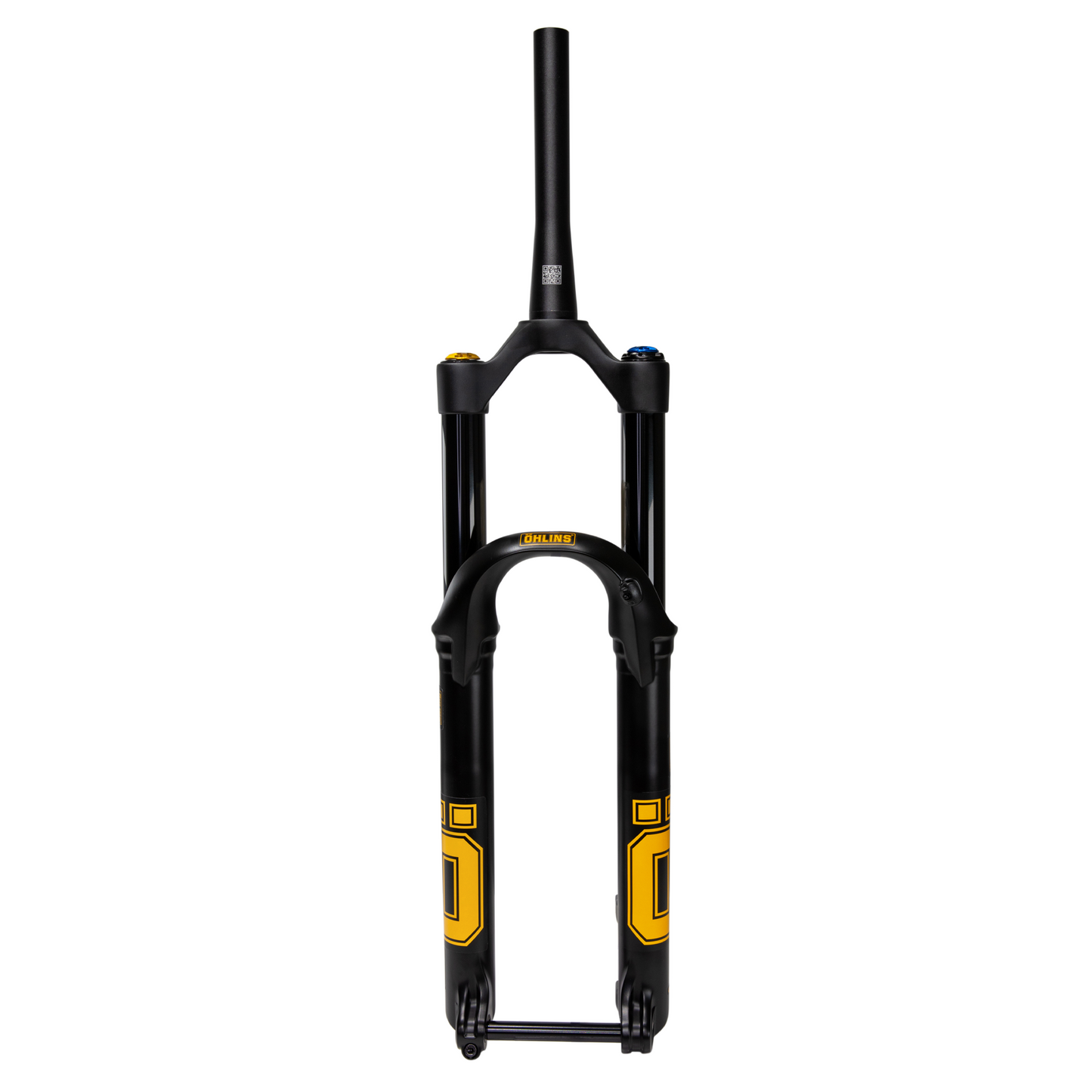

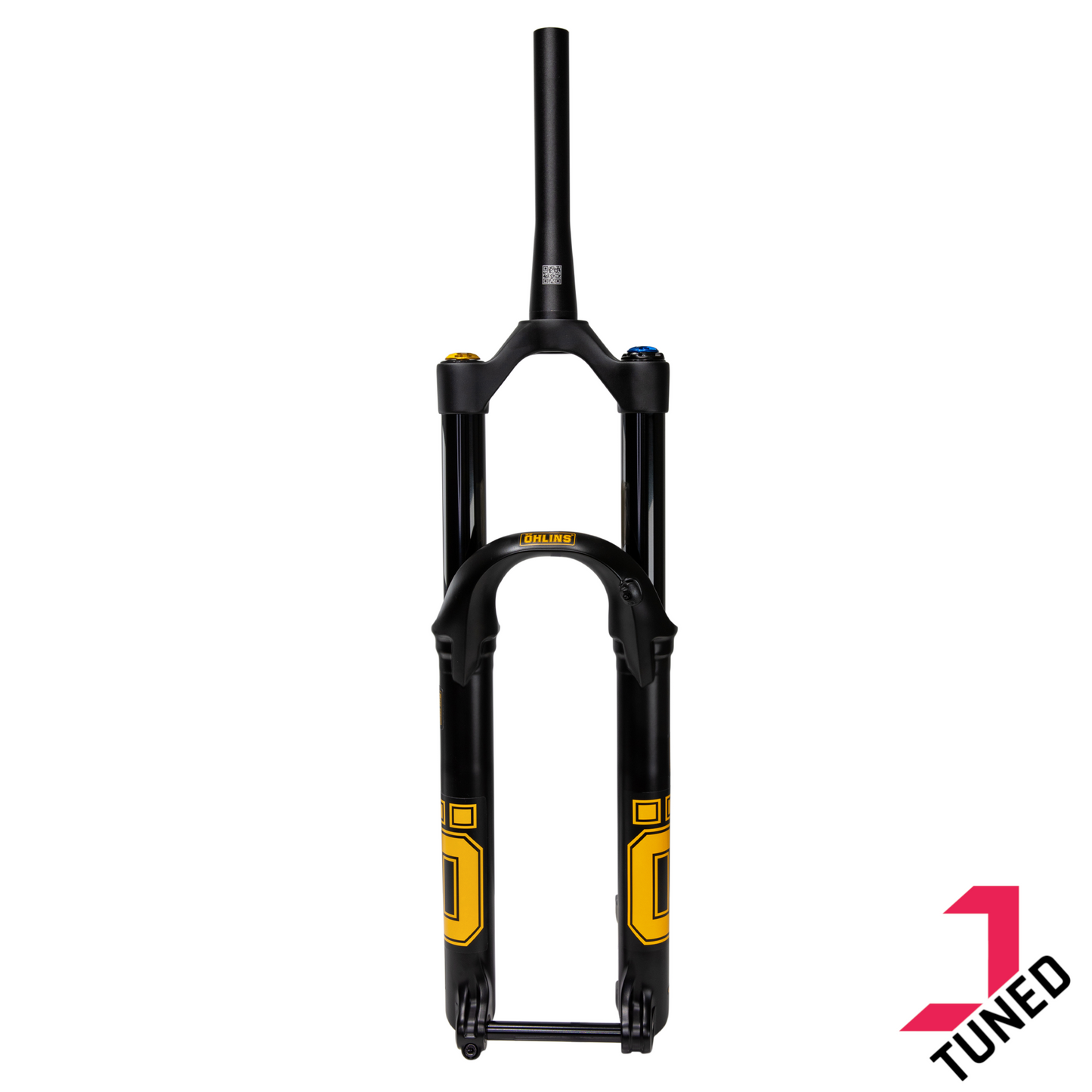

Öhlins RXF36 M.3 Air

Öhlins RXF36 M.3 Air

FGMTB 3614 2411

£1,299.00
£1,299.00
Sale Sold out
Tax included.
Pre-order now for expected delivery around end of February.

Free Tuning!

Custom Tuning included (worth £85)

We offer a calculated tuning service – using endless data acquired from hours of testing and data logging, we can make calculated and informed decisions on what settings, re-valving and modifications are suitable for you. Your suspension will be thoroughly tested with our dyno facilities and tailored to you and your riding style.

Find Custom Tuning Info Here

Key Features
  • TTX technology
  • Fork travel 140-160mm (170 for 27.5")
  • Independent spring system
  • Independent damper system
  • Retuned air spring system
  • 36-mm stanchion tube
  • 38, 44 and 51-mm offset
  • Wheel size 29" and 27.5"
  • eMTB-approved
  • Race-proven setting bank
  • Prepared for coil spring
  • Reduced chassis friction
  • Floating 15x110 axel for minimum friction
  • Weight 2050 g (with bolts + axle)
Description

The RXF36 m.3 features an all-new chassis built around the race-proven TTX18 cartridge. This lightweight and highly progressive fork is fully optimized for demanding, next-level trail riding performance.

Öhlins' race-winning TTX18 damping technology from the DH38 Race Fork has been adapted to deliver its renowned top-tier traction and control on the most demanding trails. With the new chassis, the fork delivers ultra-sensitive tracking over small bumps while maintaining Öhlins' signature precise steering and predictable handling—no matter how long or hard it's pushed.


The RXF36 m.3 features increased internal bushing overlap and an optimized configuration for 140-160mm travel on 29” wheels (up to 170mm for 27.5”), along with crown offsets of 38, 44, and 51mm. With its updated settings and reduced chassis friction, the fork offers improved sensitivity for greater traction and comfort to conquer any trail.

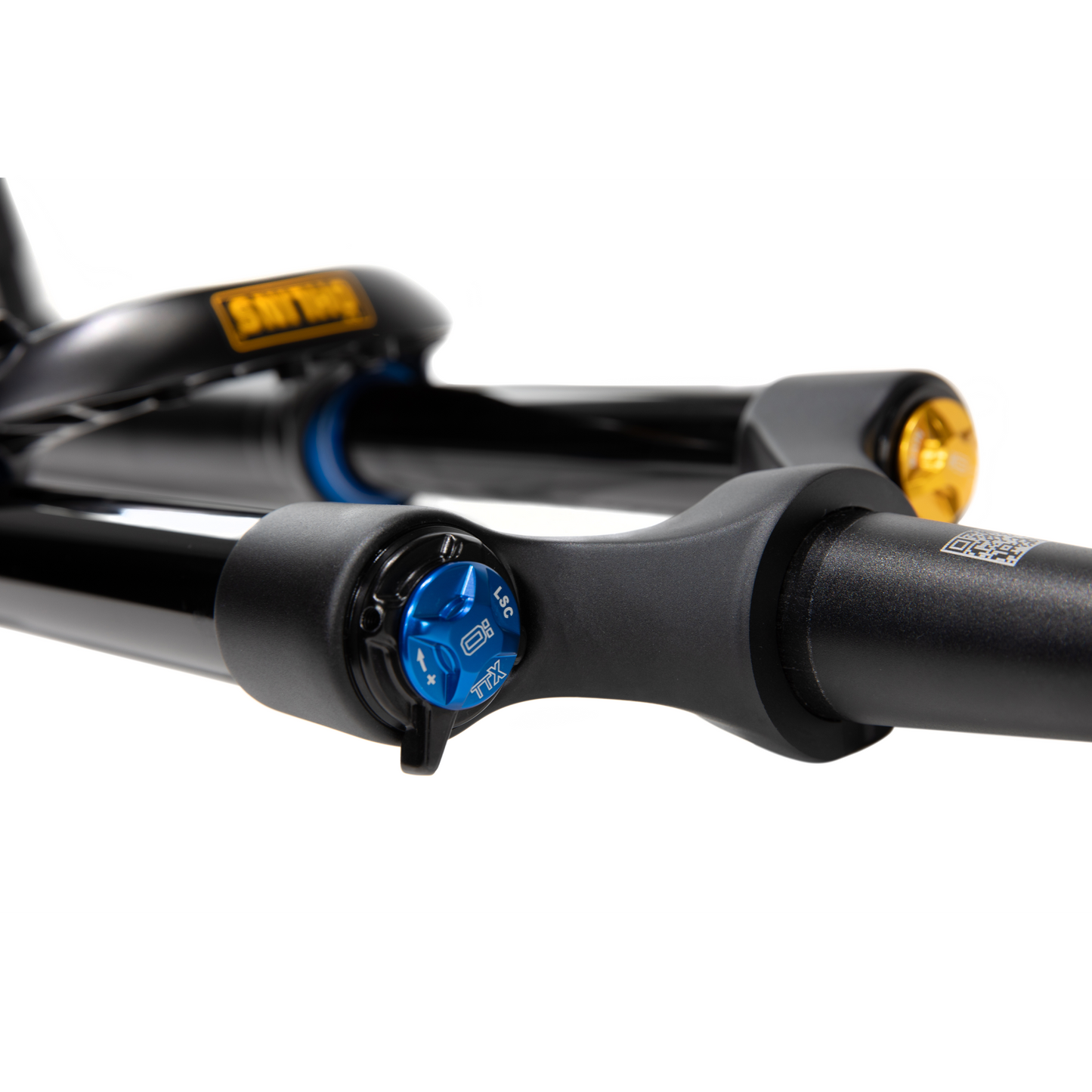

The RXF36 m.3’s adjustment range is specifically designed for tough trails and provides 16 clicks of low-speed compression, 3 clicks of high-speed compression, and 16 clicks of rebound adjustment. It features our floating axle design for minimal friction and weighs 2050 g (with bolts and axle). The retuned, twin piston, three chamber air-spring system allows you to completely dial-in the level of progression—from the initial movement, right through to the bottom out. The air spring is cartridge-based, allowing for easy swaps between coil and air if desired.


Mounting Instructions
  • Do not install more than 30mm of spacers under the stem.
  • Minimum rotor size 180mm, maximum rotor size 203mm.
  • Hose clamp 0.5Nm tightening torque.
  • Axle and pinch bolt 6Nm tightening torque (tighten axle before pinch bolt / undo pinch bolt first before undoing axle)
 Wheel Size Fork Travel (mm)  Axle to Crown (mm)  Crown to wiper seal (mm)
29" 140 553 147
29" 150 563 157
29" 160 573 167
27.5" 140 539 147
27.5" 150 549 157
27.5" 160 559 167
27.5" 170 569 177

Links
Owners Manual


Servicing
Action Interval
Clean and Lubricate Every Ride
Inspect for scratches to stanchions, dents and other signs of wear Every Ride
Check headset, axle and brake torque Every Ride
Oil Bath Replacement 50hrs use
Wiper Seal Replacement 100hrs use
Full Service Every 100hrs of use / 12 months whichever comes first.
