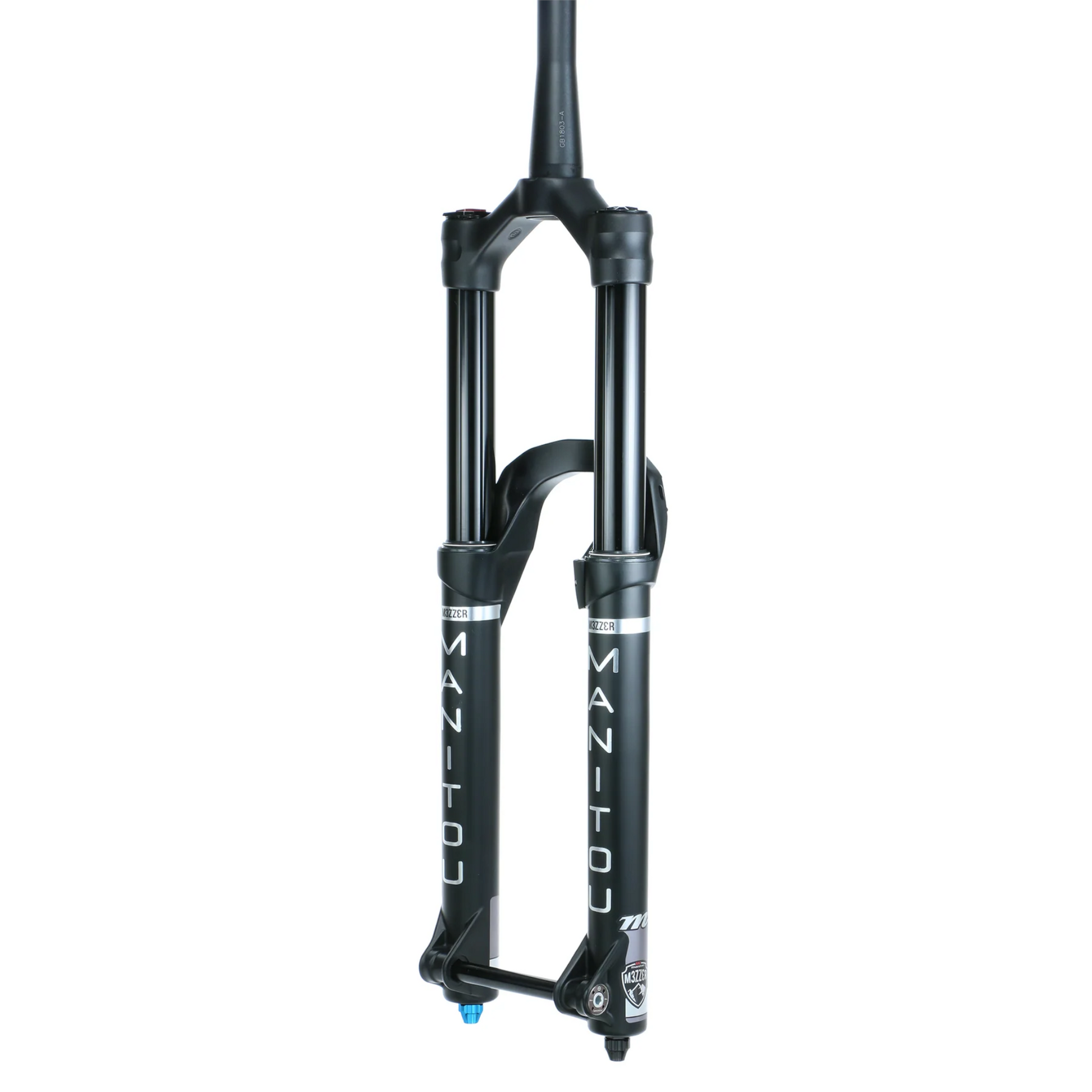

Manitou Mezzer Pro without tuning

Out The Box

This fork will come to you with Manitou's standard aftermarket tune.

A full inspection will be done before dispatching. We will:

• Make sure the correct volume of oil and grease has been used in the damper, air spring and lower legs.
• Address any assembly issues, like tight bushings.

This is included in the price.

Description

Here's what Manitou say...

Featuring 37mm stanchions and our Reverse Arch design, the Mezzer Pro is the stiffest Enduro fork on the market… it’s also the lightest. How did we manage to accomplish this you ask? Well, it’s not hollow if that’s what you're wondering. In fact, this fork is loaded with technologies such as a fully sealed MC² damper, our proven Dorado air spring, and the life-changing IRT volume adjuster. What does all this mean? It means you no longer need to pick two; you can have the lightest, stiffest, and incredibly adjustable fork all at once.

Features

• 37mm stanchions, Reverse Arch design, and Hexlock SL2 axle combined together result in ultimate stiffness.
• Originally developed for the Dorado down-hill fork, the Dorado Air Spring offers ultimate sensitivity, featuring a self-equalising negative air spring. When inflating the fork, both the positive and negative air chambers are filled simultaneously equalising the pressures to create an incredibly supple feel.
• IRT (Infinite Rate Tune) volume adjuster allows control over the mid-stroke support and bottom-out progressivity independent from initial spring rate to independently tune small bump sensitivity and big-hit performance.
• Sealed MC² damper provides a range of blow-off thresholds to satisfy any requirement with separate high-speed and low-speed adjustments. Utilizing a bladder, our new sealed cartridge maintains damping consistency in the most severe riding conditions.
• 140mm to 180mm internally adjustable travel in 10mm increments (travel spacers included).
• The integrated flexible fender can be installed/removed by three small screws threaded into the arch of the fork.

Delivery

In stock items will take approx. 5 working days to dispatch your order, as the fork needs to go through the workshop. We'll confirm a dispatch date within 1 working day of you placing your order.

> PLEASE ENQUIRE FOR STOCK AVAILABILITY <

Specifications

• Wheel Size: 29"
• Offset: 44/51OS
• Ride Height: 554-594mm
• Travel: 140-180mm Internally adjustable in 10mm increments
• Spring: Dorado Air w/ IRT
• Compression Damping: MC2 Sealed Cartridge
• Rebound Damping: Sealed Cartridge TPC
• Adjustments: Air, IRT Pressure, Rebound, HS and LS Compression
• Steerer: 1.5" Tapered
• Crown: Forged Aluminium, Hollow Bore
• Leg Diameter: 37mm
• Leg Material: 7000- Series Butted Wall Aluminium
• Brake Post Mount: 180mm (223mm Max)
• Axle: 15mm x 110mm Hexlock
• Max Tyre Size: 69mm w/ Fender 74mm Without
• Options: Fender Kit
• Weight: 2032g
