Out The Box
This fork will come to you with Manitou's standard aftermarket tune.
A full inspection will be done before dispatching. We will:
- Make sure the correct volume of oil and grease has been used in the damper, air spring and lower legs.
- Address any assembly issues, like tight bushings.
This is included in the price.
Description

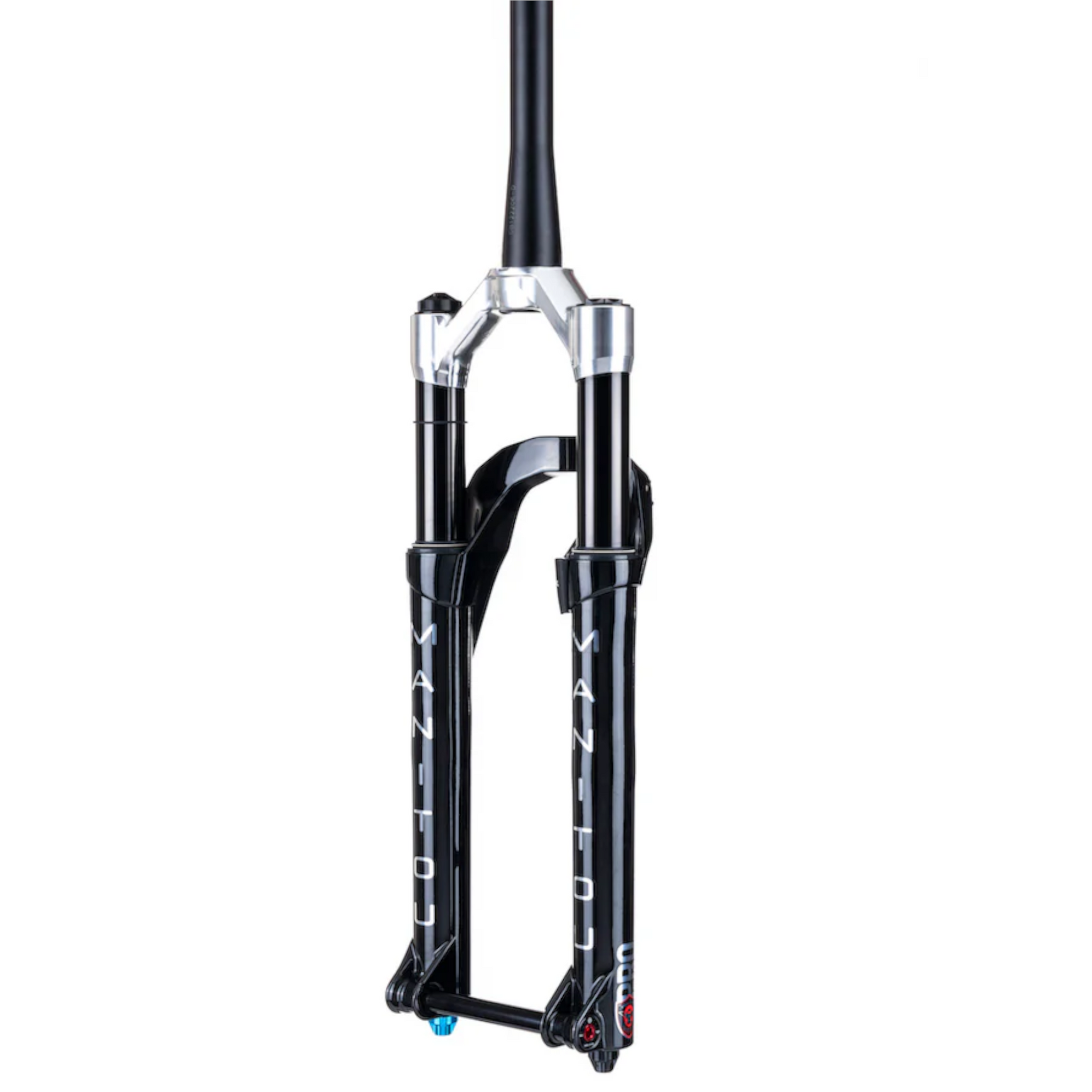

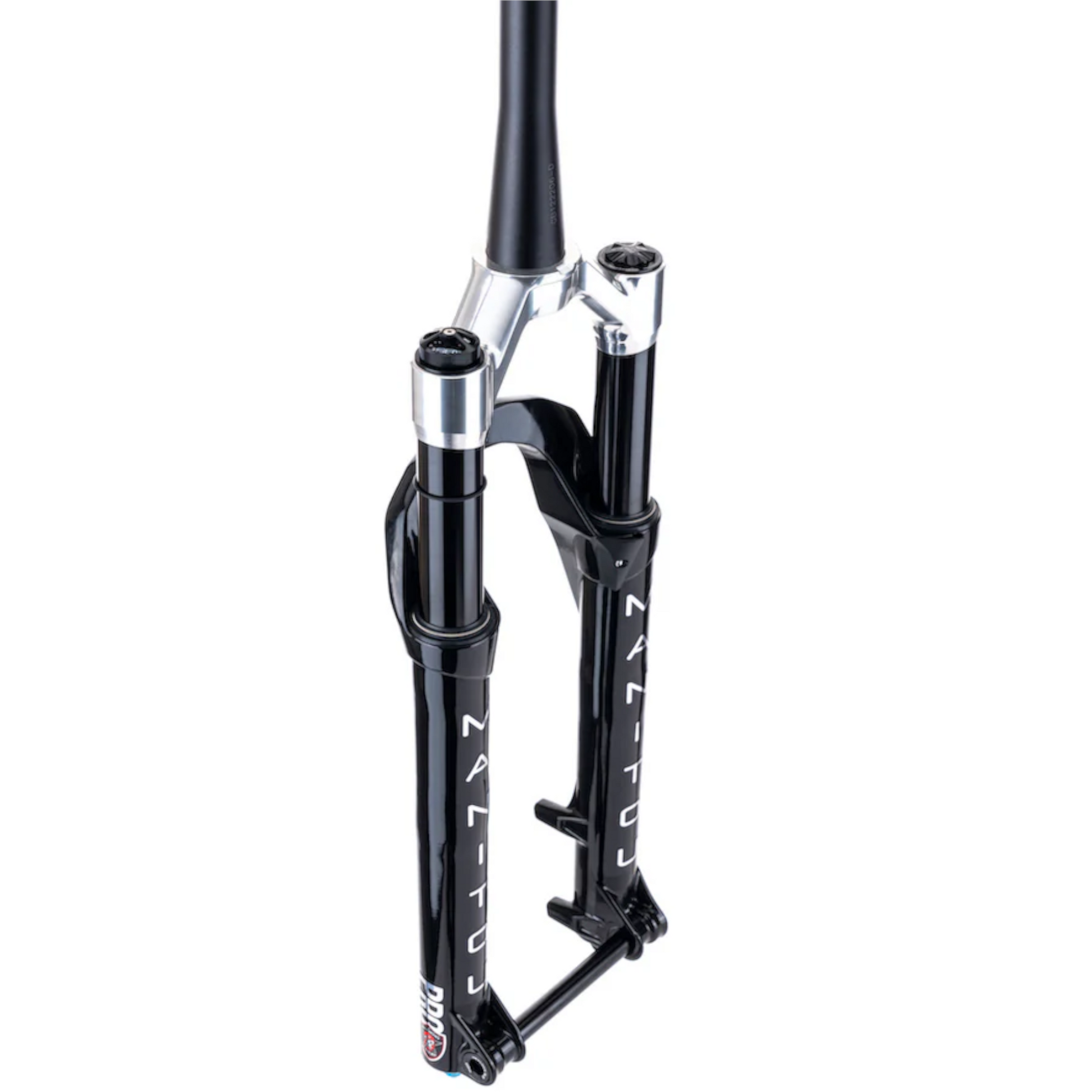

Circus Pro 34 26w, 41mm Offset. 100mm, 34mm Stanchions, Taper, 15x110mm, Black
The Circus project started as a way to get our slope-style riders into competition, but it became an industry-leading dirt jump fork for riders worldwide. Circus has set the benchmark for the everyday riders' jump session requirements and delivered podium results at pro-level competitions for almost a decade.
176g weight drop from the previous model!
Increased wheel and torsional stiffness with the Boost hub at a dramatic weight loss.
DoradoTM air allows for internal travel adjustments with no added parts. New travel spacers account for negative air volume change, so the 80mm fork has the same initial stroke feel as the 140mm. The new fork covers the travel range with one chassis, opposed to the current fork using two chassis.
Dorado Air spring systems contain a unique balancing valve that equalises the positive and negative air chambers during the air fill process. This gives the spring rate a consistent feel without any flat or dead spots in the stroke and gives riders of different weights the same initial stroke feel. Dorado Air used in the Circus Pro is tuned with a smaller negative chamber for maximum support on jump faces and pumping.
Incremental Volume Adjust (IVA) modifies the volume in the positive air chamber with self-contained spacers dictating the position of the IVA piston. This allows the main air spring
ramp-up to be tuned to the rider's weight, style, and conditions without the need for additional parts.
Absolute Plus (ABS+) Jumpstack is a shim stack based damper that features external incremental Low Speed compression adjustment. Jumpstack has the ability to run a very firm platform for maximum support off of jump lips, with blowoff to take the sting off of miscalculated landings.
Half cartridge damper is much lighter with increased performance from the in-leg damper.
Increased stiffness of the boost wheel.
Lower profile 160mm PM brake, 5mm lower axle to crown heights across the travel range.
The lightest DJ fork on the market, air spring and damper are specifically tuned for maximum support for dirt jumping and pump track riding.
Delivery
In stock items will take approx. 5 working days to dispatch your order, as the fork needs to go through the workshop. We'll confirm a dispatch date within 1 working day of you placing your order.
> PLEASE ENQUIRE FOR STOCK AVAILABILITY <
Specifications
- Wheel Size: 26"Weight: 1750g
- Offset: 41mm
- Ride Height: 80mm travel - 460mm a2c, a2c increases 10mm per 10mm of travel.
- Travel: 80-140mm internally adjustable in 10mm increments
- Spring: Dorado Air w/ IVA
- Compression Damping: ABS+ Jump Stack w/ HBO
- Rebound Damping: Half cartridge adjustable TPC
- Adjustments: Air, Air Volume, Rebound, Compression
- Steerer: 1.5" Tapered
- Crown: Forged Aluminum, Hollow Crown
- Leg Diameter: 34mm
- Leg Material: 7000-Series Taper Wall Aluminum
- Brake Post Mount: 160mm (203mm Max)
- Axle: 15x110mm Hexlock SL
- Max Tyre Size: 63mm
