Cane Creek

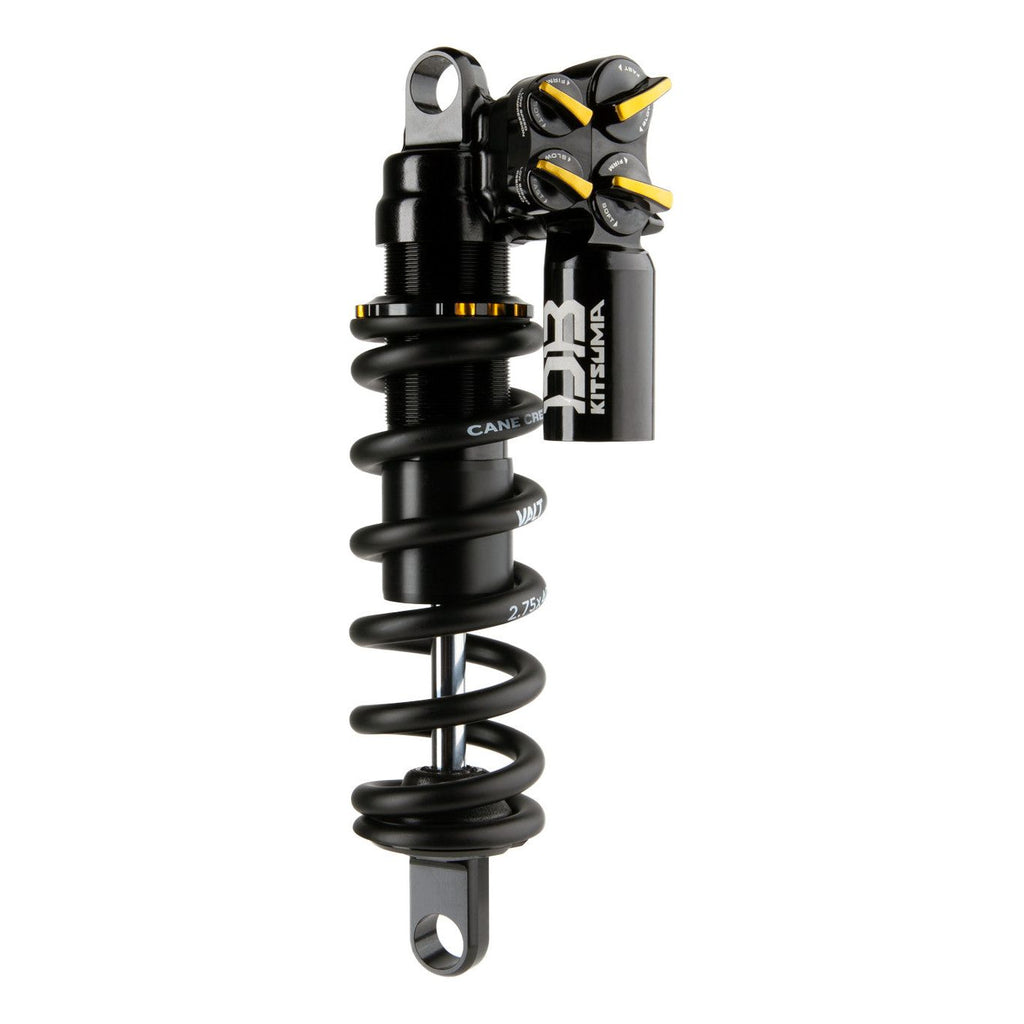

Cane Creek Kitsuma Coil

  • Sale
  • £689.99


Please contact us before ordering to confirm availability. We are experiencing delays in some variants, with delivery dates subject to change.

BCD0051
To help fill out this form, please read our guide here.


Please see our Clearance page. We have certain sizes of shock, available at the old price.

Free Tuning:

We offer a calculated tuning service – using endless data acquired from hours of testing and data logging, we can make calculated and informed decisions on what settings, re-valving and modifications are suitable for you. Your suspension will be thoroughly tested with our dyno facilities and tailored to you and your riding style.

Find Custom Tuning Information Here



Free Mount Kits:

Mounting Hardware (supplied when purchased.)



Spring:


Not Supplied with Shock
Unsure of which spring you need? Click Here For Our Advanced Calculator

Progressive Valt Spring
Valt Spring

SPECS:

Weight: 468g (210mm without spring).

Damping: Twin Tube independent compression and rebound in two high-speed and four low-speed damping circuits.

Adjustments: 4-way independent, Tool-less adjustments.

• Spring Preload.

• High speed compression.

• Low speed compression.

• High speed rebound.

• Low speed rebound.

• 3-Pos Climb Switch.

Shaft Diameter: 9.5mm.


Cane Creek Kitsuma - Pro-tune at your fingertips.

DB Kitsuma is a highly adjustable rear shock built for maximum performance in a design that is incredibly intuitive and easy to use.

All shocks are built to order by hand in our facility in North Carolina, USA.

Cane Creek is proud to announce the DB Kitsuma, a highly adjustable rear shock built for maximum performance in a design that is incredibly intuitive and easy to use. Grounded in the DNA of the original Double Barrel line of shocks, DB Kitsuma improves on its predecessors in almost every way. It caters to all varieties of riding styles, body types, and bicycle frame designs without the need for any internal valving adjustments, changes or compromises.

No need to crane your neck under your bike while fumbling with tiny allen wrenches to make adjustments. DB Kitsuma sports completely tool-free adjusters that are ergonomically designed to be easily accessible and adjustable trail-side – giving riders the power of a pro-tune at their fingertips.

Gone are the days of counting clicks backward and forward to know where you are and make adjustments. The entire range of DB Kitsuma’s low-speed compression and rebound circuits are controlled within a single rotation, while the high-speed circuits are controlled within two rotations, allowing the rider to easily reference where they are within their adjustment at a glance. The rider has full control and a true sense for how their bike will handle in a variety of real-world scenarios thanks to DB Kitsuma’s large multi-indexed adjusters.

Redesigned with the geometry of modern bikes in mind, DB Kitsuma’s new valve body and tapered air-can cuts 16mm of length off the external reservoir and reduces the air can’s outer diameter at the end-eye. All-in-all, this adds up to a new low-profile design which allows DB Kitsuma to fit more bikes free of frame-clearance issues.

Simple yet effective – DB Kitsuma is equipped with a three-position climb switch that moves the shock between three distinct modes, drastically affecting the shock’s feel and character. The new three position climb switch retains Double Barrel’s “Descend” mode and it’s patented “CS” mode which provides a stable, yet responsive platform engineered to maximize traction and pedal efficiency while climbing over technical terrain and singletrack. DB Kitsuma also adds a new “Firm” mode. By utilizing a design that closes off the common bleed port, this third position excels at pedaling over long stretches of pavement or gravel roads on your way to the trail.


Action Interval
Clean and Lubricate Every Ride
Inspect for scratches to stanchions, dents and other signs of wear Every Ride
Check bushing and mounting bolt torque Every 15hrs use
Air Can Service Every 100hrs of use / 6 months whichever comes first.
Full Service Every 100hrs of use / 12 months whichever comes first.
