Cane Creek

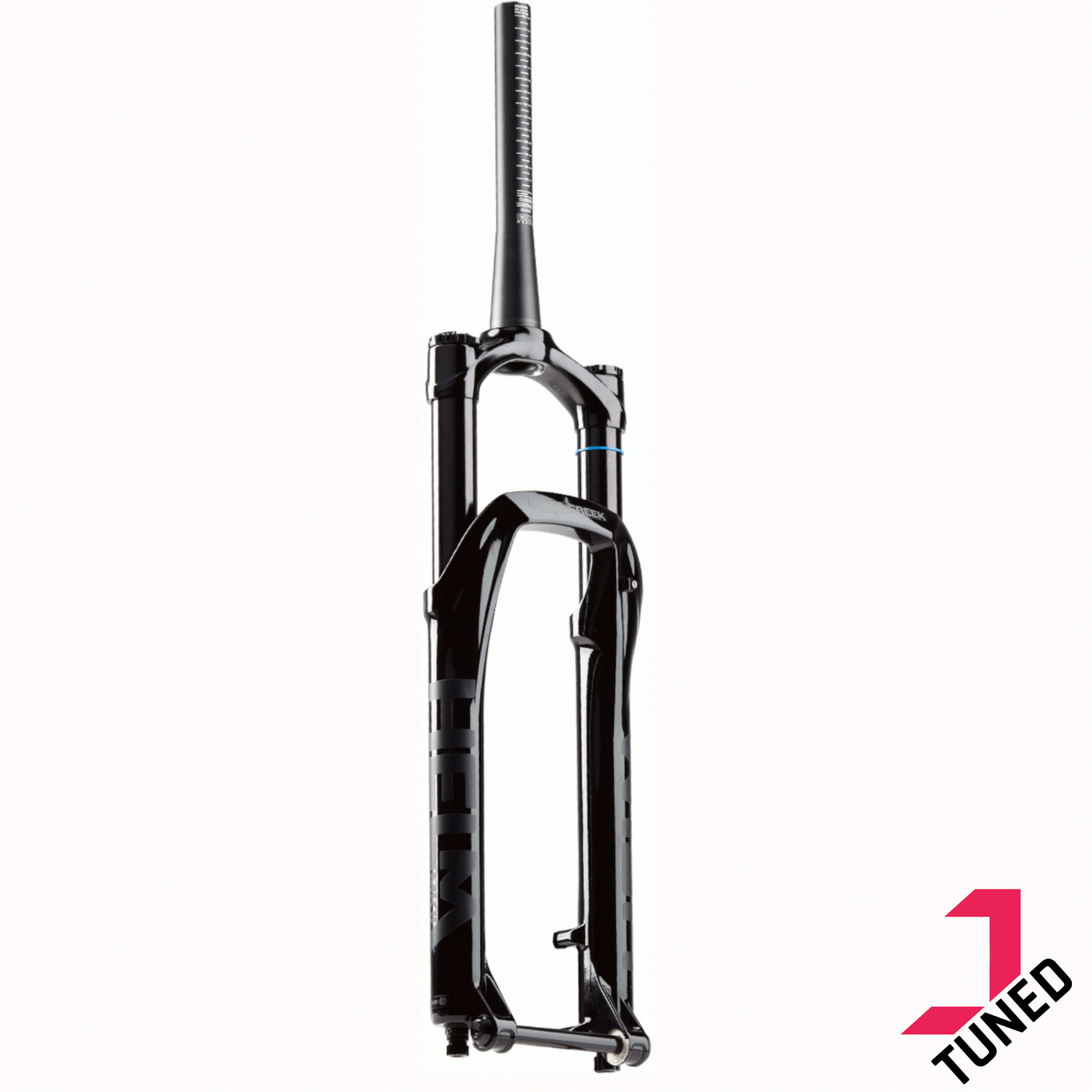

Cane Creek Helm MkII

  • Sale
  • £1,099.99
BAG0656
To help fill out this form, please read our guide here.


Custom Tuning included,(worth £85)

We offer a calculated tuning service – using endless data acquired from hours of testing and data logging, we can make calculated and informed decisions on what settings, re-valving and modifications are suitable for you. Your suspension will be thoroughly tested with our dyno facilities and tailored to you and your riding style.

Find Custom Tuning Info Here

Key Features:

Helm MKII Features:

  • Weight: 2080g (29 Air) | 2340g (29 Coil)
  • Wheel Size: 29" or 27.5"
  • Damping: High Speed Compression - 10 Positions, Low Speed Compression - 17 positions, Low Speed Rebound - 10 positions
  • Spring: "Double Air" Spring system with independent positive and negative chambers | Traditional coil spring
  • Stanchion diameter: 35mm
  • Travel: Factory position at 160mm. Internal adjustment, 10mm Increments (160mm down to 130mm) 2 Travel spacers included with air fork
  • Max Tyre Size: 29” - 64mm wide by 749mm tall | 29” w/ 27.5+ - 75mm wide by 739mm tall 27.5” - 65mm Wide by 714mm tall
  • Axle: "D-Loc" 15mm thru axle system
  • Spacing: 15mm x 110 BOOST spacing
  • Offset: 29" - 44mm | 27.5" - 44mm
  • Axle to Crown: 29" - 568mm at 160mm Travel | 27.5" - 553mm @ 160mm Travel
  • Colour: 29" - Gloss Black | 27.5" - Matte Black

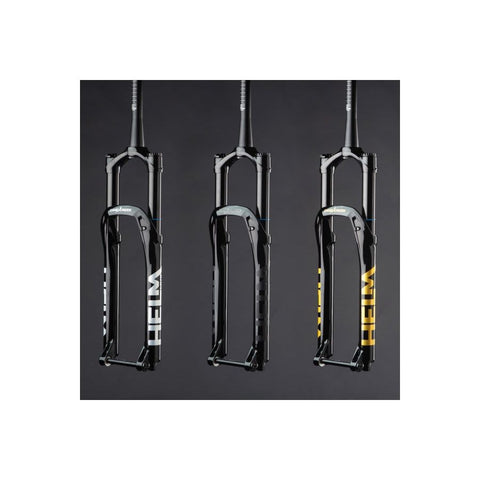

Introducing the Cane Creek Helm MkII

Taking Excellence to Another Level!

With the HELM MKII we re-examined every aspect of the fork’s internal design. From new SKF wiper seals, to lighter weight damper fluid, to a redesigned air spring - we tweaked and tuned and improved the HELM, all in the name of reducing friction as the fork moves through its travel. The result is the smoothest and most supple fork Cane Creek has ever made, all while providing the same incredible support and stability of the original HELM.

Helm MKII Highlights:

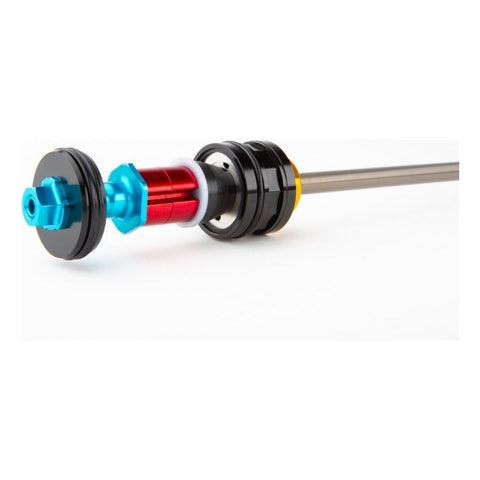

Redesigned Air Spring - New friction reducing air piston material and a threadless air seal head for  ease of maintenance

SKF Wiper Seals -  Reduced friction over previous seals

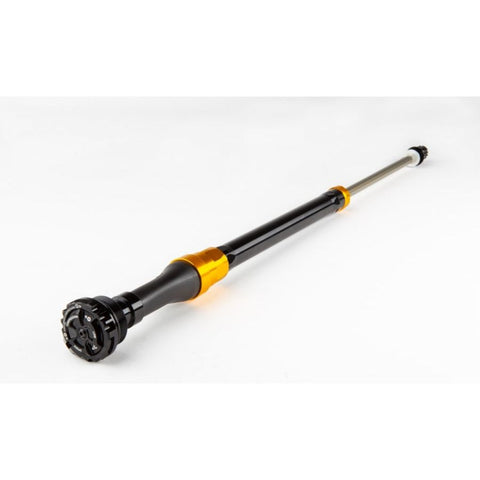

Updated Damper - Lighter compression tune to increase sensitivity, 2.5wt Motorex damper oil with 11% lighter viscosity and new SKF oil seal head to reduce friction.

User Manual

Service Parts

Replacement Springs

Mudguard

Pinned TV spent a day in the workshop showing what goes on prior to your items being shipped out.


Action Interval
Clean and Lubricate Every Ride
Inspect for scratches to stanchions, dents and other signs of wear Every Ride
Check headset, axle and brake torque Every Ride
Pinned TV spent a day in the workshop showing what goes on prior to your items being shipped out.
e="width: 44.7368%;">Oil Bath Replacement
50hrs use
Wiper Seal Replacement 50hrs use
Full Service Every 100hrs of use / 12 months whichever comes first.
