We offer a calculated tuning service – using endless data acquired from hours of testing and data logging, we can make calculated and informed decisions on what settings, revalving and modifications are suitable for you. Your suspension will be thoroughly tested with our dyno facilities and tailored to you and your riding style.
WEIGHT: 2260 grams
ADJUSTMENTS:• 5-way adjustable suspension fork
• High speed compression
• Low speed compression
• Low speed rebound
• Spring pre-load adjust
• Indexed travel adjust system
TRAVEL: 130 - 160mm of travel (10mm increments - No Additional parts required)
AXLE: "D-Loc" 15mm thru axle system
SPACING: 15mm x 110 BOOST spacing

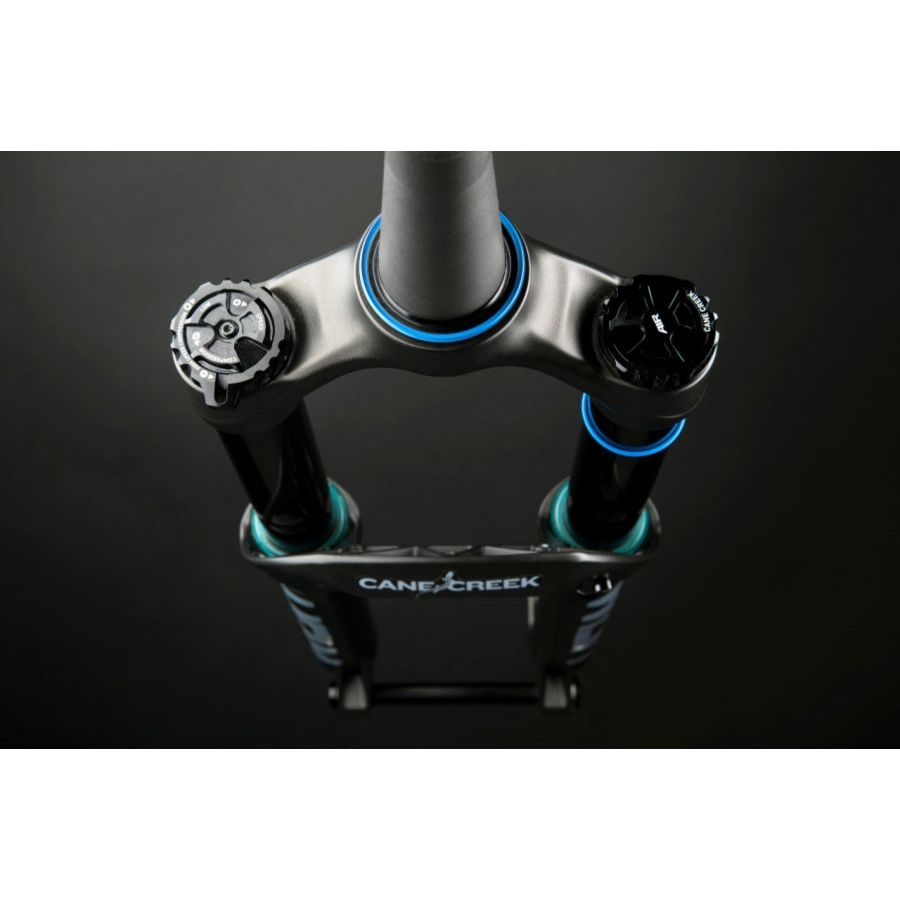

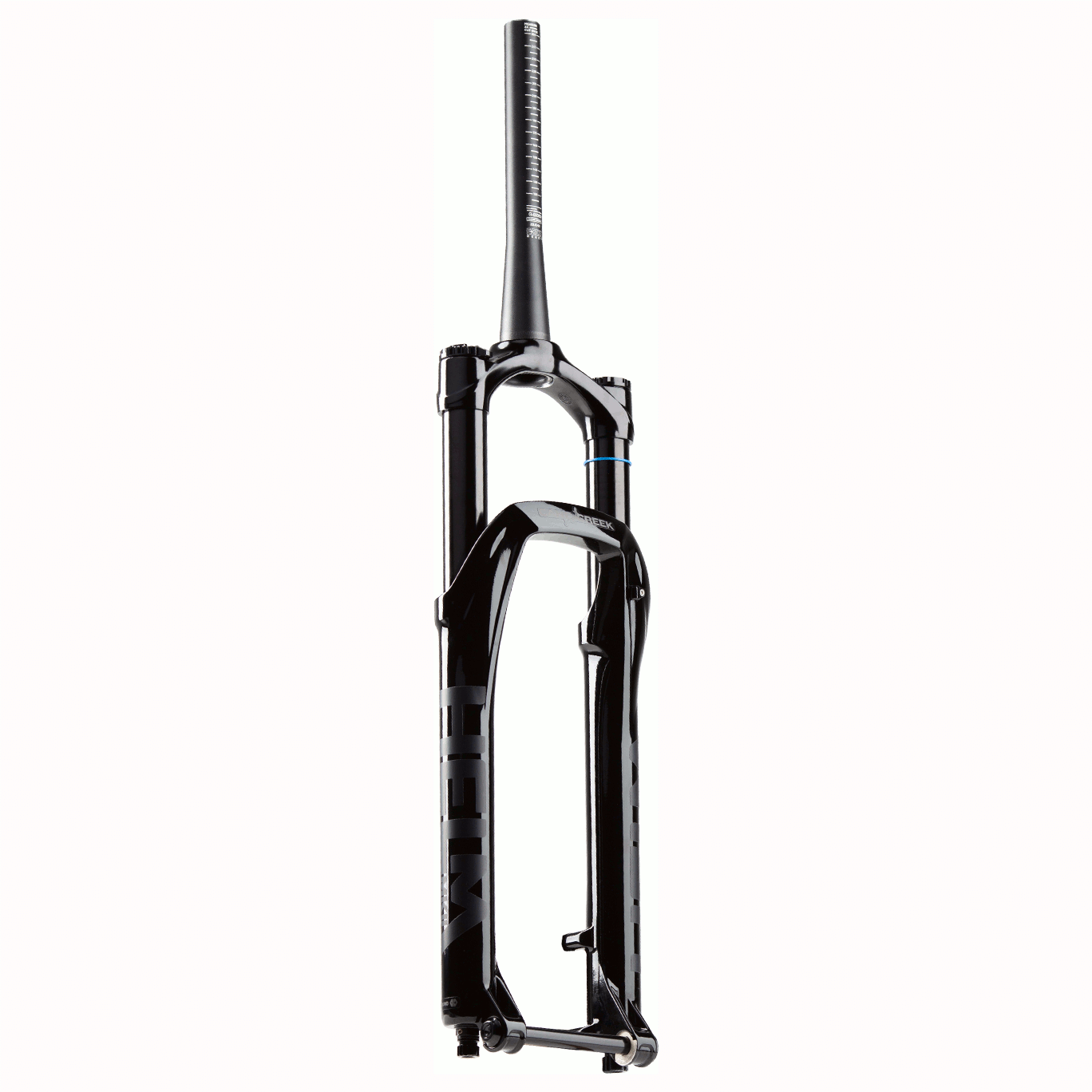

A 7 way adjustable suspension fork, optimised for 130mm to 160mm of travel. Born in the mountains of North West California, the Helm is designed to conquer aggressive trails, enduro racing and anything in between.
By isolating each damping and spring adjustment the helm has the ability to be tuned for all types of terrain and riding style. Giving the rider unlimited control of their suspension set up.
Want to keep your new forks looking box fresh for years to come? Why not purchase an Invisiframe Fork protection kit to do just that by clicking HERE.
Please see the videos below from Cane Creek detailing some of the adjustment options available on the Helm Fork.
Pinned TV spent a day in the workshop showing what goes on prior to your items being shipped out.
|Clean and Lubricate||Every Ride|
|Inspect for scratches to stanchions, dents and other signs of wear||Every Ride|
|Check headset, axle and brake torque||Every Ride|
|Lower Leg Service||Every 50hrs of use|
|Full Service||Every 100hrs of use / 12 months|
