BAD2615
Custom Tuning included,(worth £85)
We offer a calculated tuning service – using endless data acquired from hours of testing and data logging, we can make calculated and informed decisions on what settings, re valving and modifications are suitable for you. Your suspension will be thoroughly tested with our dyno facilities and tailored to you and your riding style.
Find Custom Tuning Information Here
Free Mount Kits:
Mounting Hardwaresupplied when purchased, (worth up to £35).SPECS:
Weight: 385 grams (weight varies by size).
Damping: Twin-tube independent compression and rebound in two high-speed and two low-speed damping circuits.
Adjustments: 4-way independent adjustment:
- High speed compression.
- Low speed compression.
- High speed rebound.
- Low speed rebound.
- Climb Switch.
- Max Pressure: 350 psi.

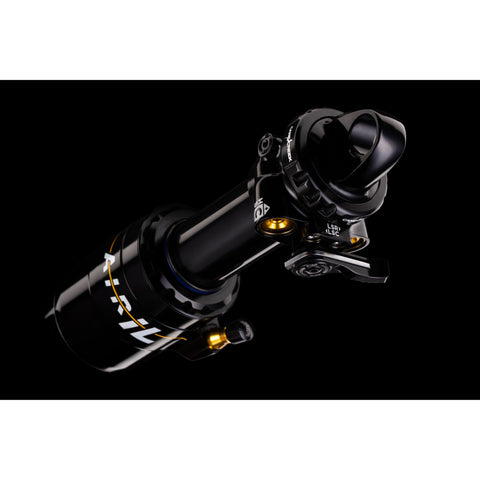

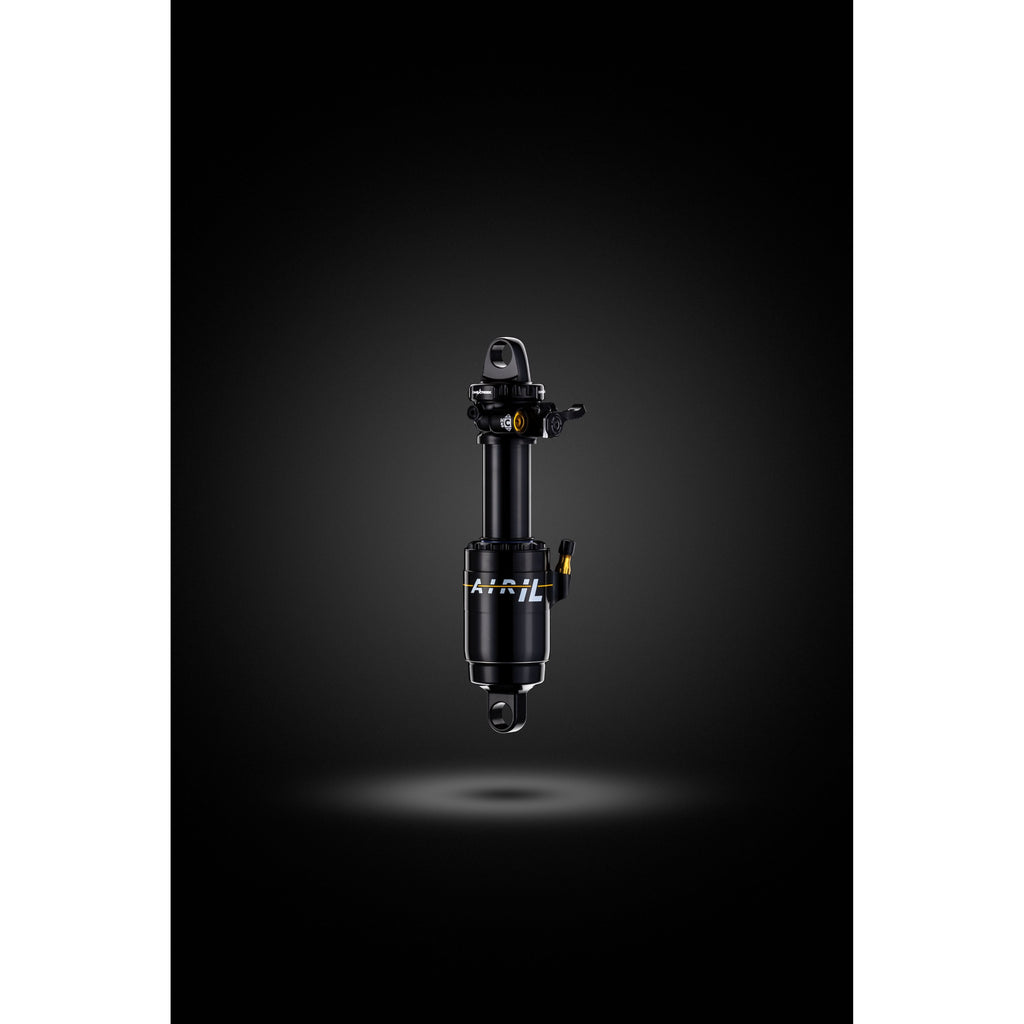

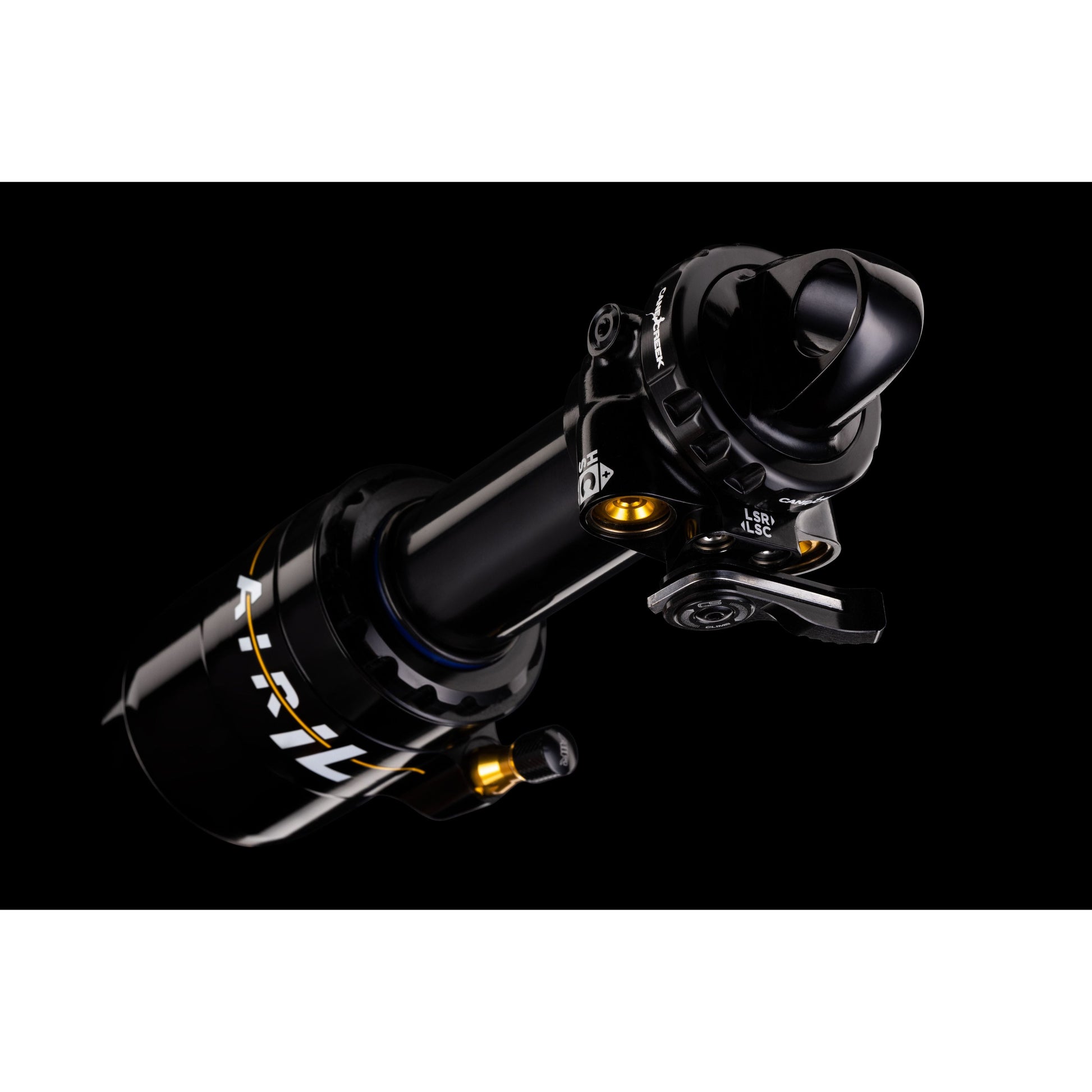

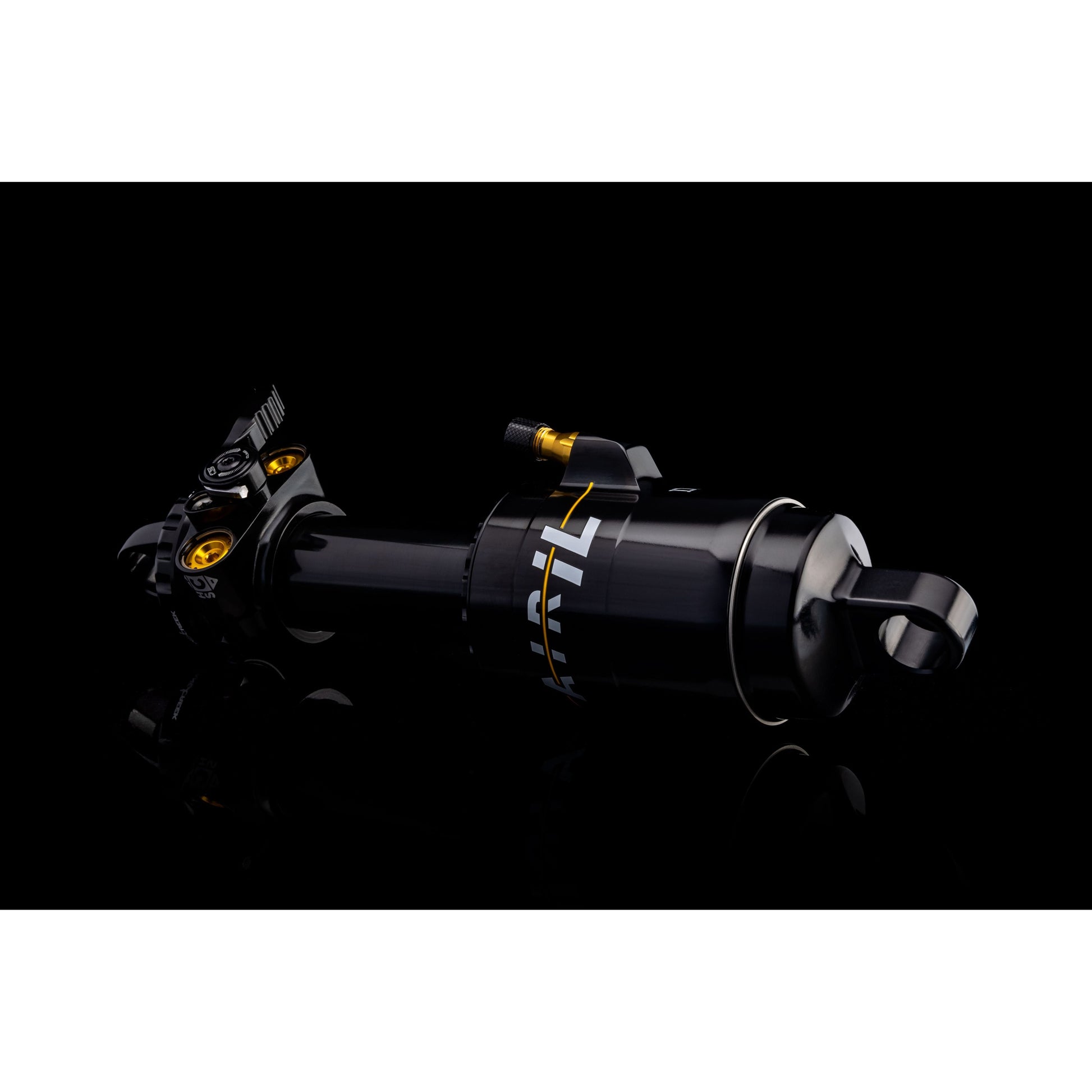

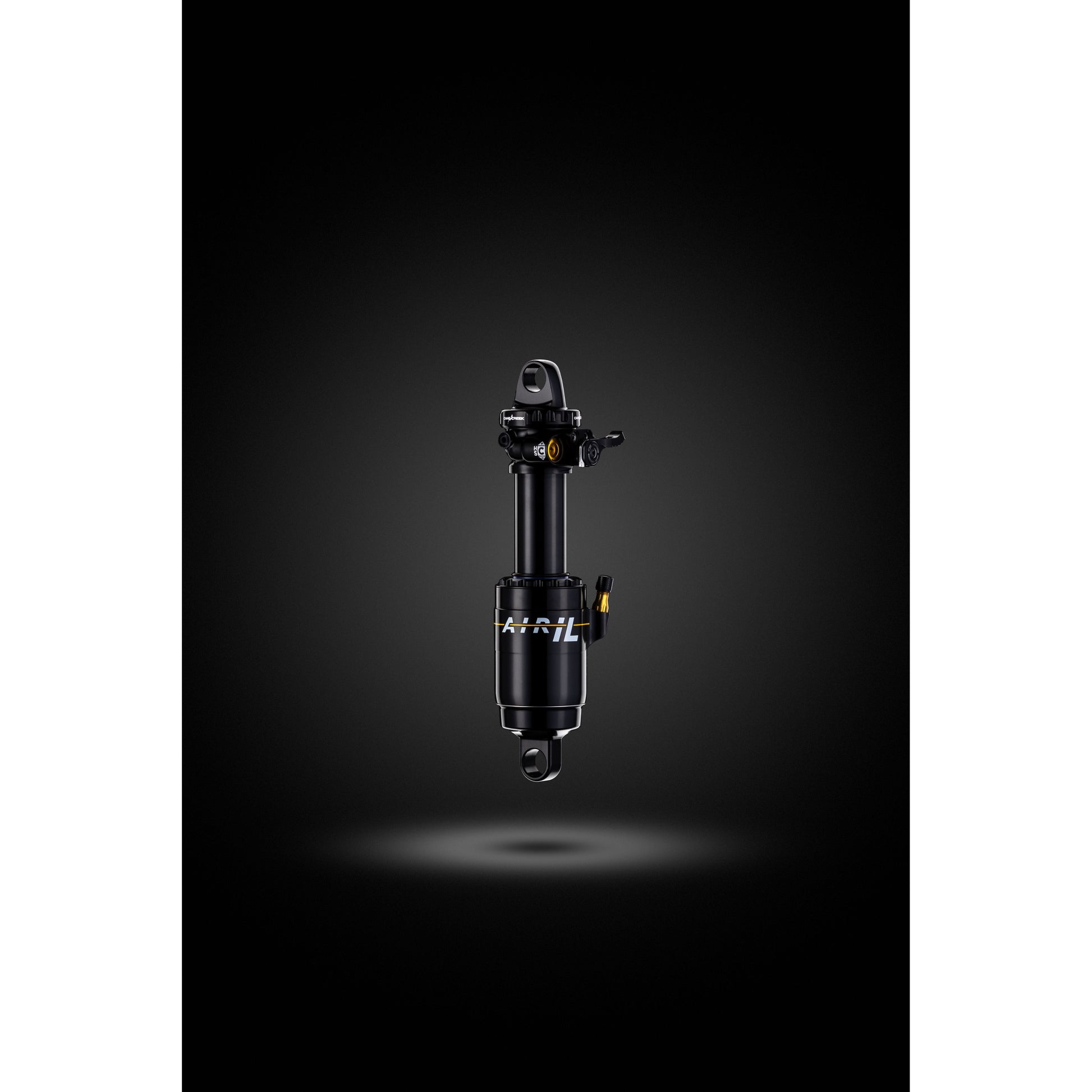

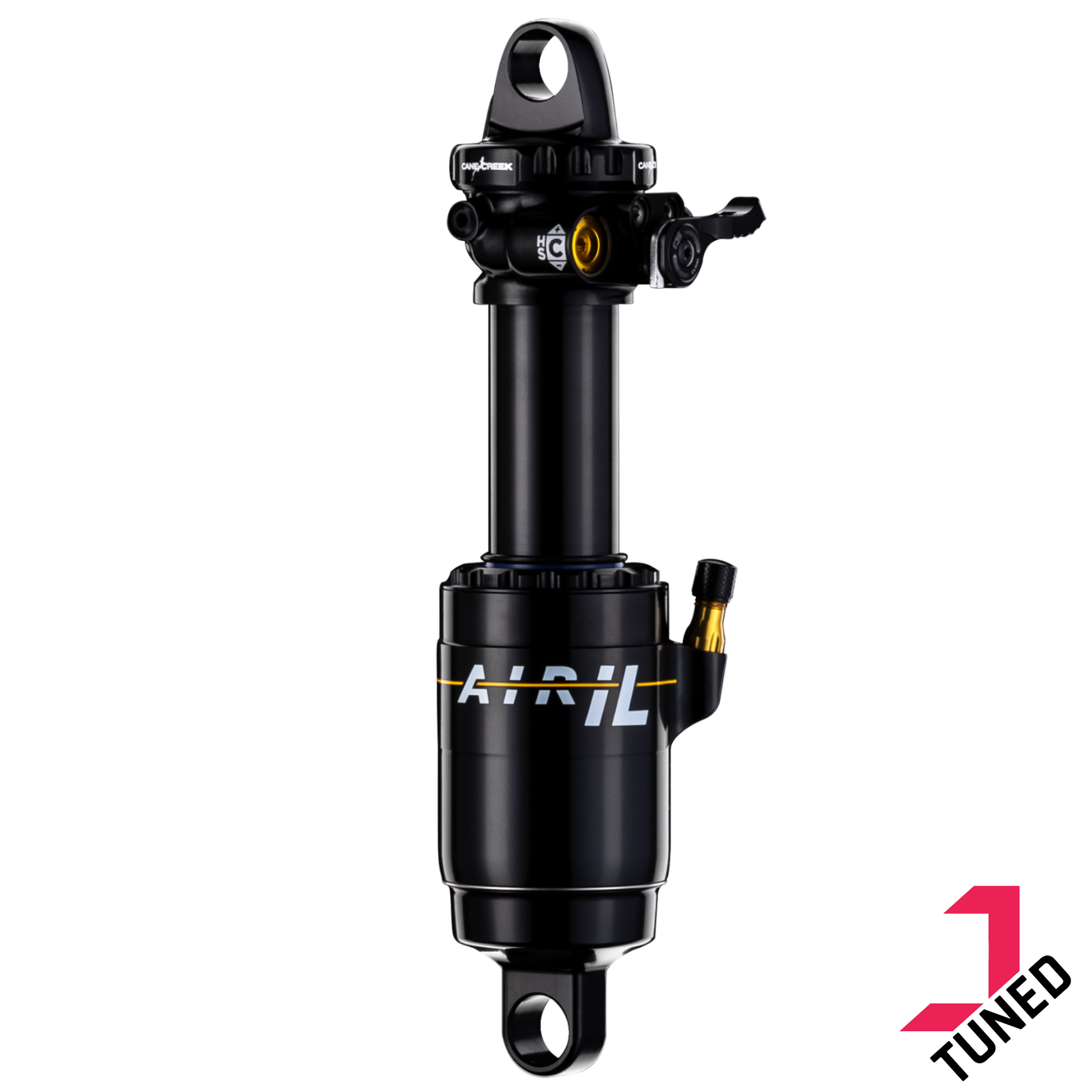

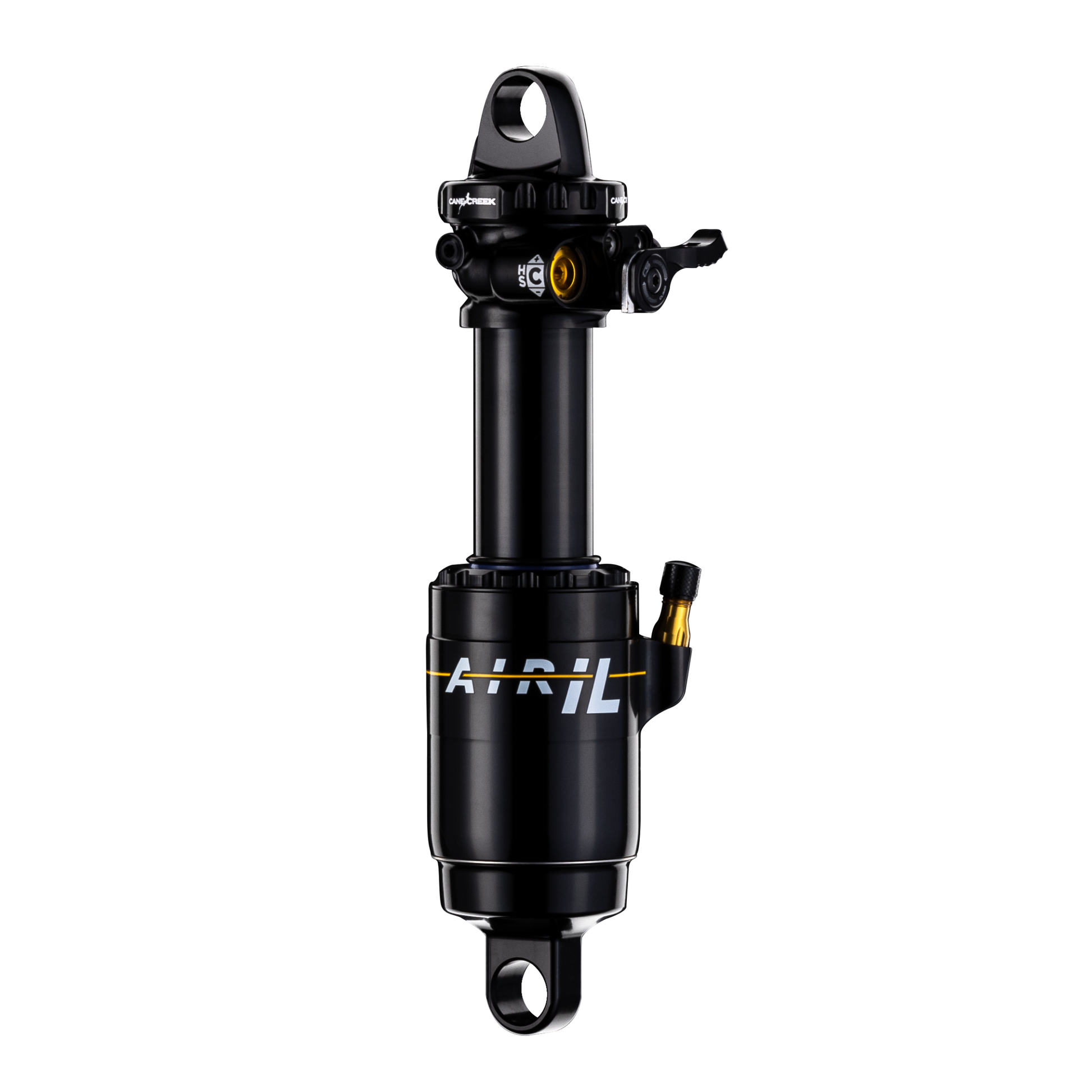

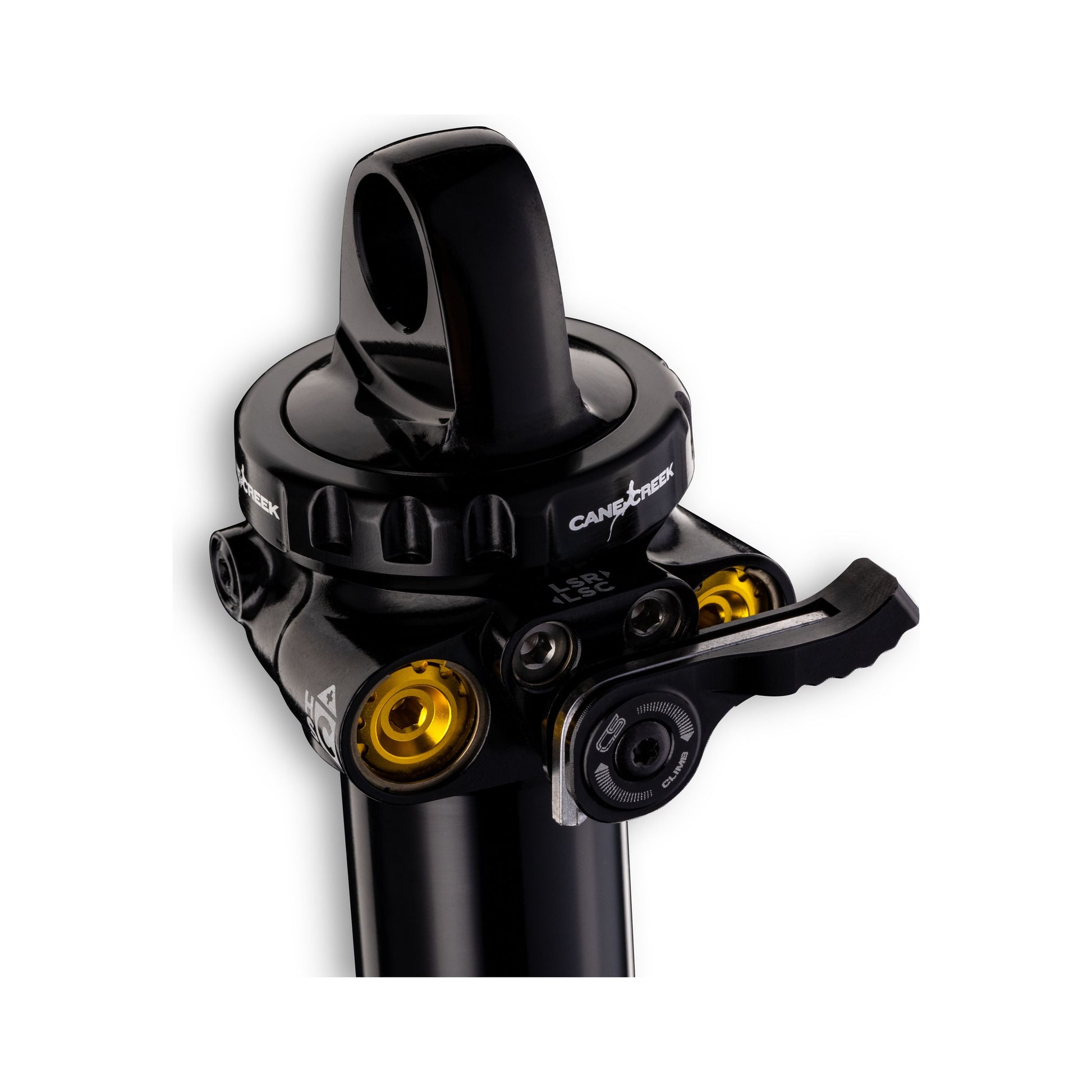

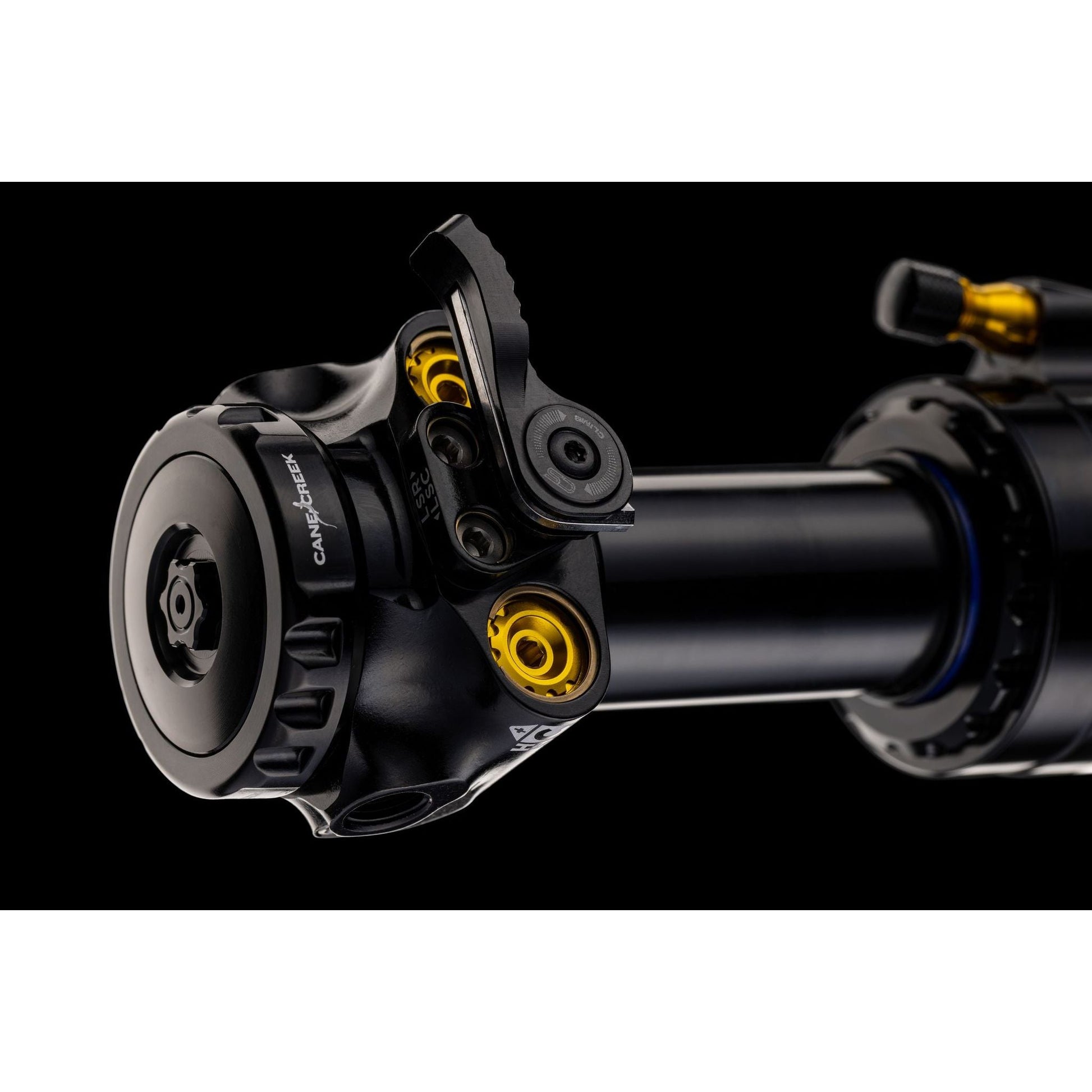

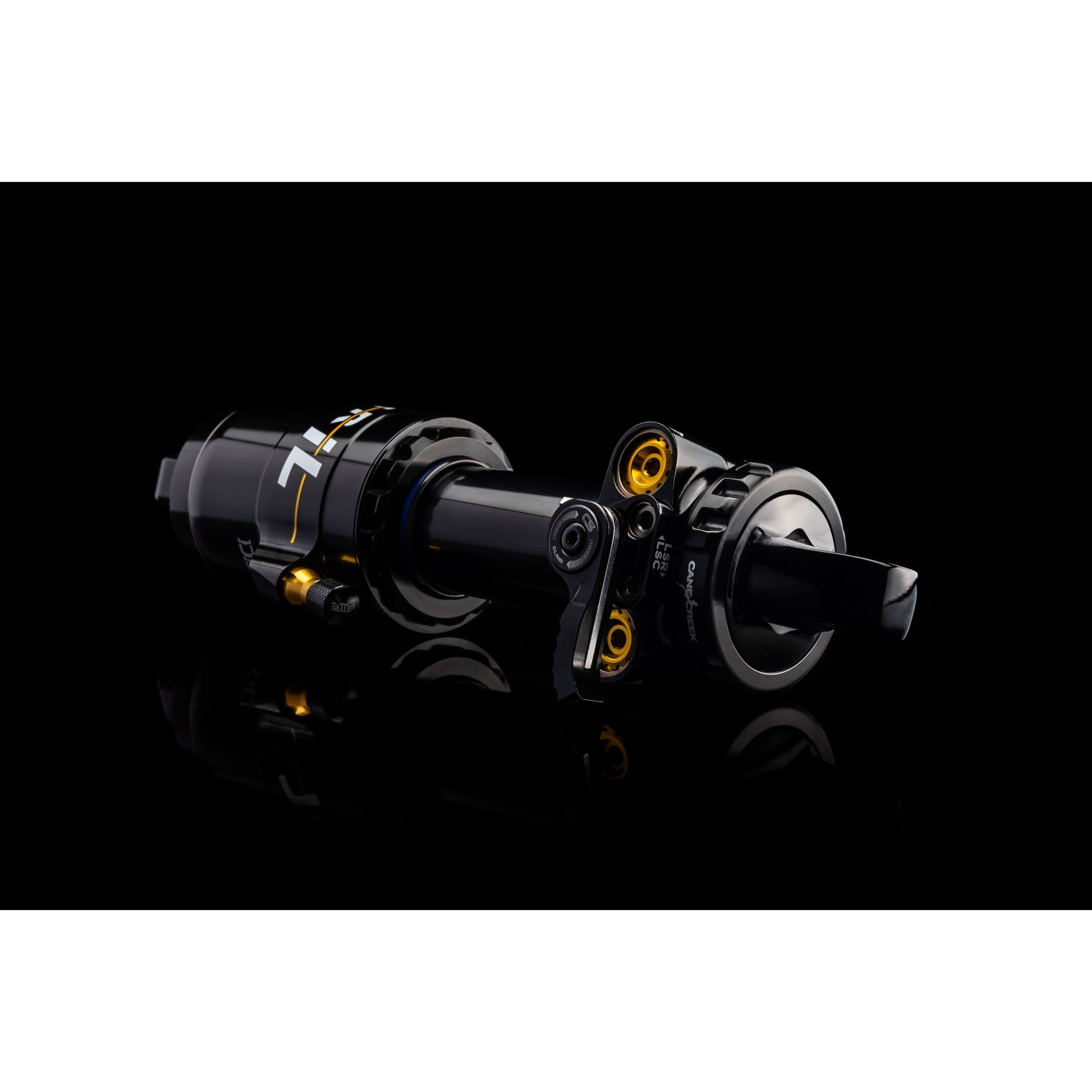

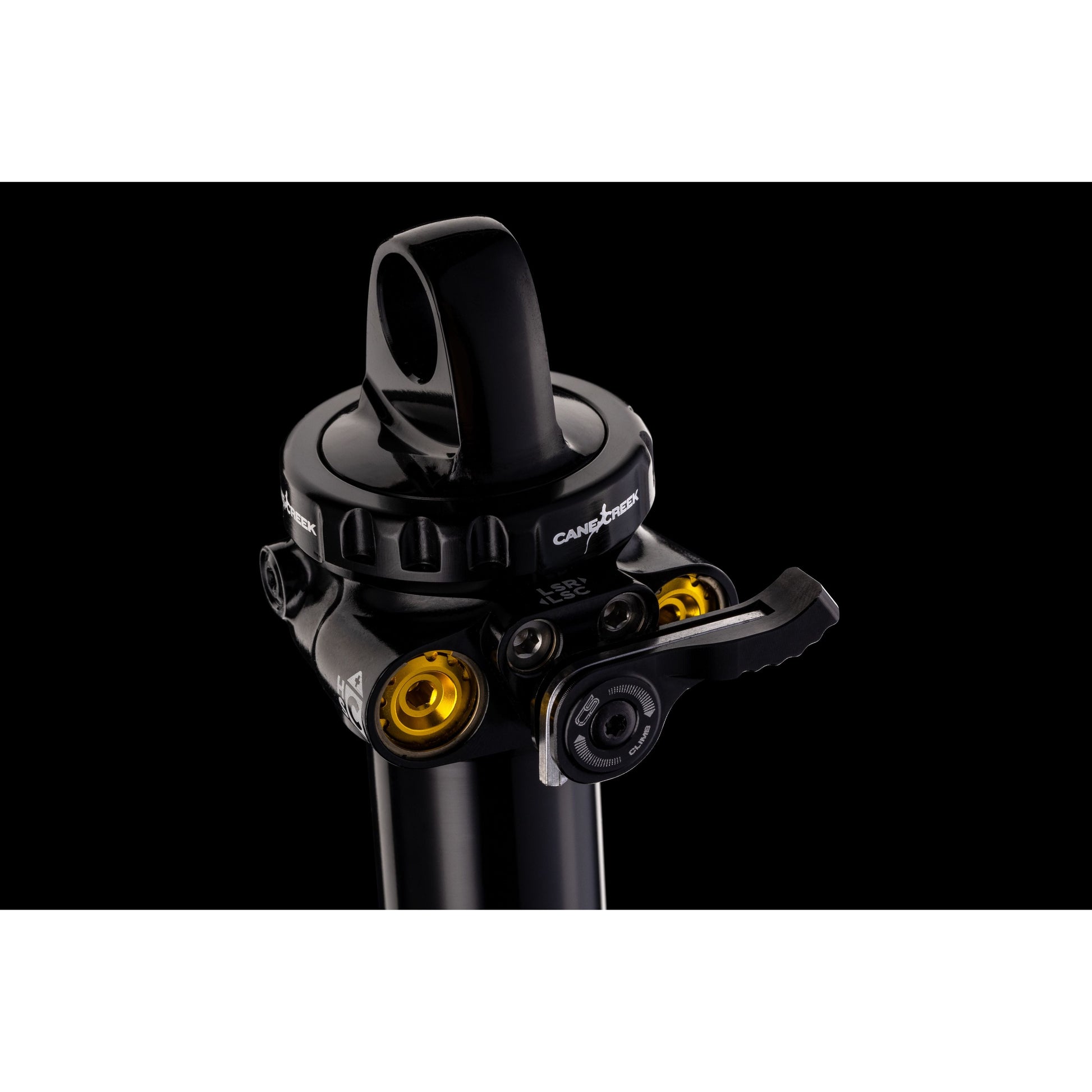

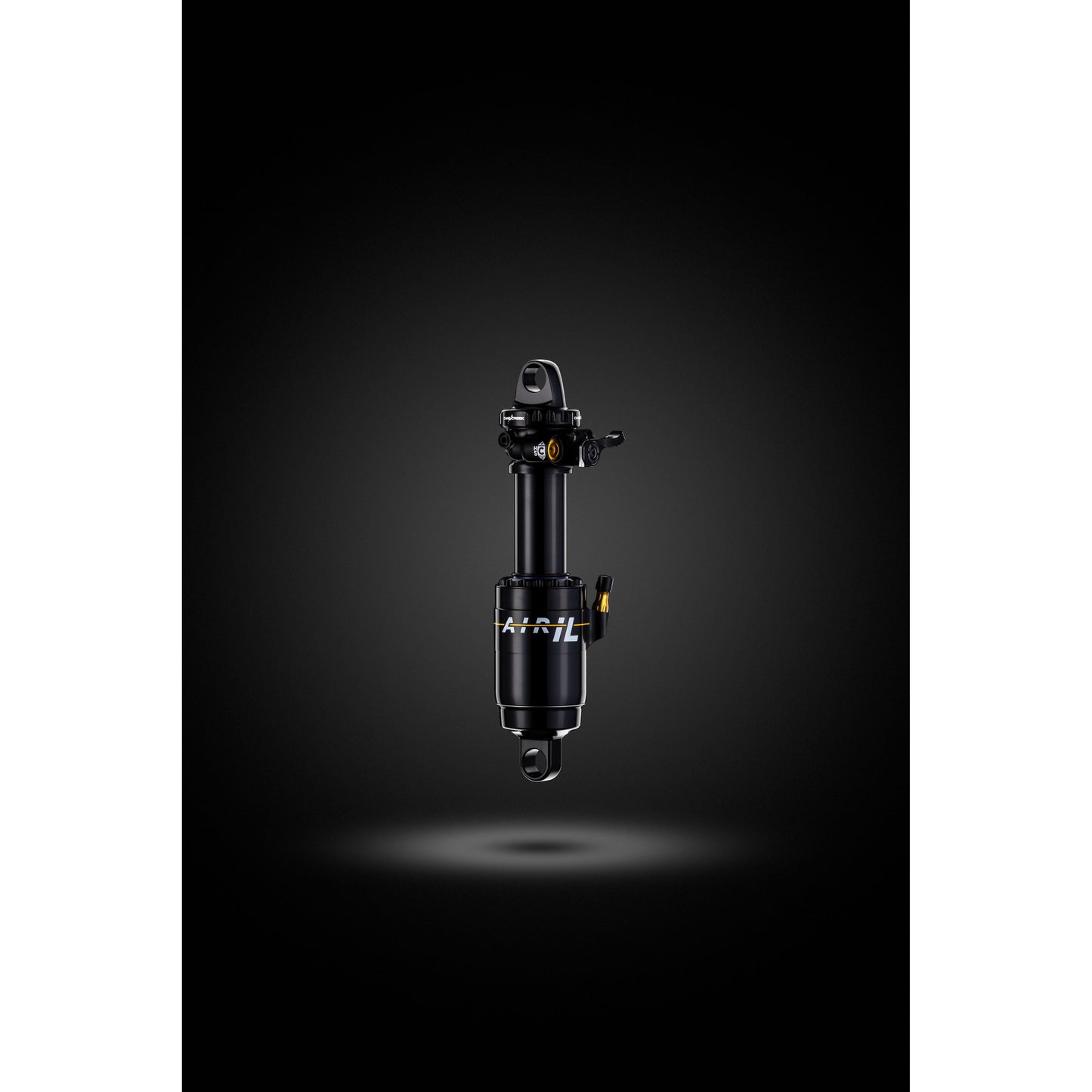

Cane Creek is proud to introduce the new Air IL and Coil IL shocks, packing class leading performance in a smaller and stronger package. IL shocks feature class leading externally adjustable DB Twin Tube technology for the widest range of 4-way damping adjustability on the market. Both AIR IL and Coil IL now feature a thicker inner damper tube for increased strength and a 17mm reduction in overall width on the valve body to increase fitment possibilities on tight frames. AIR IL features a 6mm reduction in the outer diameter of the Air spring to further increase the likelihood of fitment while increasing the max psi pressure up to 350psi (Up from 300psi). Coil IL features added detents on the preload collar allow more precise preload tuning. Hand-assembled and individually dyno-tested in our Western North Carolina facility, IL shocks continue to provide a level of quality, performance and rider benefit that is unmatched.
| Action | Interval |
| Clean and Lubricate | Every Ride |
| Inspect for scratches to stanchions, dents and other signs of wear | Every Ride |
| Check bushing and mounting bolt torque | Every 15hrs use |
| Air Can Service | Every 100hrs of use / 6 months whichever comes first. |
| Full Service | Every 100hrs of use / 12 months whichever comes first. |
