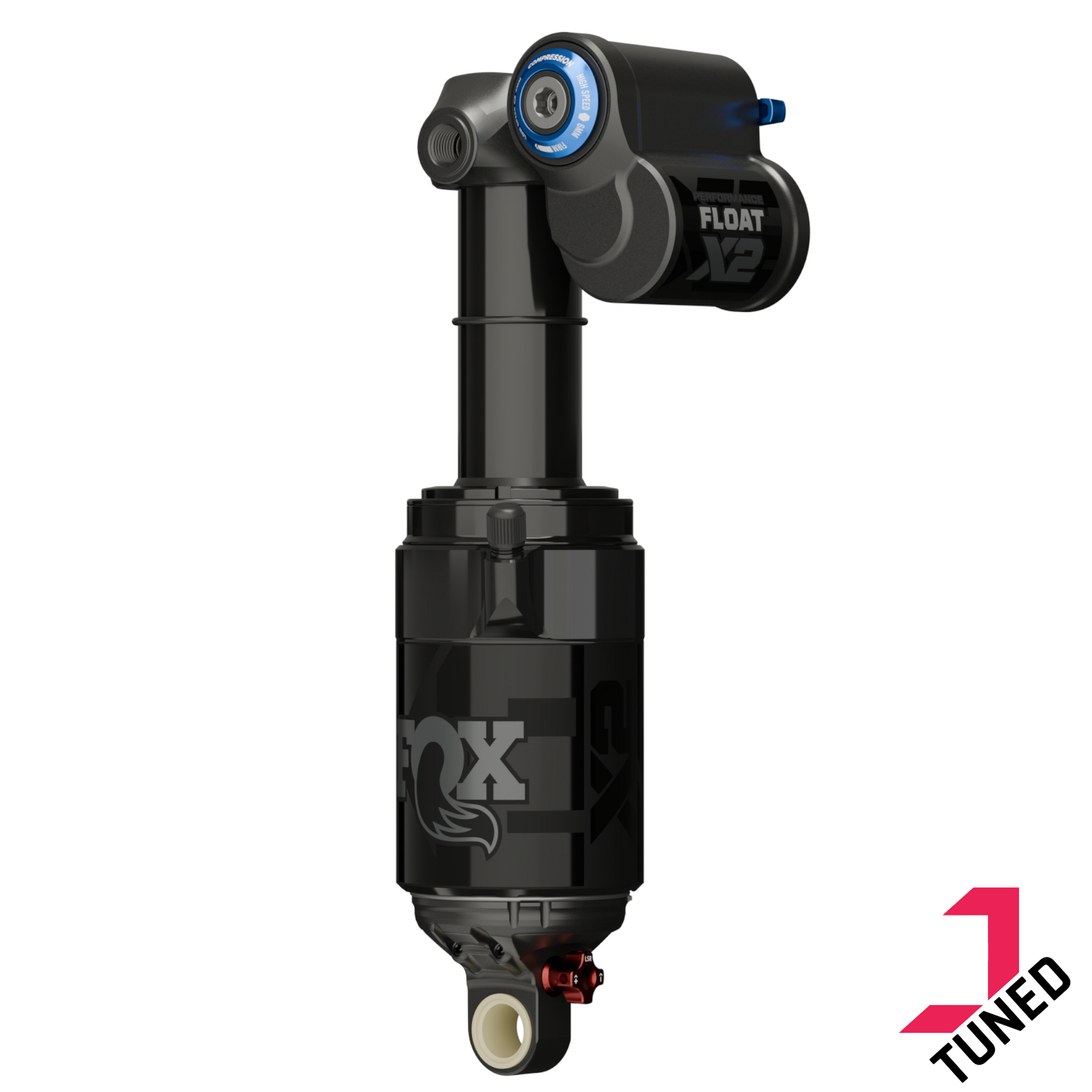

2026 FOX Float X2 Performance Elite 2Pos-Adj Shock

WPS Podium Tuning Kit with Custom Tuning

WPS Podium Tuning Kits - better tunes, better performance!

Precision tuning kit to give you more grip, more control & ultimately, faster segments!

New HSC adjust clamp plate and shim kit to take your damper to the next level!

• WPS found that when testing these dampers in standard spec, the HSC adjustment range was very small. WPS has produced a new HSC adjust clamp plate to increase the adjustment range, helping you to easily find the setup you're after, without changing to another shim stack tune.
• The standard shim stacks available from Fox we found to be lacking in compression damping, in general, and not covering a very wide range of rebound damping through the tune available. So WPS developed a wider range of shim stack tunes to help get you dialled in and release the full potential of these shocks.

We offer a calculated tuning service – using endless data acquired from hours of testing and data logging, we can make calculated and informed decisions on what settings, re-valving and modifications are suitable for you. Your suspension will be thoroughly tested with our dyno facilities and tailored to you and your riding style.

Find Custom Tuning Information Here

Free Mount Kits:
Mounting Hardware supplied when purchased (worth up to £35)

Don't want custom tuning? Order an out the box shock here.

Description

Here's what Fox have to say...

FLOAT X2: The Definitive Gravity Air Shock

The FLOAT X2 sets a new benchmark in gravity air shocks with an all-new monotube design, pressure balancing, and increased tuning capability. The result is improved shock response, more usable tuning range, and greater durability — ideal for riders who demand the highest level of performance. We closed the gap to the award winning Grip X2 fork dampers, giving you more traction, more support and more control.

Specifications

Key Innovations:

• World’s First 4-Way Adjustable Monotube – A revolutionary design that enhances durability and allows full pressure balancing for better shock response and reliability.
• Pressure Balancing – Reduces flow paths that cause cavitation and oil aeration, leading to increased damping consistency and better traction.
• Larger Base Valve & Multi-Valve System – Provides enhanced traction, support, and reduced rider fatigue, mirroring the proven performance of FOX’s GRIP X2 damper.
• Upgraded Main Shaft Diameter – Now 12.7mm (1/2") for increased strength and durability over the previous 9.5mm design.
• 4-Way Adjustability – Independent High-Speed and Low-Speed Compression and Rebound tuning for precise ride feel.
• Trophy Truck-Inspired Ride Quality – Keeps the chassis composed while maintaining maximum traction, just like Fox-equipped off-road race vehicles.
• Close the Performance Gap – The oversized air chamber and reduced friction air seal package creates a more linear, planted ride feel that gravity riders demand, without excess weight.

 FLOAT X2 Tech Specs:

• Adjustability: High/Low-Speed Compression & High/Low-Speed Rebound
• Max Air Spring Pressure: 350 psi
• Air Volume Spacers: 1cc increments
• Starting Weight: 720g (210x55)
