Vorsprung

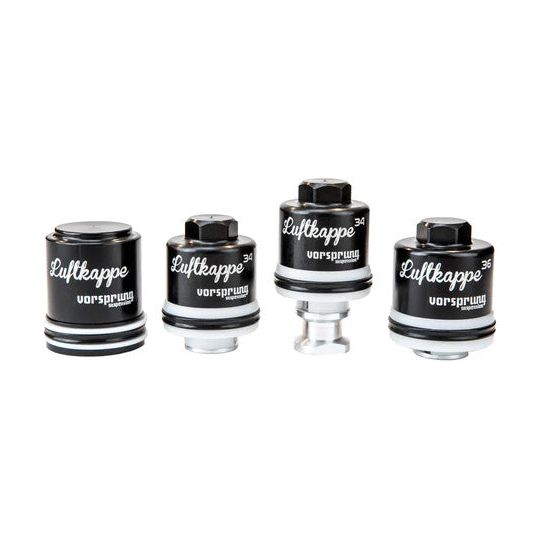

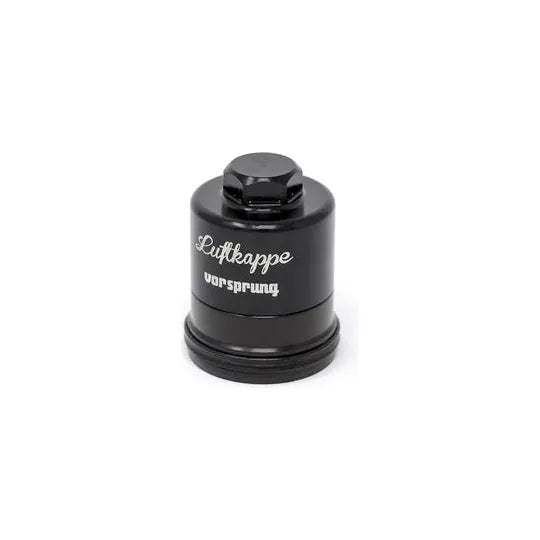

Vorsprung Luftkappe Air Piston Kit

Vorsprung Luftkappe Air Piston Kit

SKU:LK-O-A2

Regular price £114.00
Regular price Sale price £114.00
Sale Sold out
Tax included.
Description

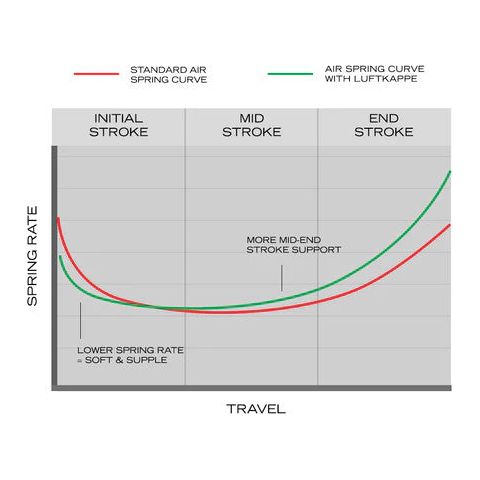

Taking everything Vorsprung learned with the Corset air sleeves, the Luftkappe is a new air piston assembly that enlarges the negative air chamber to reduce the initial spring rate. This lets you run higher air pressure for more support in the middle and end of the stroke with improved sensitivity at the start of the stroke. User-installable and simple to set up, the Luftkappe transforms a good fork into a great fork.
Key Features
  • Coil-like feel without the harsh bottoming of a completely linear spring.
  • Lower initial spring rate increasing sensitivity.
  • Improved mid-stroke support & control.
  • Compatible with stock bottomless tokens.
  • Superior bump compliance and traction.
  • Reduced hand fatigue.
  • Reduces required compression damping.
  • Optional 10mm shaft clamps available for self-install.
Compatibility

 Luftkappe Compatibility Chart

Dual Position Air (DPA) forks of any year

Not Compatible

Rockshox Pike / Revelation < 2014

Not Compatible

Rockshox Pike / Revelation 2014 (Solo Air) all wheel sizes

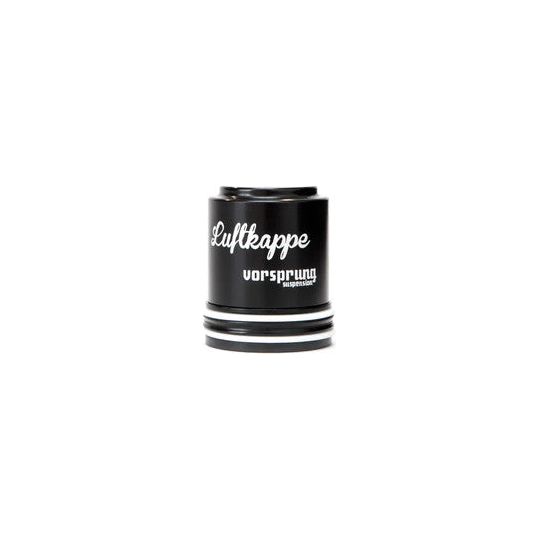

LK - A1

Rockshox Pike / Revelation 2015 (Solo Air) all wheel sizes

LK - A1

Rockshox Pike / Revelation 2016 (Solo Air) all wheel sizes

LK - A1

Rockshox Pike / Revelation 2017 (Solo Air) all wheel sizes

LK - A1

Rockshox Pike / Revelation 2018 - Debonair ONLY - all wheel sizes

LK - A2

Rockshox Pike / Revelation 2019-2022 (Debonair) all wheel sizes

In order to fit a Luftkappe to a MY2019+ Pike / Revelation, you will need to remove the MY2019+ air shaft assembly and retrofit the previous generation Solo Air spring shaft (available separately - not through our web store). Rockshox part numbers are as follows:

For 2019+ Pike/Revelation of ANY wheel size, use Luftkappe A2 variant with:

120mm: 11.4018.026.030 - Air Shaft Solo Air - PIKE B1/Revelation A1 (listed as 120mm 29/27)
130mm: 11.4018.026.031 - Air Shaft Solo Air - PIKE B1/Revelation A1 (listed as 130mm 29/27)
140mm: 11.4018.026.032 - Air Shaft Solo Air - PIKE B1/Revelation A1 (listed as 140mm 29/27)
150mm: 11.4018.026.033 - Air Shaft Solo Air - PIKE B1/ Revelation A1 (listed as 150mm 29/27)
160mm: 11.4018.026.034 - Air Shaft Solo Air - PIKE B1/Revelation A1 (listed as 160mm 29/27)

OR use Luftkappe A1 variant with:

120mm: 11.4018.026.011 - Air Shaft Solo Air - PIKE (listed as 120mm 27.5)
130mm: 11.4018.026.010 - Air Shaft Solo Air - PIKE (listed as 130mm 27.5)
140mm: 11.4018.026.003 - Air Shaft Solo Air - PIKE (listed as 140mm 27.5)
150mm: 11.4018.026.000 - Air Shaft Solo Air - PIKE (listed as 150mm 27.5)
160mm: 11.4018.026.001 - Air Shaft Solo Air - PIKE (listed as 160mm 27.5)

Rockshox Pike / Revelation 2023 LK-PK-23

Rockshox Lyrik / Yari < 2015

Not Compatible

Rockshox Lyrik / Yari 2016 (Solo Air) all wheel sizes

LK - A1

Rockshox Lyrik / Yari 2017 (Solo Air) all wheel sizes

LK - A1

Rockshox Lyrik / Yari 2018 - Solo Air & Debonair - all wheel sizes

LK - A1

Rockshox Lyrik / Yari 2019-2022 (Debonair) all wheel sizes

LK - A1 + Airshaft (Solo Air)

In order to fit a Luftkappe to a MY2019+ fork, you will need to remove the MY2019+ air shaft assembly and retrofit the previous generation Solo Air spring shaft (available separately - not through our web store). Rockshox part numbers are as follows:

11.4018.026.001 - Air Shaft Solo Air - Lyrik/Yari (150mm)
11.4018.026.004 - Air Shaft Solo Air - Lyrik/Yari (160mm)
11.4018.026.002 - Air Shaft Solo Air - Lyrik/Yari (170mm)
11.4018.026.020 - Air Shaft Solo Air - Lyrik B1/Yari (180mm)

Rockshox Lyrik / Yari 2023 LK-LR-23

Rockshox Boxxer (all years)

Not Compatible

Rockshox Zeb 2021

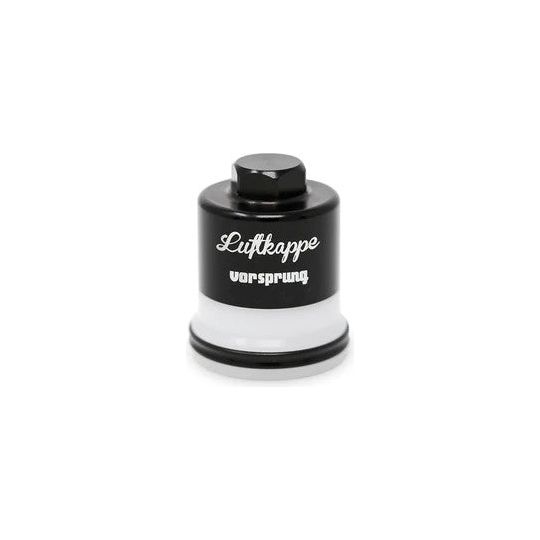

LK-ZEB

Rockshox Zeb 2022 LK-ZEB
Rockshox Zeb 2023 LK-ZEB   Compatible with 2023 forks if using a non-Buttercup air shaft.

Fox Talas forks

Not Compatible

Fox 32 (all years)

Not Compatible

Fox 34 <2016



Not Compatible

Fox 34 2016 (Float NA2) - Performance & Factory Series - 120mm & lower

Need 2018 EVOL airshaft, use LK-34/38EVOL

Fox 34 2016 (Float NA2) - Performance & Factory Series - More than 130mm

LK-34NA (discontinued)

Fox 34 2017 (Float NA2) - Performance & Factory Series - More than 130mm

LK-34NA (discontinued)

Fox 34 2018+ (Float NA2 Evol) - Performance & Factory Series - 27.5" (all travels) and 29" (140mm and lower only)

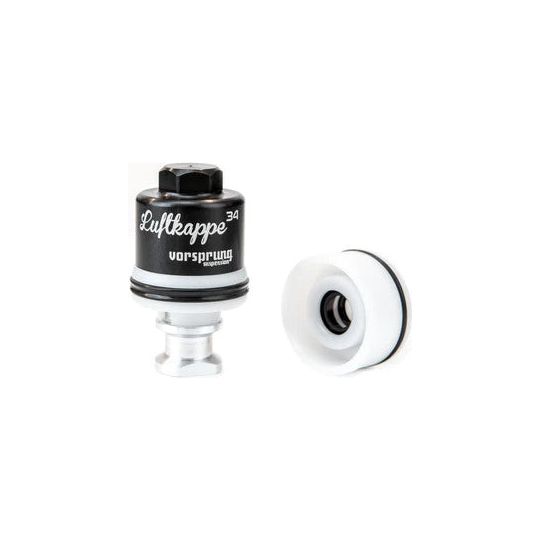

LK-34/38EVOL

Fox 34 2018-2022 (Float NA2 Evol) - Performance & Factory Series - 29" (150mm and higher)

Not Compatible

Fox 34 2022 TBC

Fox 34 Stepcast 2019-2021

LK-34/38EVOL

Fox 34 Stepcast 2022 Not Compatible

Fox 36 <2015

Not Compatible

Fox 36 2015 (Float NA) - Performance & Factory Series

LK-36NA

Fox 36 2016 (Float NA) - Performance & Factory Series

LK-36NA

Fox 36 2017 (Float NA) - Performance & Factory Series

LK-36NA

Fox 36 2018+ (Float NA2 Evol) - Performance & Factory Series

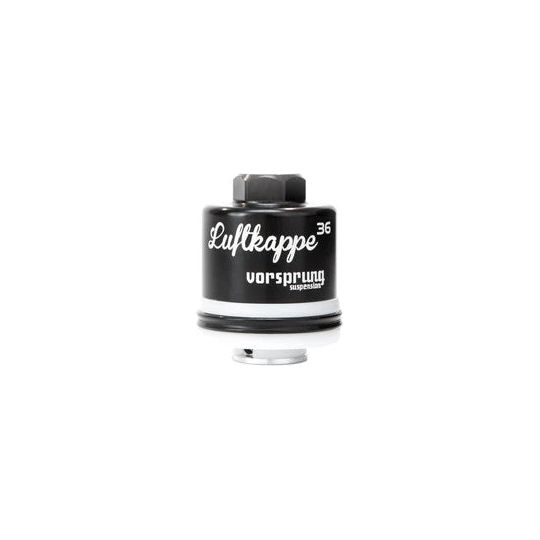

LK-36EVOL

Note: If your MY2018 36 Evol tops out noticeably, you will need to replace your air shaft assembly before purchasing the Luftkappe. For 2019 onwards, Fox have updated this part due to the topout issues that many of the 2018 36 Evol forks had. 34 forks do not have this issue.

Relevant Fox part numbers for the new air shaft assemblies, by travel:

180mm: 820-02-534-KIT
170mm: 820-02-535-KIT
160mm: 820-02-536-KIT
150mm: 820-02-537-KIT
140mm: 820-02-538-KIT
100mm (36 831): 820-02-539-KIT

If your fork does not have noticeable top-out issues, you don't need to replace the shaft before installing the Luftkappe.

Fox 36 (Float NA2 Evol) E-bike Specific [SPD-PED-ELEC]

Note that this fork usually requires the 34 Float NA2 Evol Luftkappe due to its thicker stanchions having a smaller ID.

Exceptions exist - eg Giant e-bikes, which still use the 36 Float NA2 Evol Luftkappe as they are standard 36s despite the e-bike stickers on the fork.

Fox 38 (2021+)

LK-34/38EVOL

Fox 40

Not Compatible

Fox Rhythm Series forks

Not Compatible

Marzocchi Z1

Not Compatible
