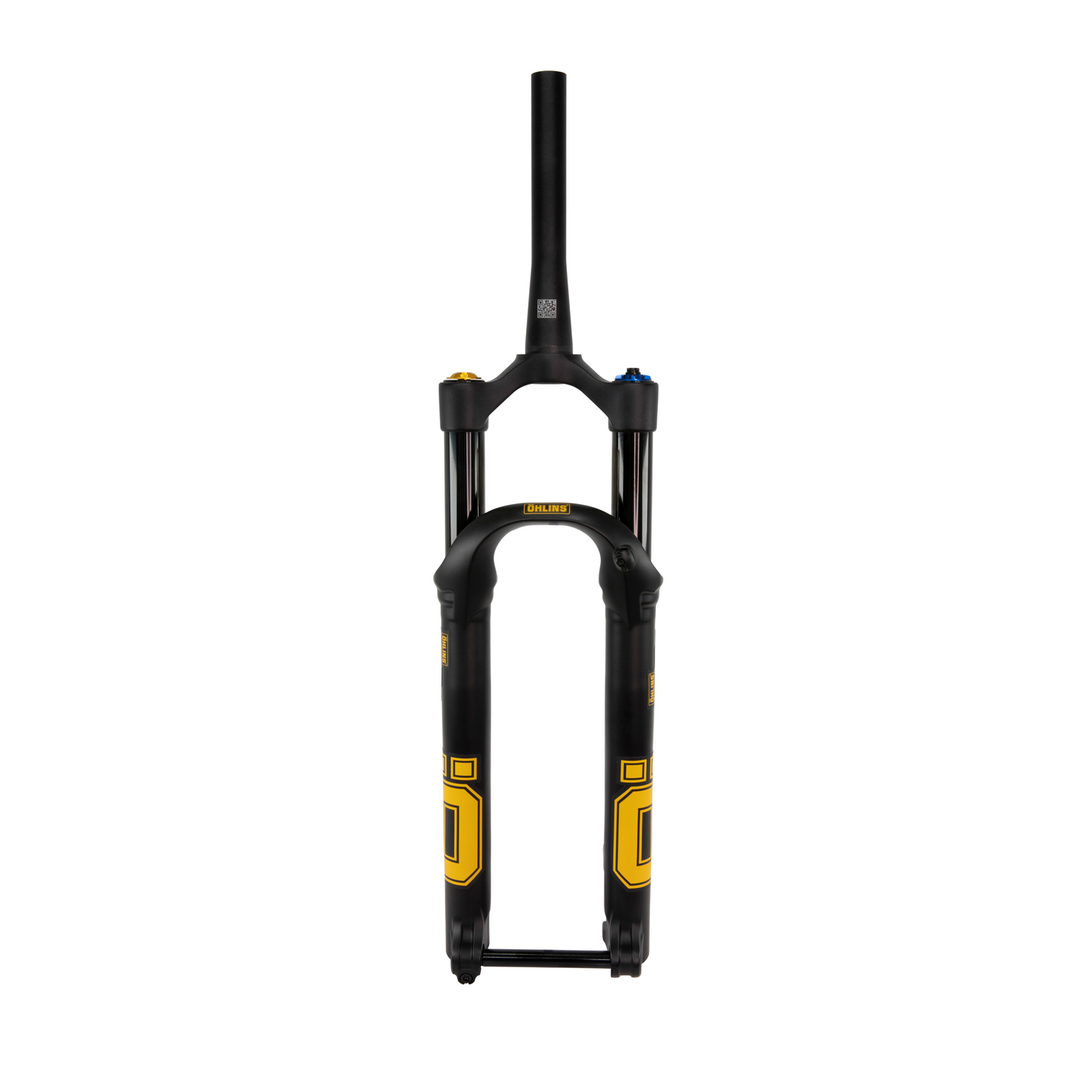

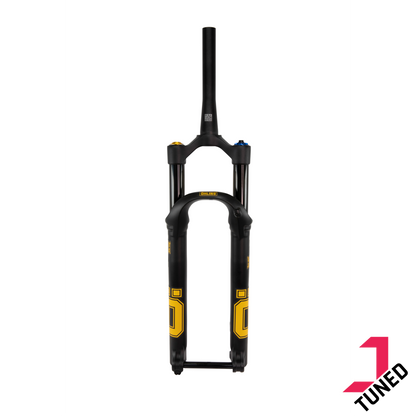

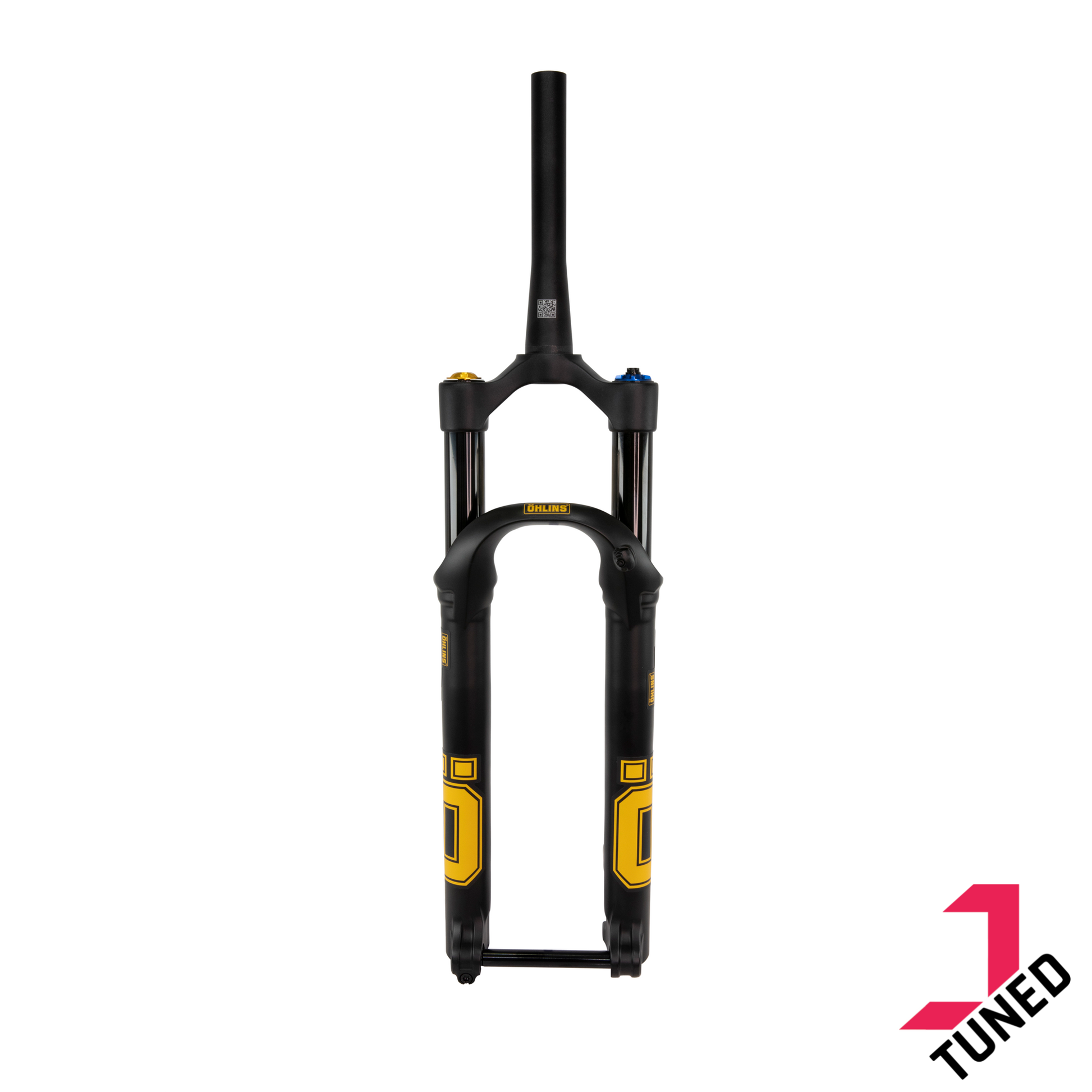

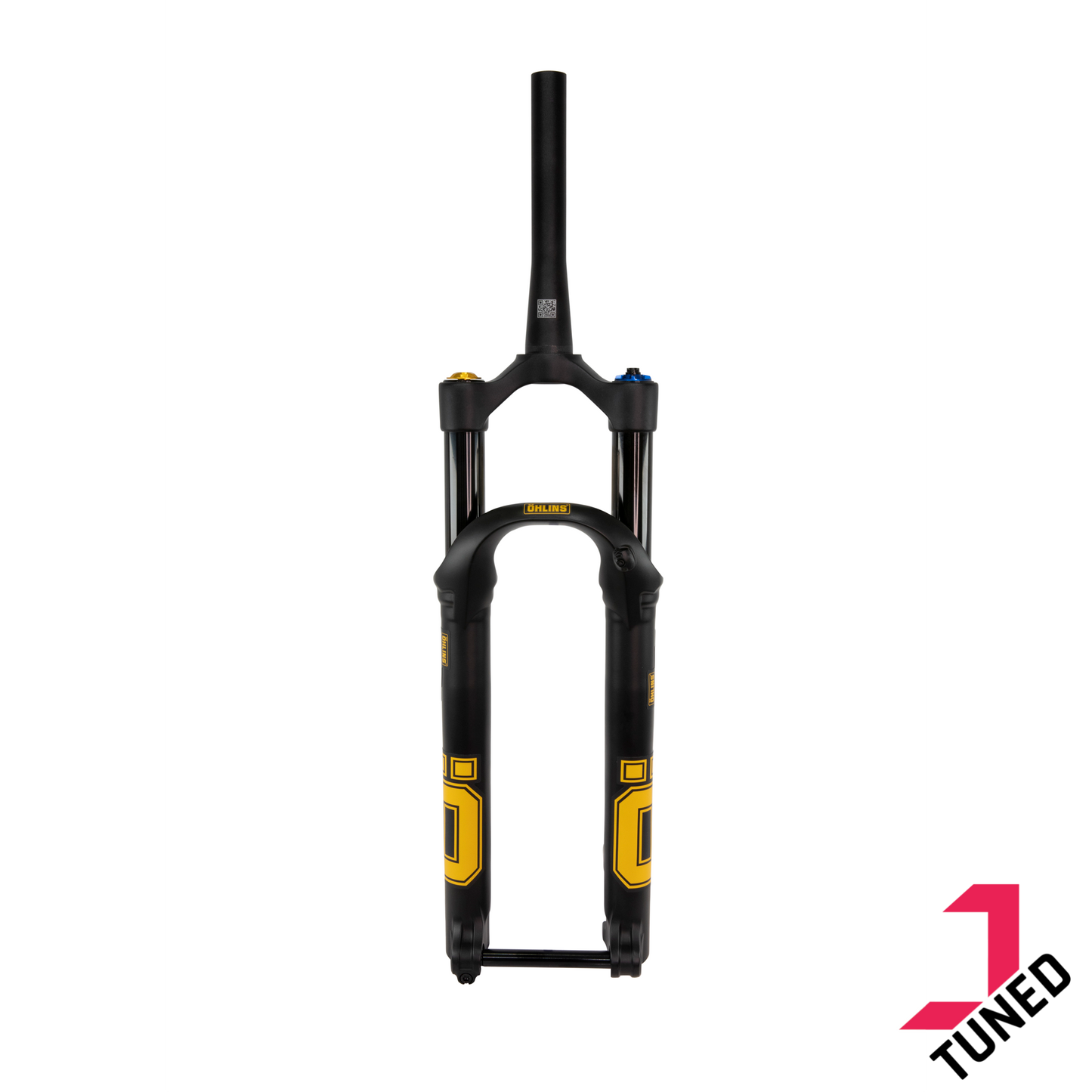

Ohlins AM RXC34m.1 Aluminium Fork

Ohlins AM RXC34m.1 Aluminium Fork

SKU:FGMTB 3410 2350

Regular price £1,252.00
Regular price Sale price £1,252.00
Sale Sold out
Tax included.
Free Tuning!

Custom Tuning included (worth £85)

We offer a calculated tuning service – using endless data acquired from hours of testing and data logging, we can make calculated and informed decisions on what settings, re-valving and modifications are suitable for you. Your suspension will be thoroughly tested with our dyno facilities and tailored to you and your riding style.

Find Custom Tuning Info Here

  • Lightweight OTX14 damper.
  • Highly adjustable with race-proven setting bank to match rider style and bike.
  • Hydraulics optimized for XC.
  • 3 ride modes developed and tested to save seconds on the racetrack.
  • Up to 5 positive volume spacers to adjust progressiveness (depending on travel).
  • Up to 7 negative spacers to adjust initial sensitivity
  • 110/120 mm aluminium version at 1598 g (100 mm version will be available later).
  • Remote connection and manual control options.
  • Remote connection compatible with systems pulling 7.5 mm of wire per click.
  • Adapter available for manual controls and systems pulling 5.5 mm per click.
  • Manual control option adding 12 clicks of LSC in open mode.
  • 12 clicks of rebound

RXC34 m.1 Aluminium Fork

Optimized for speed and precision on technical tracks, the RXC34 m.1 Aluminium fork combines our race-proven technologies and innovations developed specifically for XC.

Unleash the next level of racing performance with our latest innovation in front suspension – the RXC34 m.1 fork. Equipped with several race proven Öhlins technologies – including the low-friction floating axle design and ultra-stiff chassis used in our RXF34 forks – the RXC34 m.1 incorporates an all-new damper and updated air spring to further enhance speed and precision on technical cross-country tracks.

OTX14 XC damper and updated two-chamber air spring.

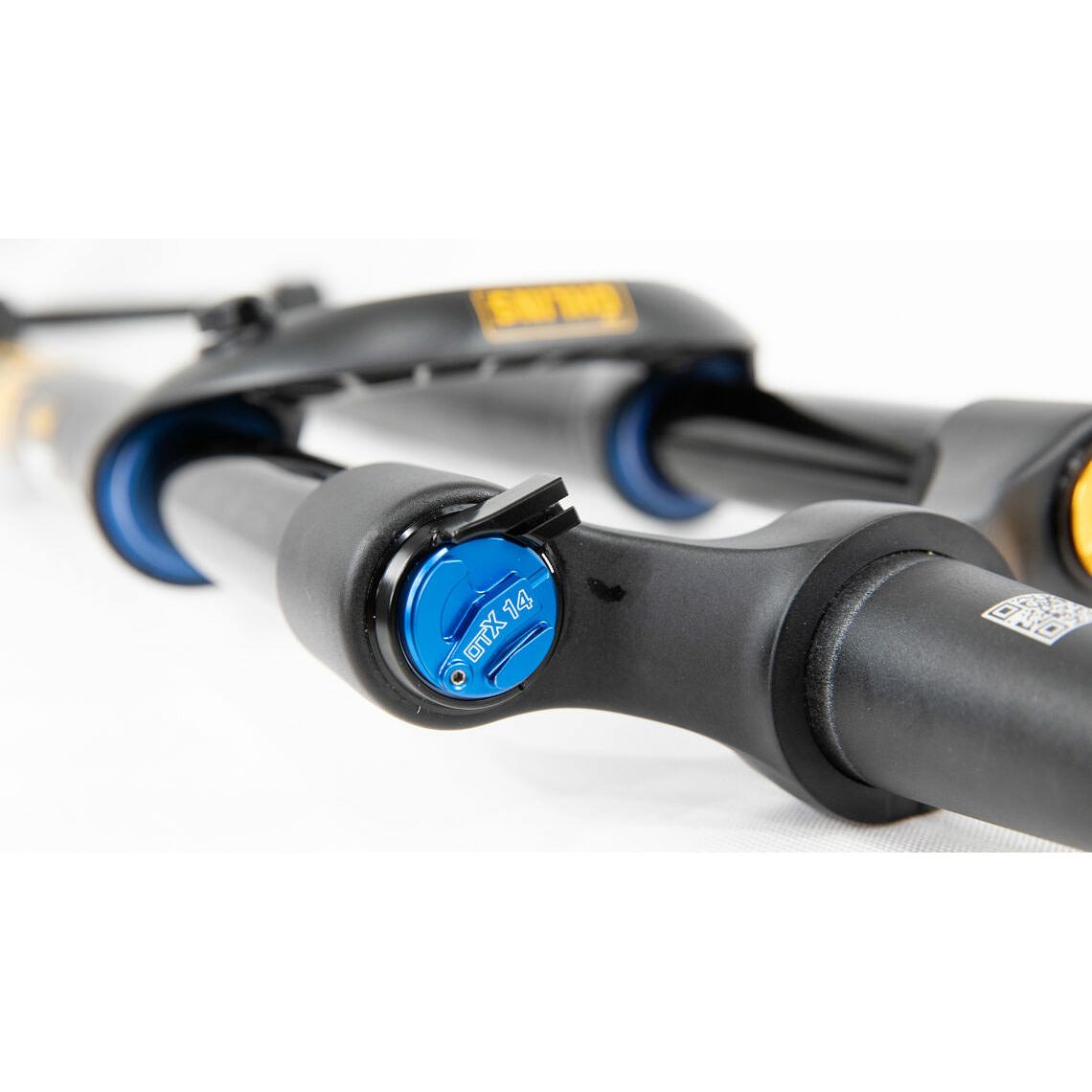

The RXC34 m.1 uses our new XC-optimized OTX14 damper. This slim, lightweight damper is packed with technology. Extensive efforts were made to perfect the low-friction seal head design.
The new OTX14 damper is paired with an updated two-chamber air spring, featuring a large negative air chamber balanced with the damper’s characteristics in the three different ride modes: open, pedal, and lockout. This creates the initial movement required for superior traction while retaining best-in-class, predictable support when pushing hard.
The air spring has a large negative air chamber for increased sensitivity when seated and climbing. This can be tuned with spacers in the piston at one of our MTB service centres. For added versatility, the RXC34 m.1 allows you to interchange the air spring and damper with our RXF34 forks, giving you even more options to fine-tune your setup.

Remote and manual options

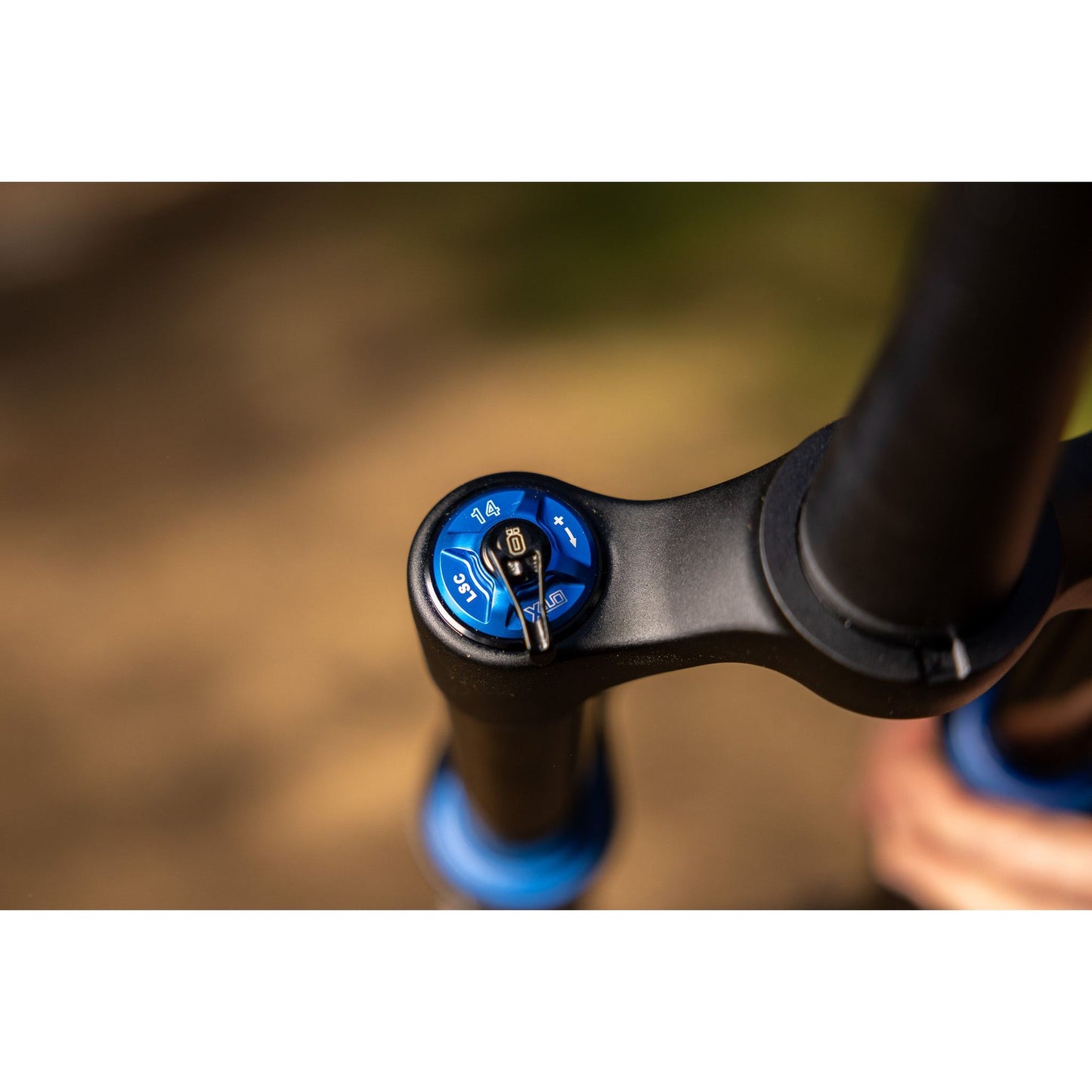

The RXC34 m.1 front fork is available with a remote connection or manual lever. The remote-compatible version has 3 ride modes and 12 clicks of rebound adjustment, while the manual version has 3 ride modes, 12 clicks of rebound, and 12 clicks of low-speed compression in the open mode.
For the remote connection version, we’ve developed a remote with a flexible solution where it is possible to add a dropper lever underneath the remote. It is also highly adjustable – it has three positions for the ride modes and adjusts the front and rear suspension at the same time.
Our remote connection is designed for 7.5 mm of wire pull per position. This means you can use the shock with remote levers from other top brands. And for those seeking even more versatility, our adapter – designed for 5.5 mm of wire pull per click – enables compatibility with the DT Swiss remotes used by Team BMC Racing.

Öhlins XC system

As part of the Öhlins XC suspension system, the RXC34 m.1 boasts a rider-friendly system to adjust air spring progressiveness and stroke. With our race-proven setting bank, you’ll be able to fine-tune the fork to your unique riding style and bike linkage.
Our new XC suspension products have been developed in parallel, with the front forks and rear shocks designed to match each other for optimal balance on the front and rear of the bike. Whether you’re a seasoned pro, weekend warrior, or somewhere in between, the combination of the RXC34 m.1 fork with one of our TXC Air shocks will give you a level of confidence-inspiring performance that’s equally at home on the Olympic stage and your local trails.


Owners Manual

Service Pricing

Service Parts

Ride Mode Remote

Ride Mode Remote Lever Installation Manual

Ohlins TXC1 Air Shock

Ohlins TXC2 Air Shock

Service Intervals
Action Interval
Clean and Lubricate Every Ride
Inspect for scratches to stanchions, dents and other signs of wear Every Ride
Check headset, axle and brake torque Every Ride
Oil Bath Replacement 50hrs use
Wiper Seal Replacement 100hrs use
Full Service Every 100hrs of use / 12 months whichever comes first.
